Frigidaire Gallery 20.0 Cu. Ft. Standard-Depth French Door Refrigerator

Frigidaire Gallery 20 Cu. Ft. Standard-Depth French Door Refrigerator

The GRFN2023AF offers 20 cu. ft. of storage in a 30-inch-wide French-door design. Smudge-Proof® stainless steel, an internal filtered-water dispenser and a built-in freezer ice maker combine a clean exterior with everyday convenience.

Freshness and flexible storage

• CrispSeal® Fresh crispers: Two produce drawers use humidity-management features and a produce keeper to help maintain freshness.
• Adjustable organization: Two adjustable glass shelves, a deli drawer and eight door bins, including six adjustable gallon bins, help organize groceries.
• EvenTemp™ cooling: Managed airflow helps maintain consistent temperatures.
• Filtered water and ice: Dispense water inside the refrigerator; the freezer ice maker produces pyramid-shaped ice.
• Air and water filtration: PureAir® AF-1™ and PurePour™ filtration are included.
• Convenient access: LED lighting in the refrigerator and freezer, automatic-closing doors, digital controls, door-ajar and power-failure alarms.
• ENERGY STAR® certified: Confirmed in current U.S. manufacturer specifications.

Specifications

• Model: GRFN2023AF
• Finish: Smudge-Proof® stainless steel
• Configuration: freestanding, standard-depth French door
• Capacity: 20 cu. ft. total; 13.9 cu. ft. refrigerator; 6.1 cu. ft. freezer

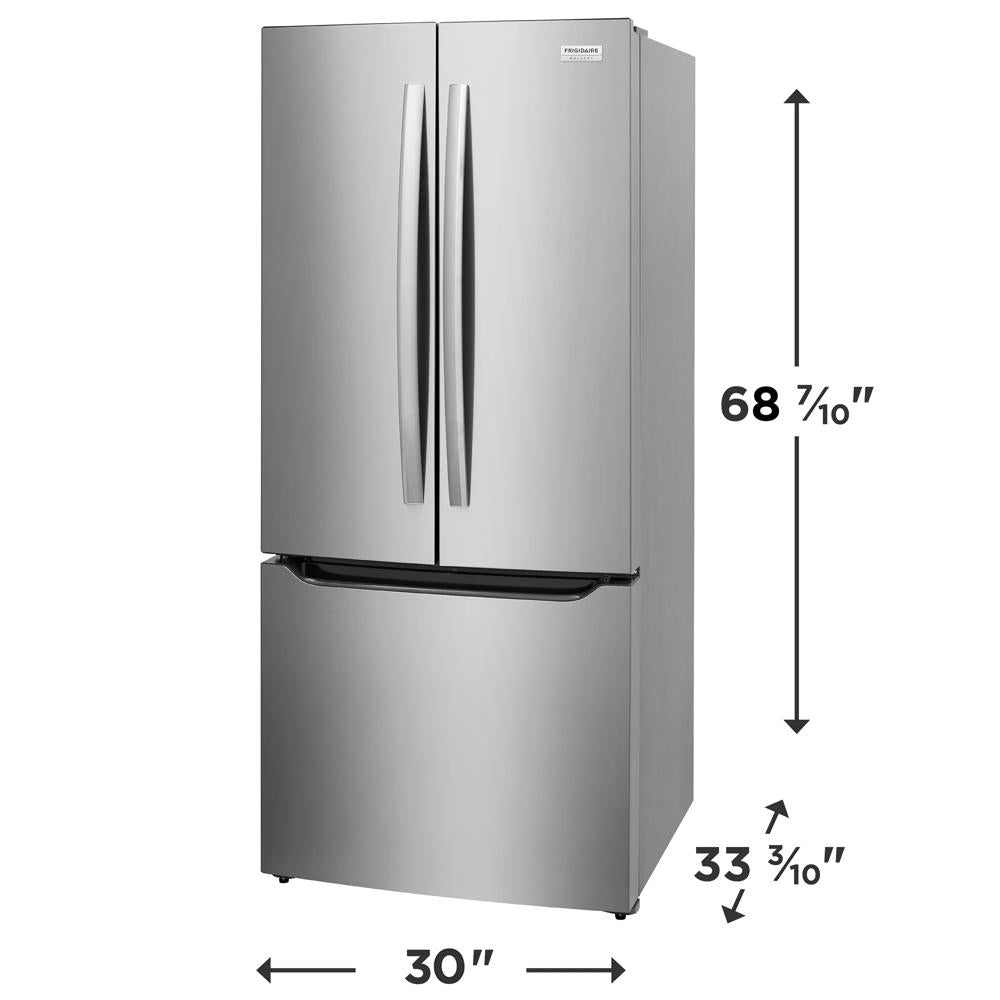

• Overall width: 30 in.; cabinet width: 29 13/16 in.
• Height with hinge: 68 11/16 in.; without hinge: 67 7/8 in.
• Depth including handles: 33 5/16 in.; with doors only: 31 1/16 in.; cabinet only: 26 3/8 in.
• Depth with door open 90°: 42 in.; with freezer drawer open: 43 1/2 in.
• Electrical: dedicated grounded 115V, 60Hz, 15-amp AC outlet

Planning and installation

Allow at least 3/8 in. above and beside the cabinet and 1 in. at the rear for installation and connections. Additional clearance may be needed beside a wall so the doors and drawers can open fully. These dimensions are not a complete installation cutout. A potable cold-water supply is needed for water and ice. Measure your opening and delivery route and review the installation section of the owner's guide before purchase.

Warranty and resources

Frigidaire lists a one-year limited parts-and-labor warranty, subject to its written coverage and exclusions.

• Specifications and dimension drawing
• Refrigerator installation instructions in the complete owner's guide
• Complete owner's guide and warranty
