GE Profile 28.4 Cu. Ft. Quad-Door Fingerprint Resistant Stainless Steel Refrigerator with Dual-Dispense AutoFill Pitcher and Door in Door

GE Profile PAD28BYTFS Quad-Door Refrigerator

The GE Profile PAD28BYTFS offers flexible storage in a standard-depth Quad-Door design, with an internal AutoFill pitcher, Door-in-Door access and a lower-right zone that converts between fresh-food, freezer and beverage-chiller use.

Storage and convenience

• Three separately managed cooling zones: Triple evaporators serve the fresh-food, freezer and convertible compartments.
• Flexible lower-right compartment: Select refrigerator, freezer or beverage-chiller operation to suit your storage needs.

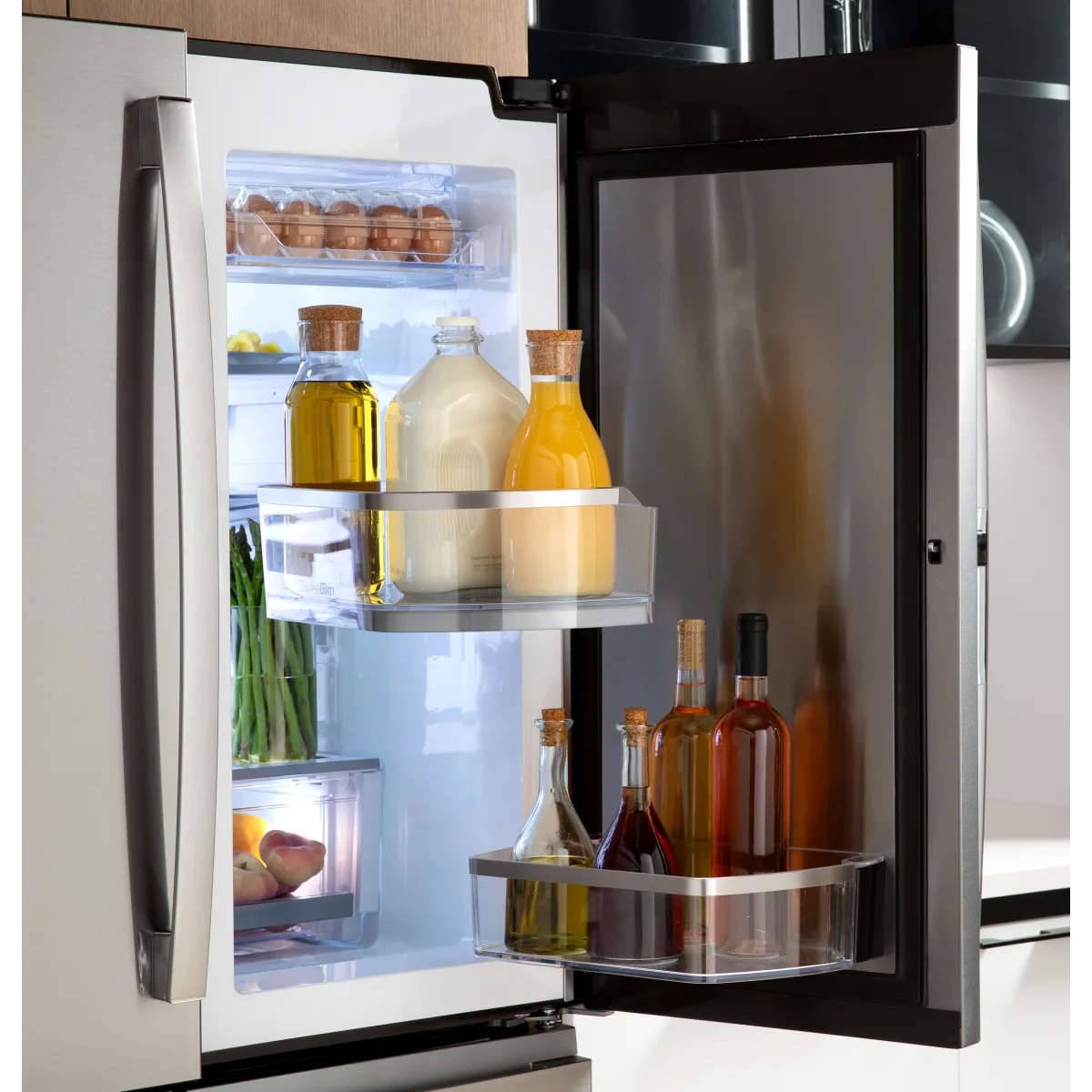

• Door-in-Door access: The upper-right Door-in-Door compartment includes a rotating bin for frequently used items and tall bottles.
• Filtered water inside the door: The 60-ounce Dual-Dispense AutoFill Pitcher automatically refills when docked and provides two pouring options. The pitcher is BPA-free and dishwasher safe.

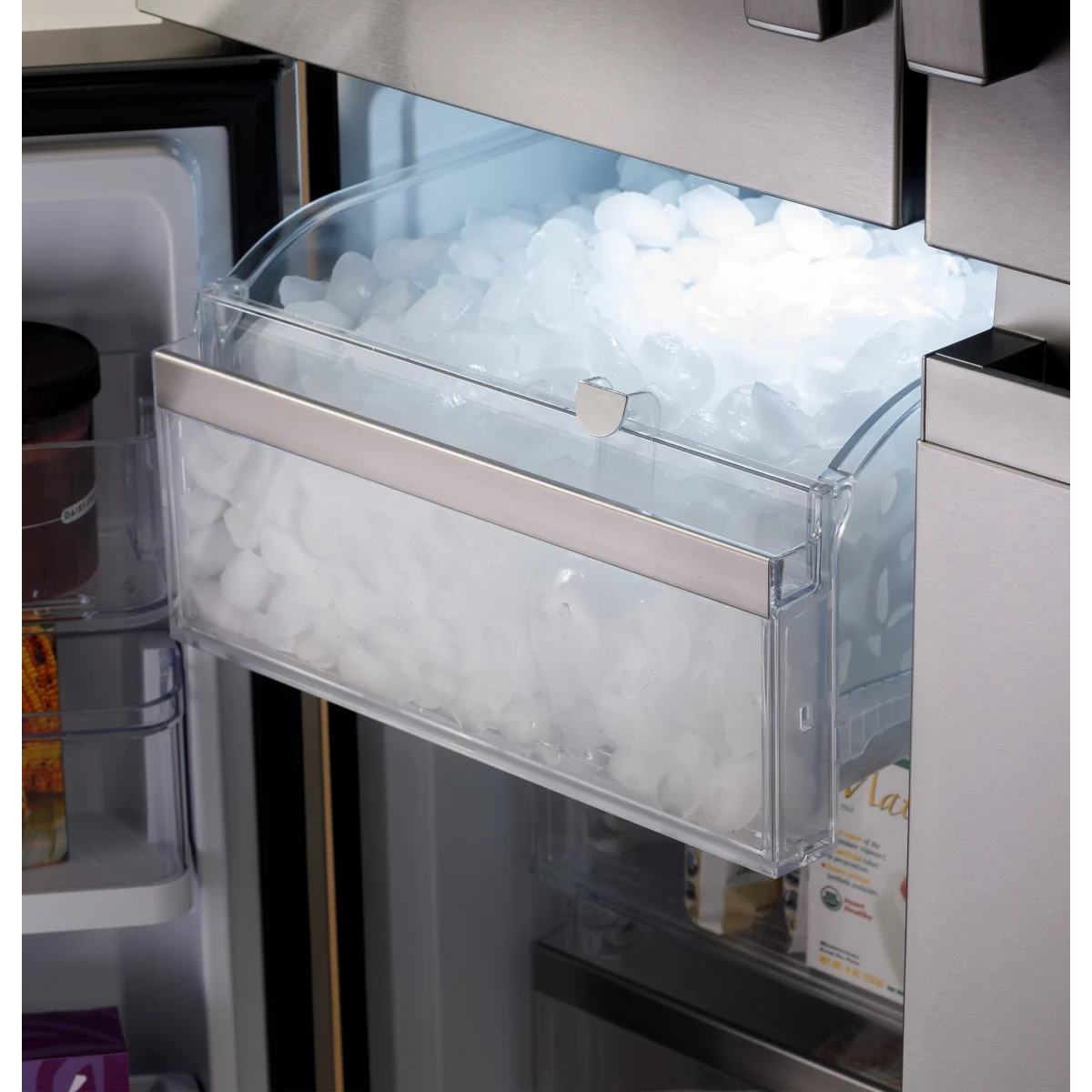

• Factory-installed icemaker: Store up to 12.5 lb of filtered ice in the freezer; an ice scoop is included.
• LED light wall: Rear illumination makes food easier to see throughout the fresh-food compartment.
• Adaptable storage: Split glass shelves, a Quick Space shelf, produce drawers and gallon-size door storage help organize fresh foods. Lower storage drawers and tilt-out door bins keep frozen items accessible.
• Built-in Wi-Fi: Use the SmartHQ app for supported alerts and controls, including temperature adjustments, icemaker on/off, filter status and light-wall brightness.
• Sabbath options: Standard Sabbath Mode is available through the controls. Certified Enhanced Shabbos operation requires the compatible Shabbos Keeper accessory, sold separately.

Specifications

• Model: PAD28BYTFS
• Finish: Fingerprint Resistant Stainless Steel; gray cabinet
• Installation: freestanding, standard depth; nominal 36-inch width class
• Configuration: four hinged doors, with fresh-food storage above and freezer/convertible compartments below
• Electrical rating: 120 V, 60 Hz, 15 A
• Water filter: GE XWFE
• ENERGY STAR qualified; estimated annual electricity use: 699 kWh

Dimensions and installation planning

GE’s exact-model Quick Specs and combined installation manual give different product dimensions. Confirm the actual unit, delivery route, door swing and installation opening with your installer before ordering or building an enclosure. Review both manufacturer documents linked below; no exact fit dimensions are promised here.

Allow at least 1/8 inch at each side, 1 inch above the cabinet/hinge cover and 2 inches behind for ventilation and connections, following the complete instructions. Install indoors on a floor able to support the loaded refrigerator, in a location protected from water and direct sunlight with ambient temperatures from 60°F to 100°F. A properly grounded electrical supply and potable cold-water connection are required for normal use of the icemaker and pitcher.

Manufacturer warranty

GE provides a limited one-year warranty on the appliance and a limited five-year warranty on the sealed refrigerating system for GE Profile models, subject to the written coverage terms and exclusions.

Manufacturer documents

• Exact-model specifications and dimension diagram (PDF)
• Owner’s manual and full refrigerator installation instructions (PDF)
• U.S. EnergyGuide (PDF)
• GE refrigerator limited warranty (PDF)
