Whirlpool 30-inch Electric Smart Range with Air Cooking Technology in Black Stainless

Whirlpool WSES5030SV 30-Inch Electric Smart Range with Air Cooking Technology

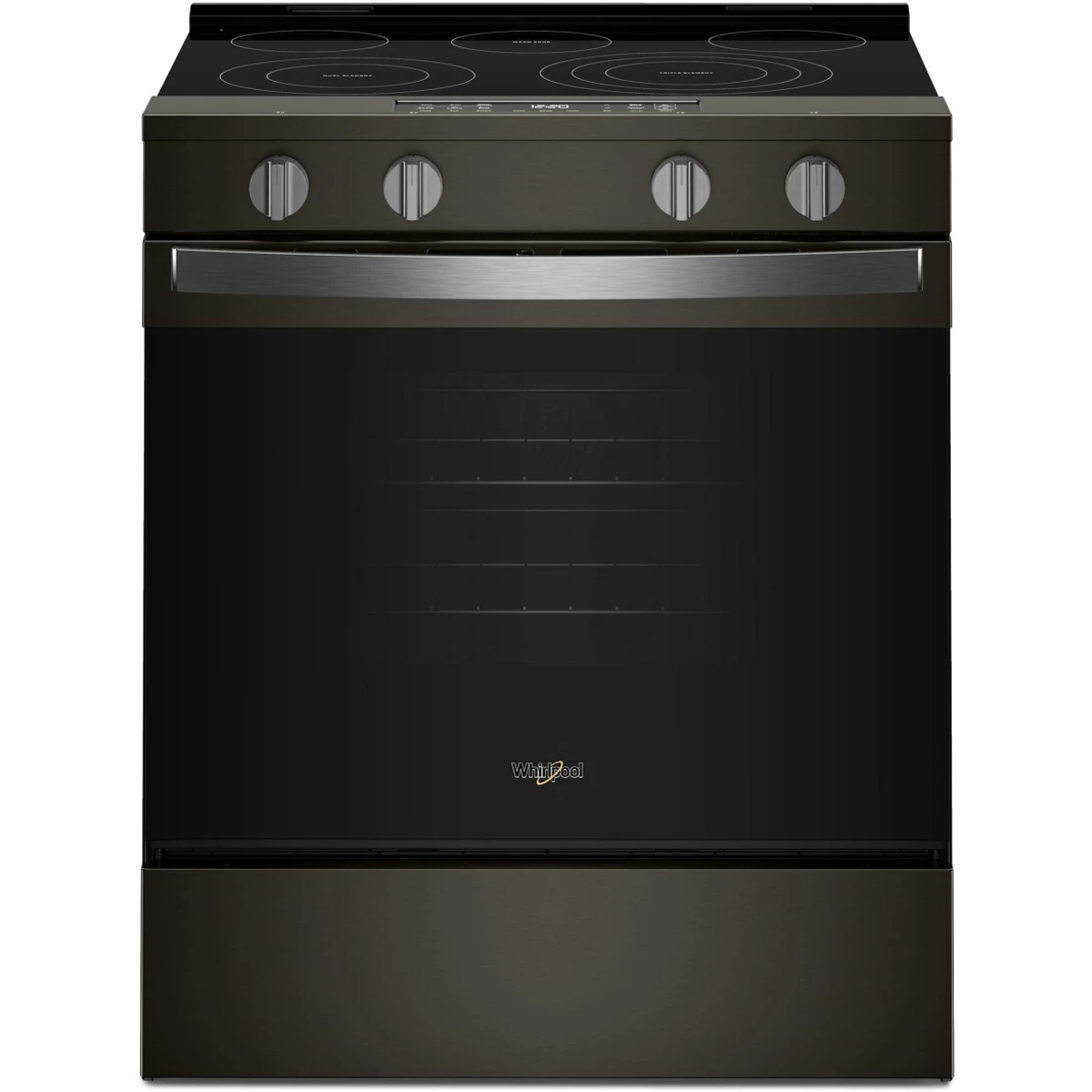

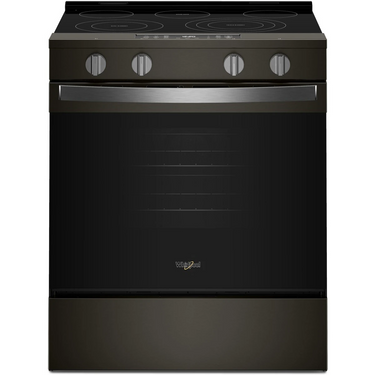

This black stainless slide-in range pairs a fan-convection oven with Air Cooking Technology and an edge-to-edge glass cooktop. Front controls, flexible cooking zones and connected features help you manage everyday meals.

Cooking and Convenience

• No Preheat Air Fry: Start the Air Fry cycle without waiting for a separate preheat. The air-fry basket is sold separately; follow the control guide’s food-specific cooking recommendations.
• Fan-powered Air Cooking: Air Baking circulates heat for multiple-rack cooking, with Air Roast and Air Broil options for different meals. Standard Bake, Broil, Slow Cook, Keep Warm and No Preheat Mode provide additional choices.

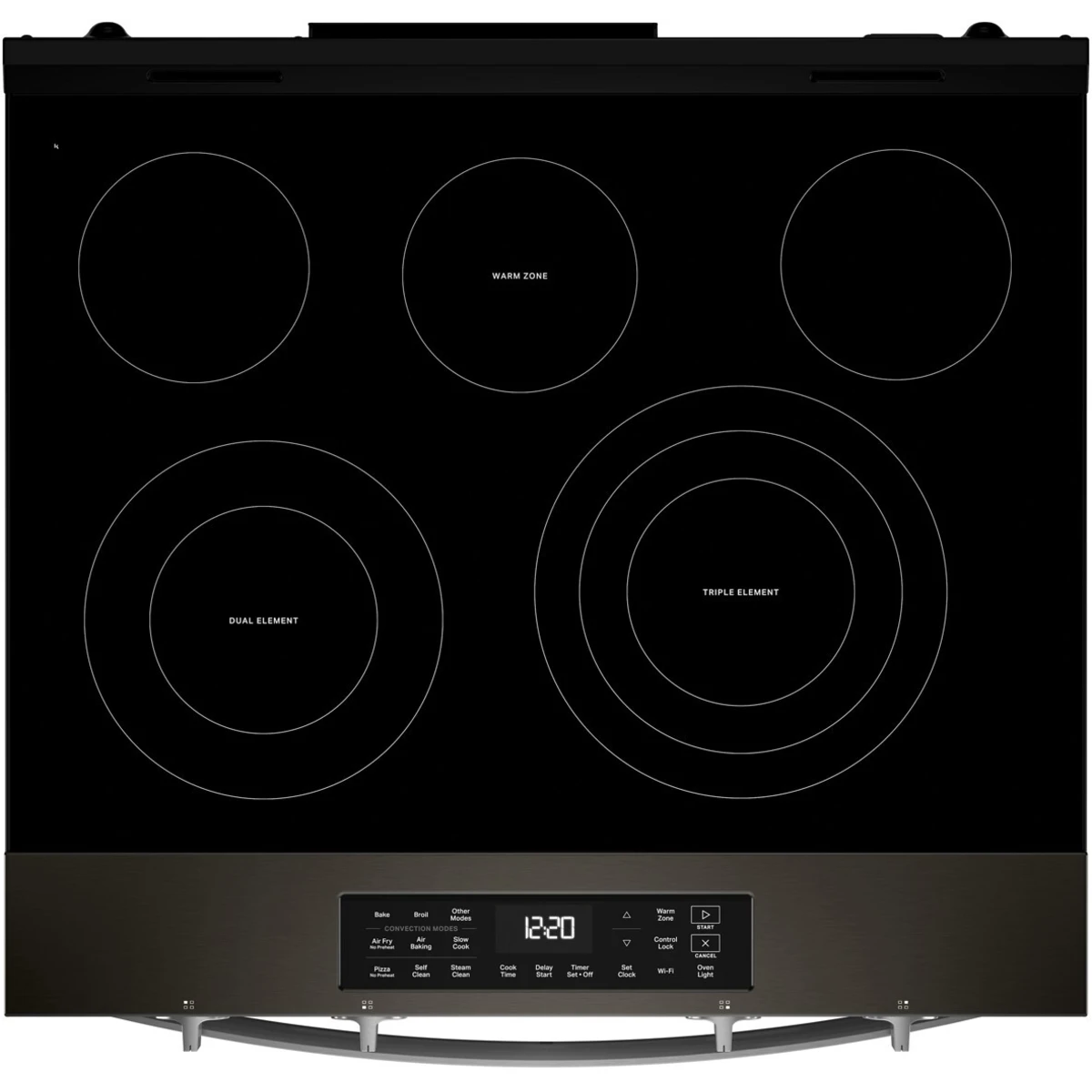

• Flexible five-element cooktop: The left-front 3,000-watt zone adjusts between 6 and 9 inches, while the right-front 3,000-watt triple zone offers 6-, 9- and 12-inch settings. Two 6-inch rear cooking elements provide 1,200 watts each.
• Dedicated Warm Zone: A separate 6-inch, 100-watt center-rear element holds cooked food warm. The oven also offers its own Keep Warm setting.
• Smart controls and updates: Use the Whirlpool app for supported remote functions and feature updates. Air Reheat requires connection and remote enable. Remote features require remote enable, Wi-Fi and the app; feature updates require a connected appliance. Features and availability are subject to change.
• High Speed Preheat: Whirlpool lists preheating in under eight minutes when using the rapid-preheat Bake cycle to 350°F with the cooktop off.
• Two cleaning options: Adjustable high-temperature Self Clean handles heavier soil, while Steam Clean loosens lighter residue for wiping. The hidden bake element leaves a smooth oven floor.

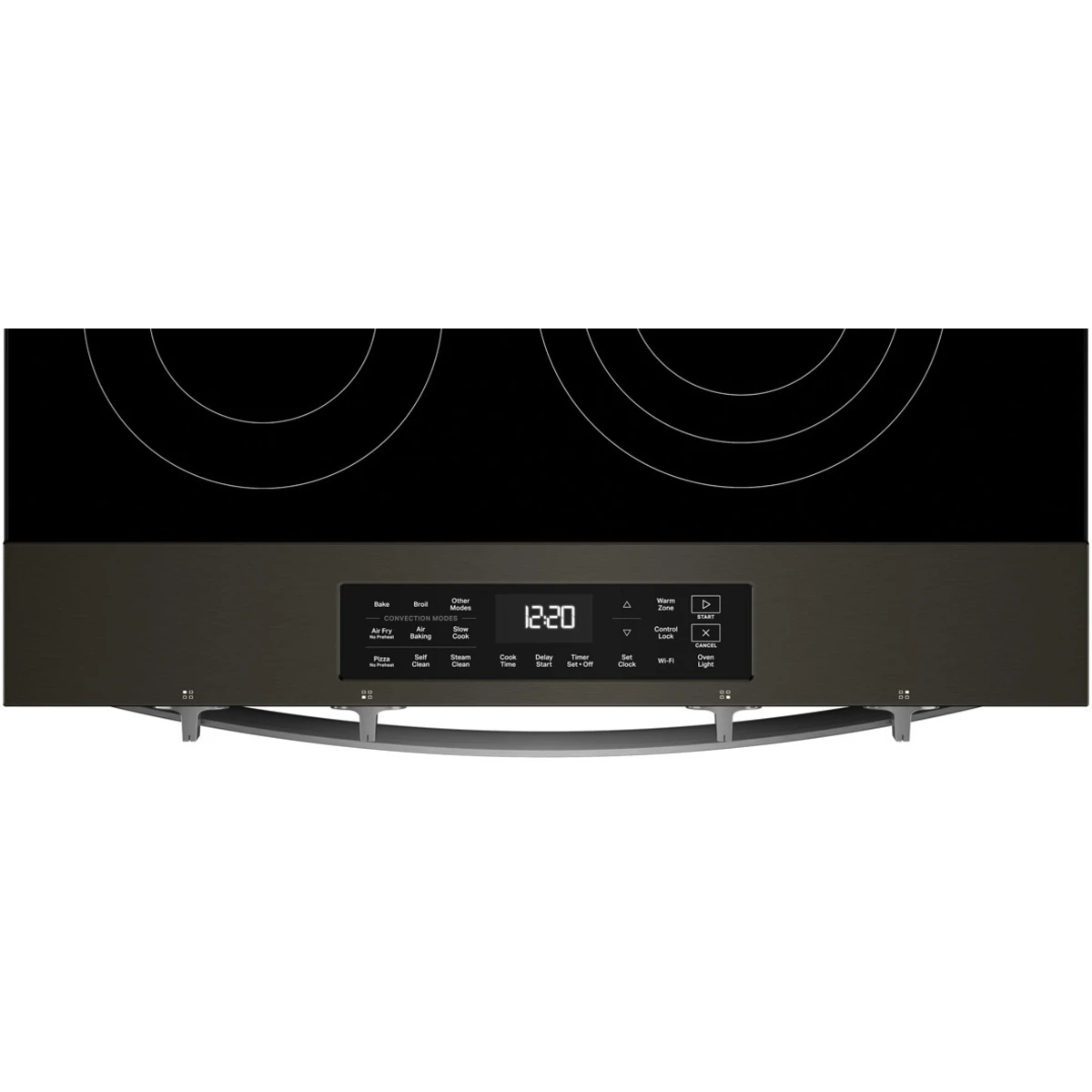

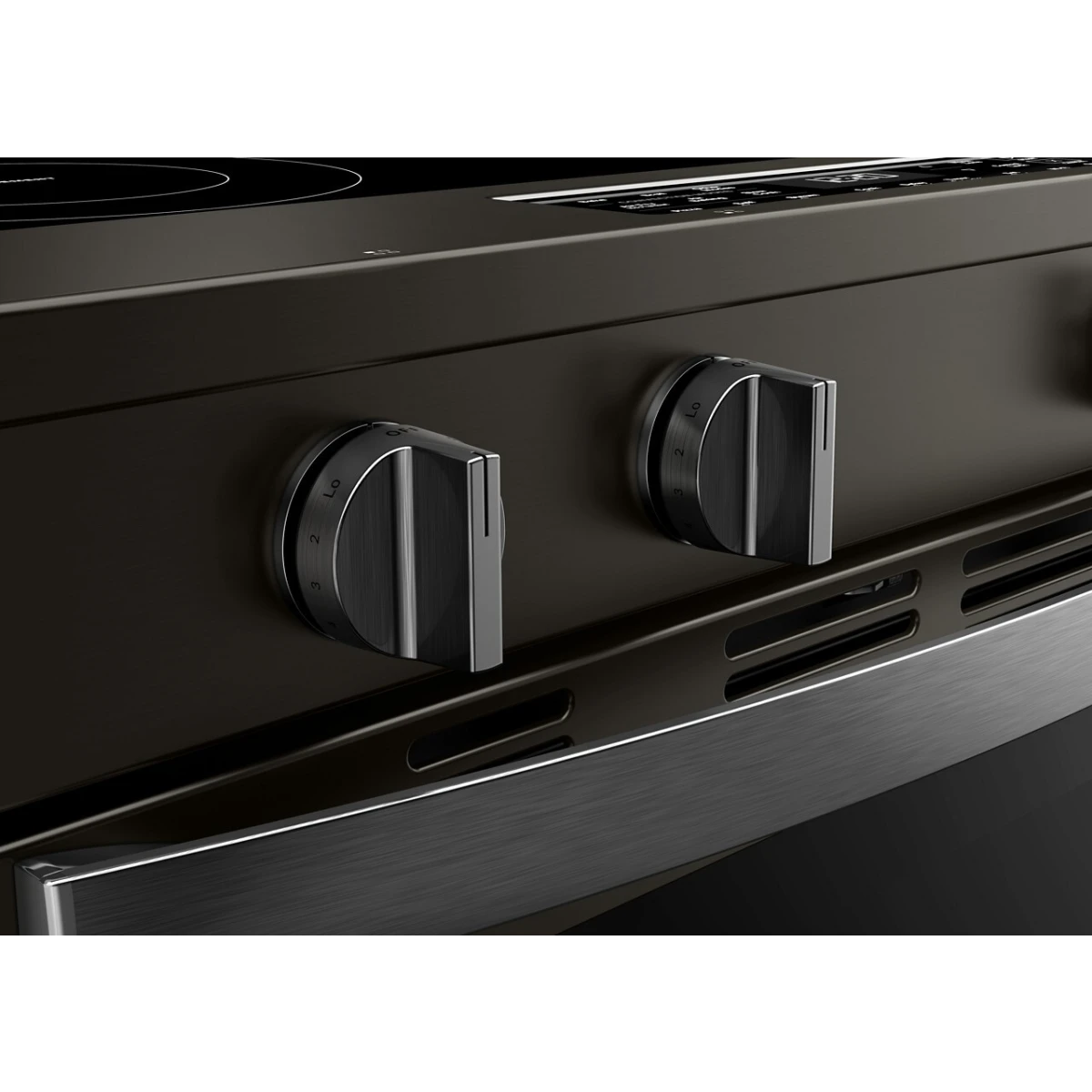

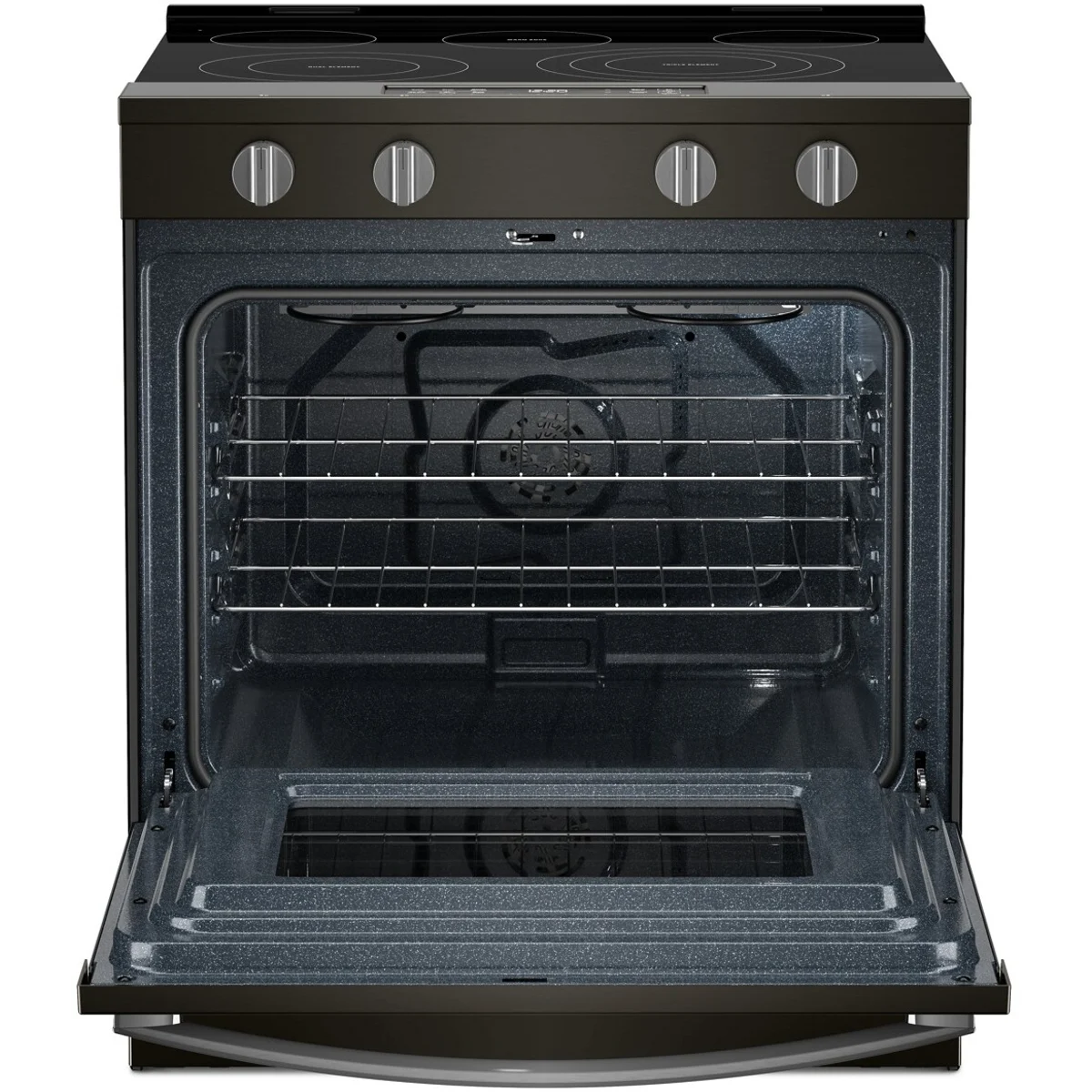

• Everyday convenience: Front cooktop knobs, tap-touch oven controls, Control Lock, Sabbath Mode, hot-surface and element-on indicators, two standard racks with five rack positions, and a lower storage drawer.
• ENERGY STAR® and Star K: Manufacturer specifications list ENERGY STAR certification and Star K certification.

Specifications and Fit

• Model: WSES5030SV
• Finish: Black Stainless
• Configuration: 30-inch-class slide-in electric range with one oven

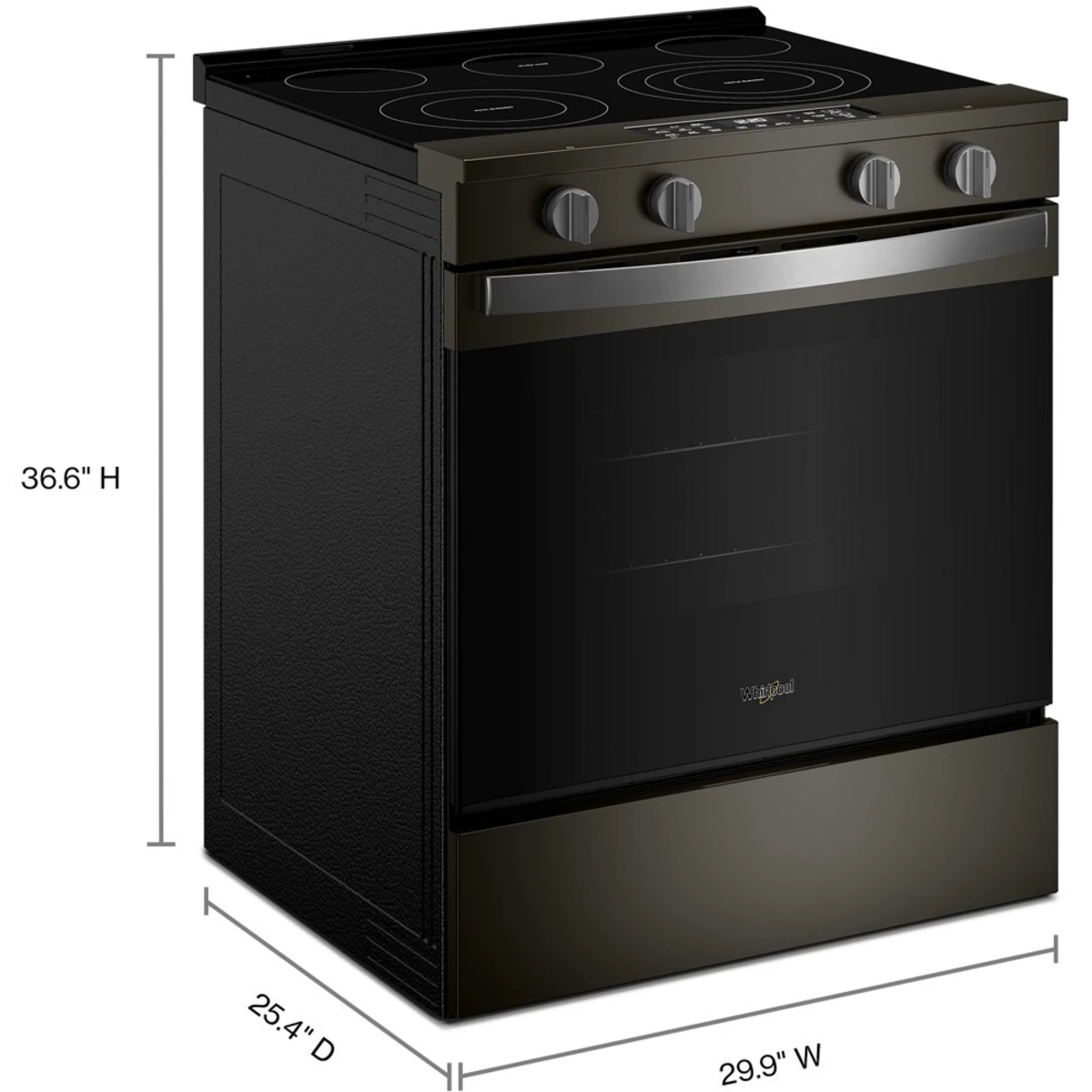

• Width: 29.9 inches
• Adjustable overall height: 36.6–38.1 inches
• Closed depth: 29.1 inches including handle; 27.4 inches excluding handle
• Depth excluding doors: 25.4 inches
• Depth with door open 90 degrees: 47.7 inches
• Electrical: Manufacturer lists 40 amps and 60 Hz; a power cord is not included. Have the installer confirm the actual rating plate and required 120/240- or 120/208-volt connection under the full manual and local requirements.

Installation and Care

The complete owner’s manual includes both slide-in and freestanding cutout drawings, a 30-inch minimum opening, electrical connection options, leveling and anti-tip instructions. A qualified installer should verify the finished space, actual appliance dimensions, circuit, cord and grounding before installation. Install and engage the anti-tip bracket and keep the oven vent clear. Dimensions are for planning only. Remove racks and other items listed in the manual before Self Clean; follow the separate water and wipe-down instructions for Steam Clean.

Manufacturer Documents

Complete owner’s manual and installation instructions · Dimension guide · Control and cooking guide · Official model support · Connected-feature requirements

Manufacturer Warranty

Whirlpool’s limited warranty provides one year of eligible parts-and-labor coverage from delivery of the original purchase, subject to the written terms, proof of purchase, proper installation and use, and exclusions. Read the complete warranty.
