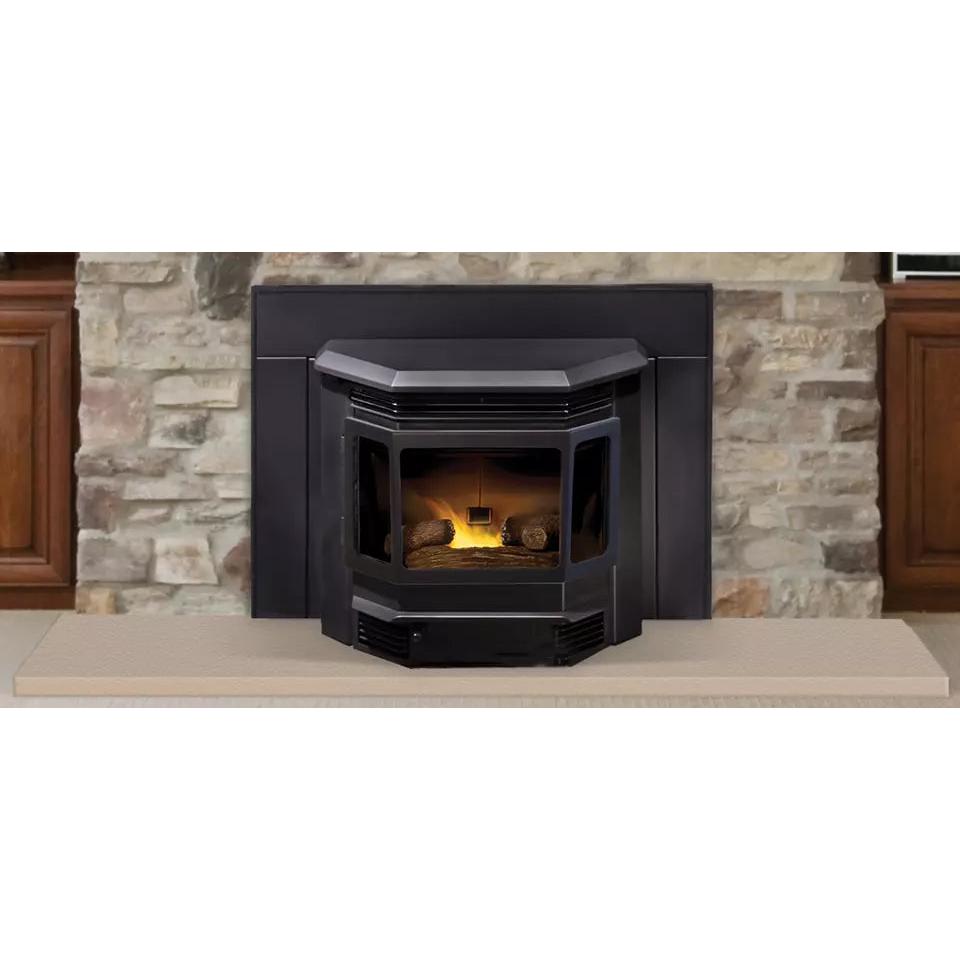

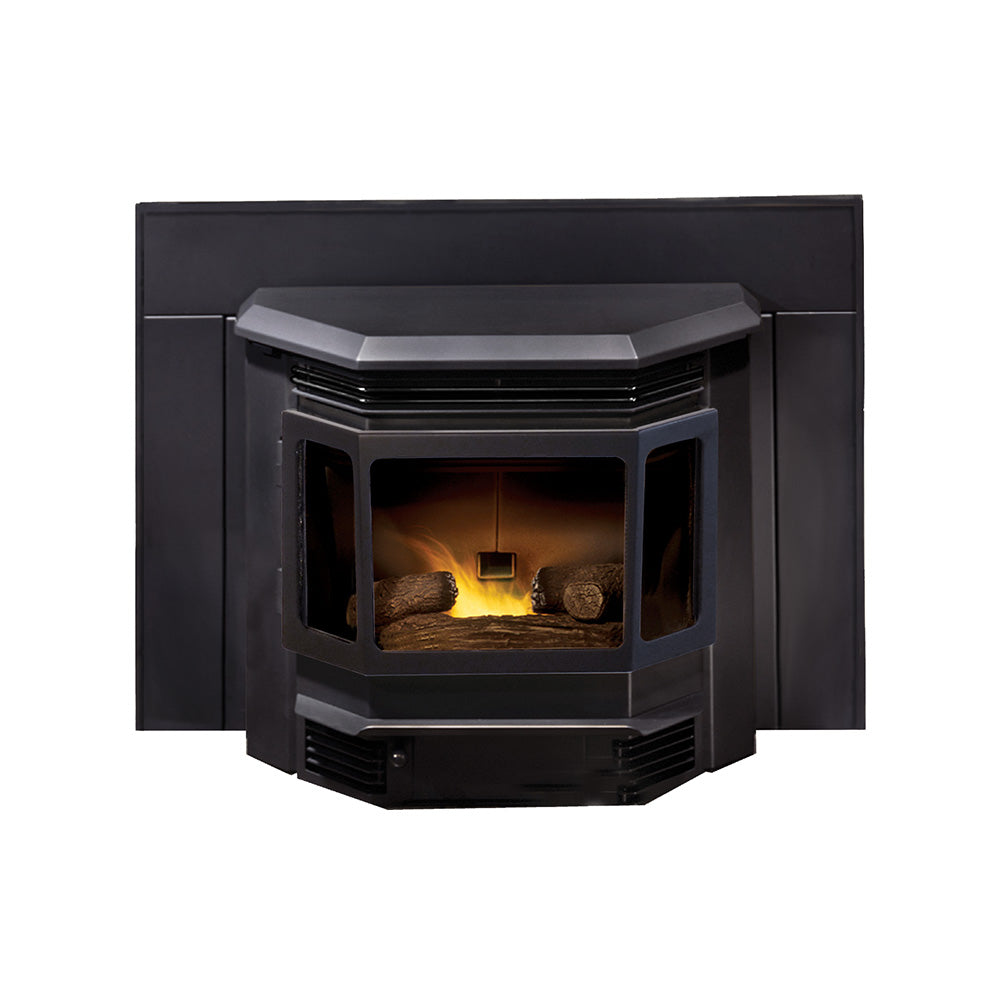

Quadra-Fire Classic Bay 1200i pellet insert; pictured surround and room finishes may be separately selected Quadra-Fire Classic Bay 1200i pellet insert; pictured surround and room finishes may be separately selected

Manufacturer photography may show optional finishes and accessories.

Quadra-Fire

Quadra-Fire Classic Bay 1200i Pellet Insert

Model: Classic Bay 1200i / CB1200I-C

Starting at

$4,538.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Quadra-Fire

About this model

The Classic Bay 1200i pairs a bay-window fire view with automatic pellet ignition, a large hopper and a programmable wall thermostat. Its feed system and easy-clean firepot support everyday pellet heating.

Explore the included equipment, selected panel coverage and optional controls, logs and shelves. Request a quote for the insert and a verified installation.

Specifications
Manufacturer model
CB1200I-C
Fuel
Approved wood pellets
Appliance W × H × D
28-1/2 × 25-1/2 × 29-3/4 in; overall depth includes hearth projection
Hopper capacity
75 lb; reduced-height setting 60 lb
Hearth projection
13-5/8 in, manufacturer product-page measurement
Gas-free pellet input
17,000–48,500 BTU/h
Heating-area guideline
1,000–2,600 sq ft in overview; specification table and brochure give up to 2,700 sq ft
Efficiency
68% LHV / 64% HHV, weighted EPA-test averages
Emissions
0.8 g/h, rounded manufacturer specification
Viewing area
153 sq in on product page; brochure lists 168 sq in
Electrical supply
115 V AC, 60 Hz; 4.1 A startup / 1.1 A running
Planning fireplace opening
29-3/4 in front W; 22-1/2 in rear W; 19-3/4–22-1/4 in H by hopper setting; use manual for depth and clearance verification
Manuals and documents
Standard features

Bay-window pellet insert with automatic ignition, a 75-pound hopper, patented feed system and easy-clean firepot.

Standard programmable wall thermostat and black trim.

Required components

A compatible pellet vent and termination, grounded power, appropriate hearth protection and a verified fireplace opening are required. Select the panel and trim coverage for the opening.

Built-in installations require rear shroud 811-0680. Outside-air kit 811-0872 is separately selected and required for mobile homes.

Optional features and accessories

Smart Stat wireless thermostat, decorative log set, and the pictured wood or noncombustible mantel shelves.

Battery-backup equipment must match the manufacturer’s current compatibility guidance; do not assume any generic backup supply is suitable.

Features & options

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Included features

Classic Bay 1200i — Programmable wall thermostat
Programmable wall thermostat Included

Standard temperature control.

Classic Bay 1200i — Standard black trim
Standard black trim Included

Manufacturer black trim illustration.

Classic Bay 1200i — EPA certification
EPA certification Included

Emissions certification; not a tax-credit eligibility claim.

Optional wireless control

Classic Bay 1200i — Smart Stat wireless thermostat
Smart Stat wireless thermostat Optional

Optional decorative logs

Classic Bay 1200i — Log set
Log set Optional

Decorative log appearance; the insert still burns approved wood pellets.

Panel and trim size

(required)

Other selections

  • Standard — 40 W × 30 H in
  • Large — 50 W × 33 H in

Select the panel coverage appropriate to the fireplace opening. Confirm the included package and separate component charges.

Installation type

(required)

Other selections

  • Existing masonry fireplace
  • Listed factory-built fireplace
  • Built-in with required rear shroud

A qualified installer must verify eligibility, clearances, venting and floor protection.

Outside combustion air

Other selections

  • Outside-air kit 811-0872

Recommended; required for mobile homes and wherever the installation or local requirements specify it.

Optional mantel shelf

Classic Bay 1200i — Baxter
Baxter Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Crosby
Crosby Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Fillmore
Fillmore Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Ozark
Ozark Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Cove Gray — noncombustible
Cove Gray — noncombustible Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Midnight Mist — noncombustible
Midnight Mist — noncombustible Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — White — noncombustible
White — noncombustible Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Tavern Brown — noncombustible
Tavern Brown — noncombustible Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Washed Cedar — noncombustible
Washed Cedar — noncombustible Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Classic Bay 1200i — Weathered Barnwood — noncombustible
Weathered Barnwood — noncombustible Optional

Manufacturer shelf illustration; installation and finishing are separately quoted.

Wood shelves: 48, 59 or 72 in. Noncombustible shelves: 60 or 72 in. Size and clearances must fit the installation.

Technical notes

Heating area depends on climate, insulation, layout and air movement. The manufacturer overview gives 1,000–2,600 sq ft, while its table and brochure give up to 2,700 sq ft.

Viewing-area sources differ: 153 sq in on the page and 168 sq in in the brochure. Neither changes the required opening dimensions.

The June 2026 installation manual gives a 12-5/8 in minimum opening depth, while the page says 13-1/4 in; have the installer confirm the actual unit and vent envelope. Follow the full clearance and floor-protection instructions.

Images show the insert and optional surrounding finishes; accessories, installation and materials are not all included.

Use the current owner manual for cleaning, ash removal and vent inspections; frequency depends on the fuel and use.

View the manufacturer’s product page

Quadra-Fire

Make it yours.

Choose the options you want us to include in your inquiry. We will review your model, selected options, and installation requirements before preparing a quote.

Quadra-Fire Classic Bay 1200i Pellet Insert

Select the panel coverage appropriate to the fireplace opening. Confirm the included package and separate component charges.

A qualified installer must verify eligibility, clearances, venting and floor protection.

Recommended; required for mobile homes and wherever the installation or local requirements specify it.

Wood shelves: 48, 59 or 72 in. Noncombustible shelves: 60 or 72 in. Size and clearances must fit the installation.

Installation and materials are quoted separately.
