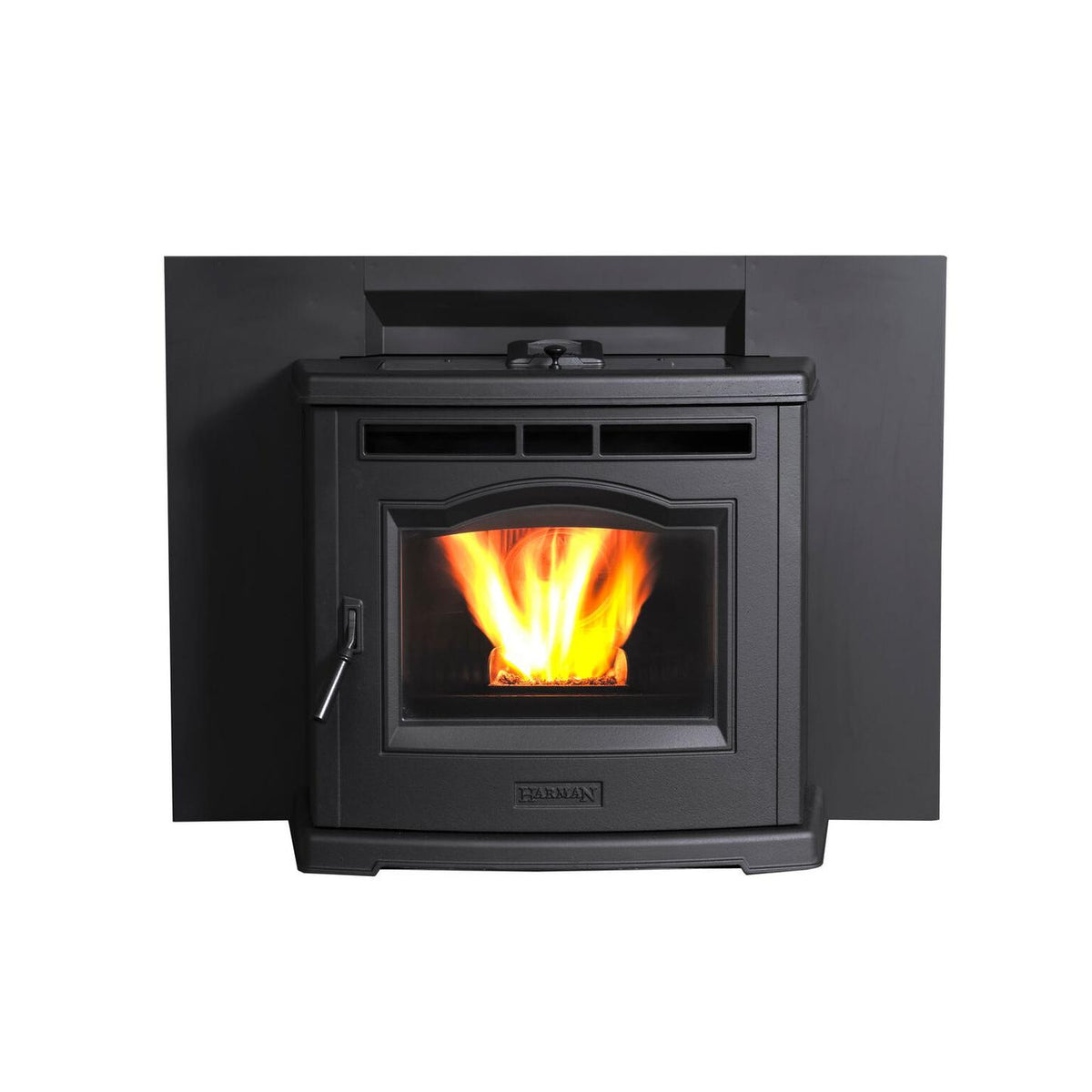

Harman P42i-TC Pellet Insert — 24 in Hopper
Model: P42i-TC 24 in hopper / SKU 1-90-742240-1
Starting at
$5,229.00 USD
Manufacturer product-only starting estimate; configuration and accessories may change the quote.
Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.
Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.
Harman
About this model
The Harman P42i-TC with a 24-inch hopper is a pellet fireplace insert with up to 64.5 lb fuel capacity. The HHT service-parts document identifies the 24-inch unit as SKU 1-90-742240-1, distinct from Washburn’s existing 20-inch draft. The appliance includes EASY Touch Control, a wireless room sensor, PelletPro feed, exhaust-sensing temperature regulation, glass airwash, flame-reactive mirrored glass and a track system for maintenance.
Harman lists 7,400–41,800 BTU/hr input and a 156 sq in viewing area. The current product page gives an 800–2,100 sq ft heating guide, while the shared pellet-insert brochure says 800–2,400 sq ft. These are estimates, not guaranteed room coverage. The 24-inch hopper holds up to 64.5 lb; the 20-inch configuration is a separate Washburn’s listing.
A small surround is standard according to the brochure. Larger surround sizes, ceramic log set, zero-clearance box, direct-vent wall pass-through and outside temperature kit may be selected as appropriate. Photos may show optional components. Fit, chimney liner, floor protection, installation and any factory-built fireplace kit must be assessed under the current manual. Manufacturer Starting at pricing is a product-only estimate, with project components, delivery and tax separate.
Specifications
- Fuel
- Wood pellet
- Configuration
- 24 in hopper, 64.5 lb capacity
- Manufacturer appliance SKU
- 1-90-742240-1 (official service parts document)
- Appliance width
- 42 in
- Appliance height
- 30-7/8 in
- Appliance depth
- 27-3/4 in including full unit
- Minimum firebox opening depth
- 15-9/16 in (product page)
- Hearth front width
- 30 in
- Hearth depth
- 17 in
- BTU/hr input
- 7,400–41,800 per product page and brochure
- Heating capacity guide
- 800–2,100 sq ft product page; brochure says 800–2,400 sq ft
- Viewing area
- 156 sq in
- Efficiency
- 84% LHV / 79% HHV weighted average
- Emissions
- 1.0 g/hr
- Venting size
- 4 in per brochure; follow current manual
- Weight
- 412 lb per brochure
- Minimum floor protector
- 30 in W × 17 in D per brochure; verify current manual
Manuals and documents
Standard features
Required components
Optional features and accessories
Features & options
Features & options
Review available selections. Included equipment and any additional charges are confirmed on your quote.
Surround for 24 in insert
(required)
For a larger opening; confirm dimensions and upcharge.
Other selections
- Standard small surround
- Custom surround up to 60 in × 47 in
Small surround is standard per brochure. Larger surround is selected separately.
P42i-TC options
Confirm P42i-TC kit and approved site plan.
Vent routing must follow the exact manual.
Confirm compatibility and cost.
Other selections
- None requested
- Ceramic log set
Manufacturer log photo names a different insert, so the P42i kit remains text-only until exact photo and part are confirmed.
Existing fireplace and venting
(required)
Other selections
- Existing masonry fireplace
- Factory-built wood-burning fireplace
- New zero-clearance project
Factory-built fireplaces require kit #1-00-574205 and liner review per current install manual; site components quoted separately.
Technical notes
