Included burn technology
Startup airflow timer runs about 20 minutes after activation.
Multiple combustion stages help burn wood gases.
Manufacturer-listed wood stove technology.
Manufacturer photography may show optional finishes and accessories.
Quadra-Fire
Quadra-Fire 4300 Step Top Wood Stove
Model: 4300 Step Top / 43ST-ACC-C
Starting at
$3,387.00 USD
Manufacturer product-only starting estimate; configuration and accessories may change the quote.
Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.
Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.
Quadra-Fire
About this model

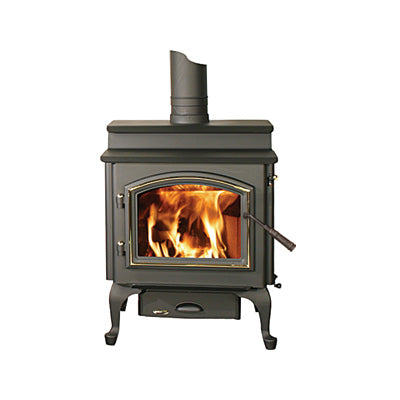

The Quadra-Fire 4300 Step Top is a wood-burning stove with Automatic Combustion Control (ACC) and the Four-Point Burn System. The ACC supplies startup air for about 20 minutes after activation. This steel stove can be configured with a pedestal, traditional cast legs or Queen Anne legs, plus a door style and compatible trim. Base, door and venting selections must be confirmed in the final quote.
Quadra-Fire lists a 2.3 cu ft firebox, 18 in recommended log length, up to 12-hour maximum burn time under test conditions, 61,700 peak BTU/hr, 1.6 g/hr emissions and a 1,100–3,000 sq ft heating guide. Performance varies by wood moisture, load, chimney and building conditions. The brochure gives dimensions for each base and different clearances for single-wall and double-wall pipe.

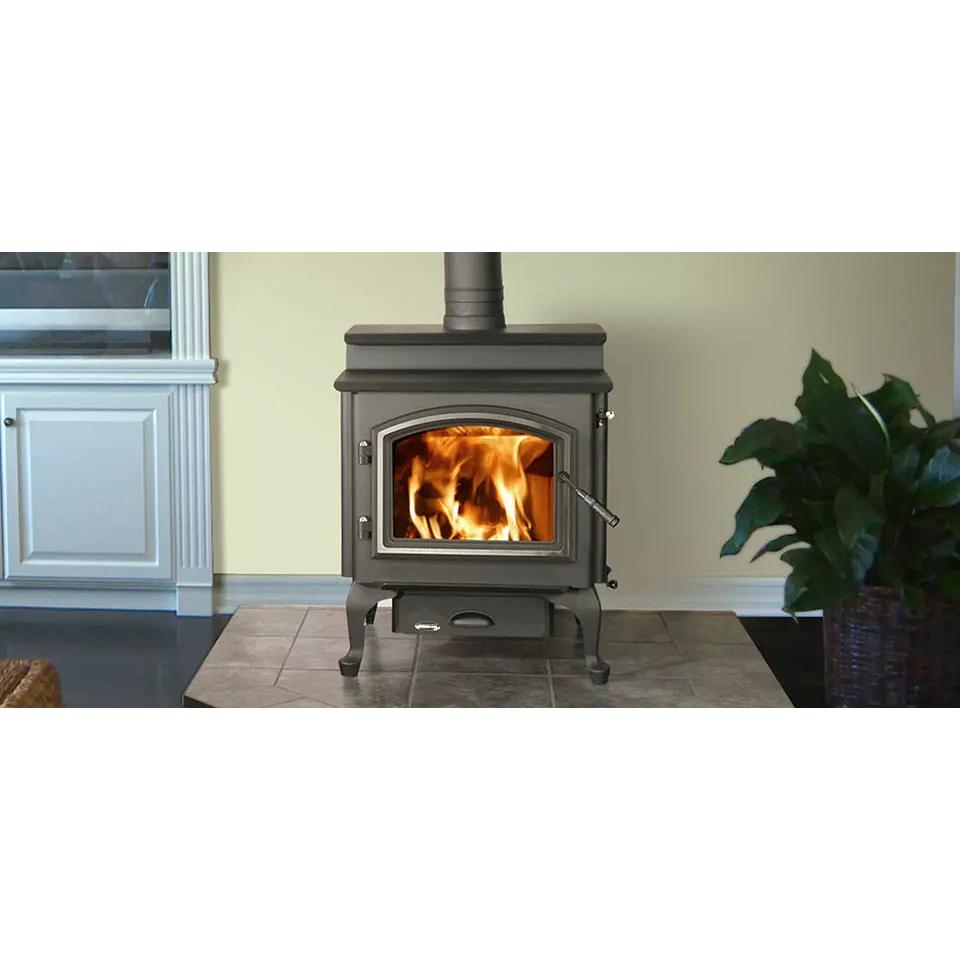

The manufacturer shows Queen Anne leg finishes, cast legs, an arched or rectangular door, satin nickel door details and an optional fan. Some photos on the product page are labeled for other Quadra-Fire models; Washburn’s only uses imagery where the pictured part can be attributed to the 4300 Step Top. A chimney, connector, floor protection and installation materials are separately selected under the current 43ST-ACC-C manual. The manufacturer's Starting at amount is a product-only estimate.
Specifications
- Fuel
- Solid wood only per current installation manual
- Model family
- 43ST-ACC-C per manufacturer installation/owner manuals
- Firebox
- 2.3 cu ft (brochure)
- Recommended log length
- 18 in
- Maximum burn time
- Up to 12 hours per brochure; varies with wood/load/operation
- Peak BTU/hr input
- 61,700, first-hour peak manufacturer measure
- Heating capacity guide
- 1,100–3,000 sq ft per brochure
- Viewing area
- 165 sq in
- Efficiency
- 80% LHV / 74% HHV weighted average
- Emissions
- 1.6 g/hr
- Stove width
- 26 in across brochure base configurations
- Height with pedestal
- 34-1/4 in per brochure
- Height with Queen Anne/traditional legs
- 32-7/8 in per brochure
- Stove weight
- 315 lb per brochure
- Minimum floor protection
- 31-5/8 in × 41 in per brochure; verify current manual
- Clearance qualification
- Single/double-wall chimney connector dimensions differ; current 43ST-ACC-C manual governs
Manuals and documents
Standard features
Required components
Optional features and accessories
Features & options
Features & options
Review available selections. Included equipment and any additional charges are confirmed on your quote.
4300 Step Top base
(required)
One of the required base selections; confirm 4300 kit.
One of the required base selections.
One of the required base selections; shown on 4300 gallery image.
Other selections
- Pedestal base
A compatible base must be selected; brochure dimensions vary by base. Availability and base charges require quote.
Door appearance
(required)
Other selections
- Black rectangular door
- Black arched door
- Arched black door with satin nickel trim
The product page mistakenly calls this the 5700 in door text and some photos are named for 5700. Brochure supports arched-door upgrade for 4300; confirm exact 43ST kit and price.
Door detail upgrade
Other selections
- No upgrade
- Satin nickel hinge pins and air control handle
Confirm compatibility with the chosen door; photograph on manufacturer page is generic Step Top.
Heat distribution
Other selections
- No fan
- Add optional fan kit
Page offers a fan, but the pictured fan asset names a different model. Confirm 4300-compatible kit; electrical supply may be needed.
Chimney and floor protection
(required)
Other selections
- Assess existing chimney
- New chimney and floor protection
Approved chimney system, connector, floor protection and labor are site-dependent and separately selected.
Technical notes
Quadra-Fire
Make it yours.
Choose the options you want us to include in your inquiry. We will review your model, selected options, and installation requirements before preparing a quote.
Quadra-Fire 4300 Step Top Wood Stove
