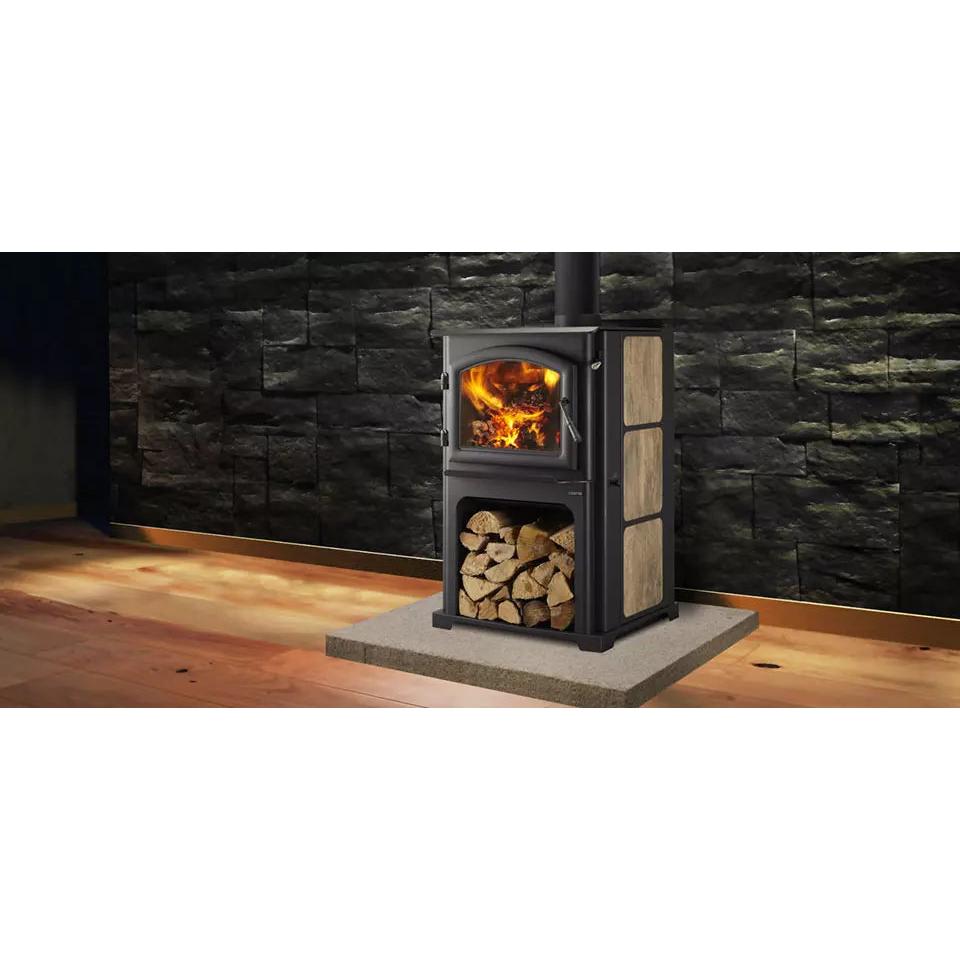

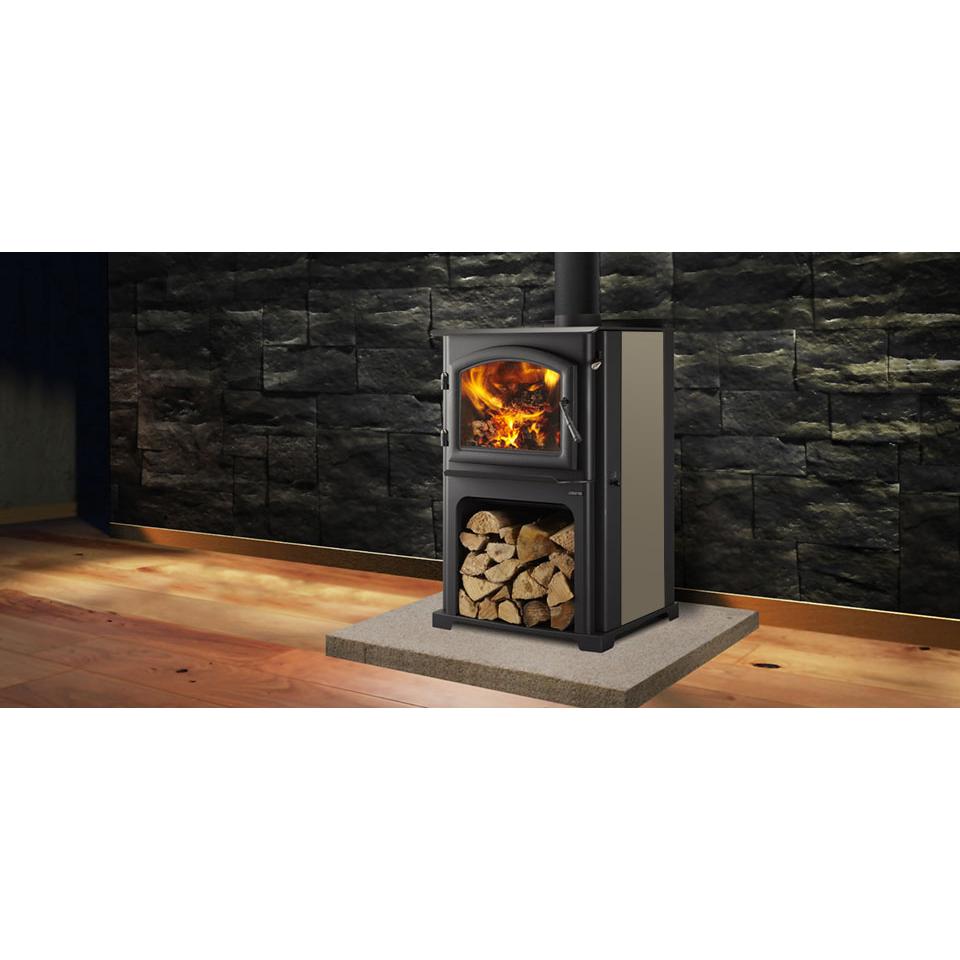

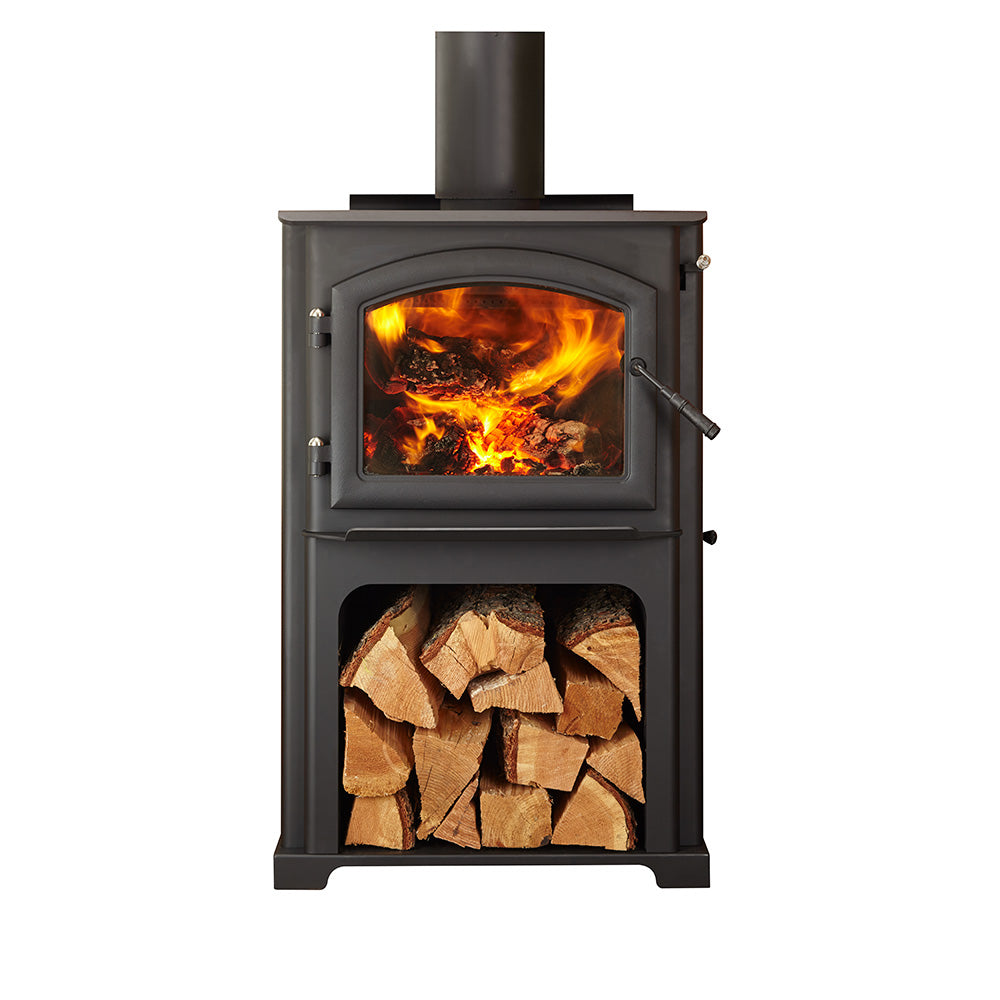

Quadra-Fire Discovery III wood stove; decorative side treatment, chimney and surrounding finishes may be separately selected Quadra-Fire Discovery III in a finished room; decorative side treatment, chimney and surrounding finishes may be separately selected Quadra-Fire Discovery III in a finished room; decorative side treatment, chimney and surrounding finishes may be separately selected

Manufacturer photography may show optional finishes and accessories.

Quadra-Fire

Quadra-Fire Discovery III Wood Stove

Model: Discovery III / DISCOVERY-III-C

Starting at

$2,899.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Quadra-Fire

About this model

The Discovery III combines a Classic Black wood stove with integrated wood storage and customizable side panels. Automatic Combustion Control supplies timed startup air, while the Four-Point Burn System supports staged combustion.

Its 2.3 cu ft firebox accepts a recommended 18-inch log. Solid panels and tile brackets are supplied; decorative tiles, painted finishes and the fan kit are separately selected. Review the specifications and installation manual, then request a quote for the stove and your complete installation.

Specifications
Manufacturer model
DISCOVERY-III-C
Fuel
Seasoned cord wood
Peak heat output
61,700 BTU/hr — peak first-hour calculation, not continuous output
Heating capacity
1,100–3,000 sq ft — general guide
Maximum burn time
12 hours — varies with fuel, load, operation and draft
Efficiency (brochure)
80% LHV / 74% HHV — weighted averages
Emissions
1.6 g/hr
Firebox
2.3 cu ft
Recommended log length
18 in
Viewing area
165 sq in
Weight
360 lb
Dimensions W × H × D
27-1/4 × 38-3/8 × 28-5/8 in — brochure planning dimensions
Minimum floor protection
31-5/8 × 41 in — verify orientation and manual requirements
Manuals and documents
Standard features

Classic Black wood stove with an integrated wood-storage bin, Automatic Combustion Control and the Four-Point Burn System.

Solid black side panels and tile brackets are supplied. Choose the supplied black appearance or customize it using separately selected ceramic tiles or suitable high-temperature paint.

Required components

A correctly sized approved chimney and connector, floor protection, required clearances and a professionally designed installation are separate project requirements. Do not base a clearance on a product photo.

Mobile home installations require the compatible outside-air kit, attachment and grounding as specified in the exact model manual. Do not install in a mobile home sleeping room.

Optional features and accessories

Optional 160 cfm fan kit helps distribute warmth. Electrical supply and accessory installation are separate.

Decorative 12 × 12 in ceramic tiles are separately selected; Discovery III uses three per side. Paintable solid panels can remain black or be finished with suitable high-heat paint. Manufacturer examples include almond, blue, burgundy, green, rust red, silver and white; these are customization examples rather than included factory finishes.

Features & options

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Included technologies

Quadra-Fire Discovery III: Automatic Combustion Control
Automatic Combustion Control Included

Timed startup air assists lighting and can supply a boost during operation.

Quadra-Fire Discovery III: Four-Point Burn System
Four-Point Burn System Included

Manufacturer illustration of staged combustion.

Quadra-Fire Discovery III: EPA certification
EPA certification Included

Emissions certification; this is not a guarantee of eligibility for any tax incentive.

Manufacturer technology illustrations.

Side panel treatment

(required)

Quadra-Fire Discovery III: Ceramic tile example
Ceramic tile example Optional

Manufacturer illustration; decorative tiles are separate. Verify size and pattern for this model.

Quadra-Fire Discovery III: Ceramic tile example
Ceramic tile example Optional

Manufacturer illustration; decorative tiles are separate. Verify size and pattern for this model.

Quadra-Fire Discovery III: Painted side panel example
Painted side panel example Optional

Manufacturer color illustration shows Discovery III. The supplied black panel can be customized with suitable high-temperature paint; painting is additional.

Quadra-Fire Discovery III: Painted side panel example
Painted side panel example Optional

Manufacturer color illustration shows Discovery III. The supplied black panel can be customized with suitable high-temperature paint; painting is additional.

Quadra-Fire Discovery III: Painted side panel example
Painted side panel example Optional

Manufacturer color illustration shows Discovery III. The supplied black panel can be customized with suitable high-temperature paint; painting is additional.

Quadra-Fire Discovery III: Painted side panel example
Painted side panel example Optional

Manufacturer color illustration shows Discovery III. The supplied black panel can be customized with suitable high-temperature paint; painting is additional.

Quadra-Fire Discovery III: Painted side panel example
Painted side panel example Optional

Manufacturer color illustration shows Discovery III. The supplied black panel can be customized with suitable high-temperature paint; painting is additional.

Quadra-Fire Discovery III: Painted side panel example
Painted side panel example Optional

Manufacturer color illustration shows Discovery III. The supplied black panel can be customized with suitable high-temperature paint; painting is additional.

Quadra-Fire Discovery III: Painted side panel example
Painted side panel example Optional

Manufacturer color illustration shows Discovery III. The supplied black panel can be customized with suitable high-temperature paint; painting is additional.

Other selections

  • Classic Black solid panels

Tile brackets and solid panels are supplied. Tiles and paint are separately selected. The tile arrangement takes three 12 × 12 in ceramic tiles per side.

Optional blower

Other selections

  • 160 cfm fan kit

Separately purchased fan helps move heated air. Confirm compatible kit and power supply.

Outside air and installation

(required)

Other selections

  • Assess standard residential installation
  • Mobile home — outside air required

Chimney, connector, hearth protection and installation are separate. The outside-air kit is required for a mobile home installation.

Technical notes

Heating area is an estimate affected by climate, insulation, layout and air movement. Output and burn time depend on wood species, moisture, loading and chimney draft. Efficiency figures use different LHV and HHV calculations.

Single-wall and double-wall connector clearances differ. Use the matching model's installation manual for the complete clearance diagrams, floor protection, chimney and outside-air requirements. Manufacturer photos may show separately selected decorative panels, tiles and finished installations.
