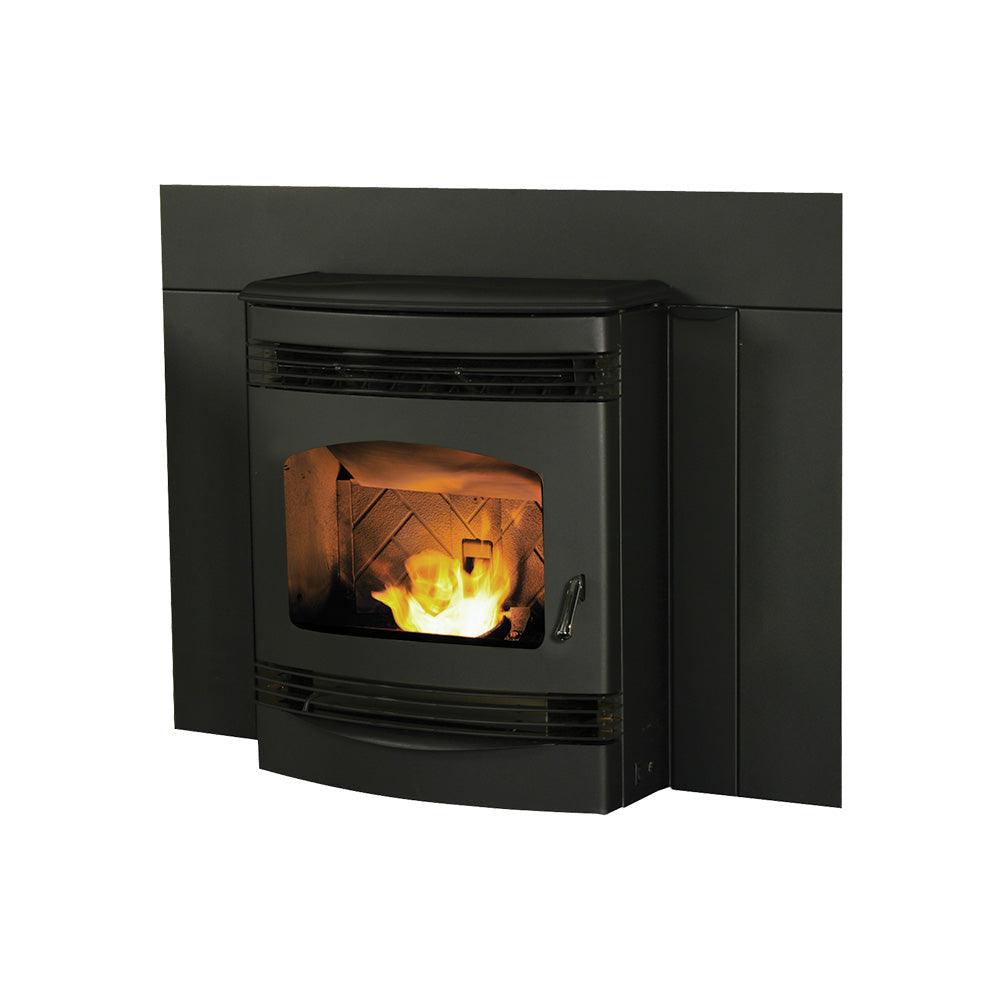

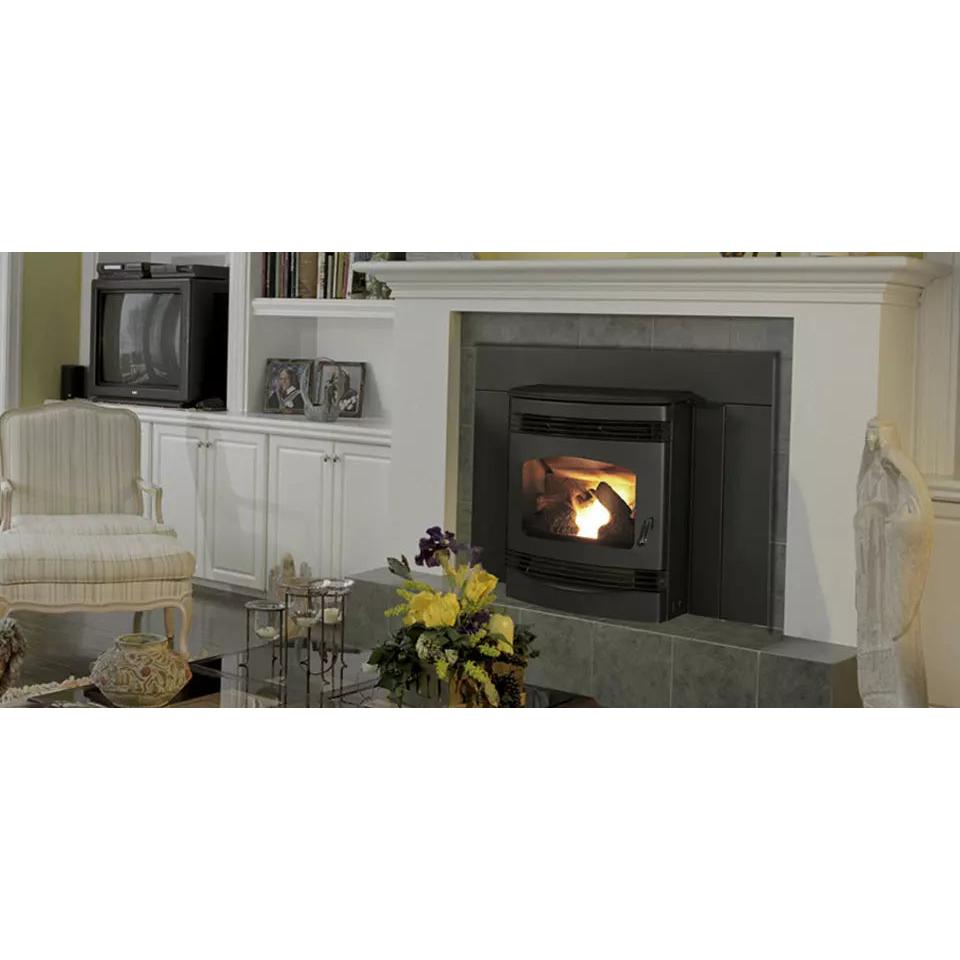

Quadra-Fire Santa Fe Pellet Insert product image; pictured finish or accessories may be optional Quadra-Fire Santa Fe Pellet Insert manufacturer lifestyle image; pictured finish or accessories may be optional

Manufacturer photography may show optional finishes and accessories.

Quadra-Fire

Quadra-Fire Santa Fe Pellet Insert

Model: Santa Fe Pellet Insert / installation model Santa Fe-I-C

Starting at

$4,068.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Quadra-Fire

About this model

The Quadra-Fire Santa Fe is a compact pellet insert for a suitable existing fireplace. The manufacturer lists a 45 lb hopper, patented pellet feed system, easy-clean firepot and EPA-certified emissions of 1.1 g/hr. A wired programmable wall thermostat is standard; the Smart Stat remote is optional.

Its manufacturer page lists a 30,600 BTU/hr peak input and a general heating guide. Actual heating depends on climate, home efficiency, fuel, placement and air movement. The current installation manual identifies the Santa Fe I-C and governs fireplace opening, clearances, venting and floor protection.

Choose the front and grille finish and an appropriate surround for the measured opening. A decorative log set, remote and compatible mantel shelves are optional. Photos may show optional finishes or accessories. The manufacturer’s “Starting at” price is an appliance-only estimate; venting, finishing, delivery, installation, accessories and tax are separate. Request a quote for the complete configuration.

Specifications
Fuel
Pellet
Appliance width
21-1/2 in
Appliance height
25-3/8 in
Minimum firebox opening depth
13 in
Extension onto hearth
8-5/8 in
Peak BTUs
30,600 (manufacturer page)
Input rate
Product page: 9,400–30,600 BTU/hr; current Santa Fe I-C manual: 9,300–30,600 BTU/hr
Heating guide
Overview: 700–1,800 sq ft; table: 1,900 sq ft — confirm sizing
Viewing area
Manufacturer product page: 201 sq in; current brochure: 168 sq in — verify current unit
Efficiency
70% LHV / 66% HHV, weighted EPA test average
Emissions
1.1 g/hr
Hopper capacity
45 lb
Manuals and documents
Standard features

Pellet insert with a 45 lb hopper and an easy-clean burn pot.

A wired programmable wall thermostat is stated as standard; remote control is an optional selection.

Manufacturer lists a pellet feed system and EPA certification for this model.

Required components

A suitable existing fireplace opening, approved vent or liner, and code-compliant installation are necessary; project components and labor are quoted separately.

Confirm the front/grille package and fireplace surround against the exact Santa Fe-I-C appliance and opening before ordering.

Optional features and accessories

Smart Stat remote is offered in addition to the standard wired thermostat.

The front and grille set is standard black; black nickel and satin nickel are optional finishes. Confirm the surround and trim set that fits the fireplace opening.

A decorative log set is an optional accessory according to the current insert brochure and installation manual.

Manufacturer lists Baxter, Crosby, Fillmore, Ozark and several non-combustible shelf designs in various lengths; verify installation clearances, model fit and price at quotation.

Features & options

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Included features

Quadra-Fire EPA certification icon
EPA certification Included

Manufacturer certification icon, not an accessory.

Manufacturer-shown standard details.

Thermostat and control

(required)

Quadra-Fire standard wired programmable wall thermostat
Wired programmable thermostat Included

Included wall control.

Quadra-Fire optional Smart Stat remote
Smart Stat remote Optional

Additional control accessory.

Wired thermostat is listed as standard; remote is optional.

Front and grille finish

(required)

Quadra-Fire Santa Fe insert front and grille set in black
Santa Fe front and grille set

Shows the standard black finish; confirm whether the front package is included with the exact appliance.

Other selections

  • Black nickel
  • Satin nickel

Confirm compatibility and any finish upcharge.

Optional mantel shelf

Baxter Mantel Shelf shown by manufacturer
Baxter Mantel Shelf Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Crosby Mantel Shelf shown by manufacturer
Crosby Mantel Shelf Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Fillmore Mantel Shelf shown by manufacturer
Fillmore Mantel Shelf Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Ozark Mantel Shelf shown by manufacturer
Ozark Mantel Shelf Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Cove Gray Mantel Shelf - Non-Combustible shown by manufacturer
Cove Gray Mantel Shelf - Non-Combustible Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Midnight Mist Mantel Shelf - Non-Combustible shown by manufacturer
Midnight Mist Mantel Shelf - Non-Combustible Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

White Mantel Shelf - Non-Combustible shown by manufacturer
White Mantel Shelf - Non-Combustible Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Tavern Brown Mantel Shelf - Non-Combustible shown by manufacturer
Tavern Brown Mantel Shelf - Non-Combustible Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Washed Cedar Mantel Shelf - Non-Combustible shown by manufacturer
Washed Cedar Mantel Shelf - Non-Combustible Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Weathered Barnwood Mantel Shelf - Non-Combustible shown by manufacturer
Weathered Barnwood Mantel Shelf - Non-Combustible Optional

Manufacturer shelf illustration; confirm length, clearance and fit for this insert.

Other selections

  • None

Lengths, material, and clearances vary by shelf.

Fireplace opening and vent

(required)

Other selections

  • New insert project
  • Assess existing fireplace

Installation materials are assessed and quoted separately.

Technical notes

The manufacturer overview describes heating 700–1,800 sq ft, while its specification table says 1,900 sq ft. Use a heat-loss assessment; the figures are guides, not guarantees.

The manufacturer product page lists a 201 sq in viewing area, while the current pellet insert brochure lists Santa Fe at 168 sq in. Confirm the current unit before publishing a viewing-area claim.

The product page lists 9,400–30,600 BTU/hr input, while the current Santa Fe I-C installation manual lists 9,300–30,600 BTU/hr. Manual figures govern the installed model. The manual specifies premium wood pellets and gives the exact fireplace opening, floor protection, vent and clearance rules.

Manufacturer starting price is an appliance-only estimate. Delivery, venting, finishing, installation, accessories and tax are additional.
