Heat & Glo Primo II 72 Gas Fireplace

Multicolor LED fire-bed lighting with seven colors and cycling effects.

IntelliFire Touch 2.0 control system with current RC450 remote.

Outside-air collar, gasket and horizontal outside-air cap as specified in the current installation manual.

Order the model-sized SafeSurface glass assembly separately.

Select a required interior-panel kit and approved glass media in the specified quantities.

Provide separately selected 6-inch insulated outside-air duct, listed vent components and electrical supply. Horizontal exhaust termination requires HZTERM-ADP; a vertical outside-air cap is separately selected when needed.

Listed vent pipe, termination, supports and firestops must suit the actual route. Gas supply, electrical work, framing and compliant finishing are separately quoted.

Required SafeSurface glass: One model-sized glass assembly. Order required glass separately. Reduced outer temperature does not eliminate hot-surface precautions.

Required Decorative Interior panels: Architectural Panels; Fluted Black Glass; Marbled Black Glass; Reflective Black Glass; Stone Column. Select one required interior-panel kit, ordered separately.

Required Fire bed material: Copper Glass; Crystal Glass; Graphite Glass; Smoked Glass. Select approved glass media and the specified quantity. Confirm the selected kit and any configuration charge in the quote.

Optional Controls, Remotes and Switches: Wall Switch; Wi-Fi Module for IntelliFire App. Optional compatible control accessory. Wi-Fi requires a module and network; wall switches and battery kits must match the ignition system. Control functions depend on the appliance.

Optional Fire bed material: River Rock Stones. Optional stone accents require approved glass media underneath; use the correct quantity and placement.

Optional Hand-Painted Logs: Birch Logs; Driftwood Logs; Oak Logs. Optional model-specific log accent; approved glass media is required underneath.

Optional Heat Management: Heat Duct Kit. Optional LPR-HEAT-DUCT heat duct kit; route and terminate it according to the Primo II manual.

Optional Mantel Shelves: Baxter 72" — Primed; Baxter 72" — Unfinished; Crosby 72" — Unfinished; Crosby 72" — Primed; Fillmore 72" — Unfinished; Fillmore 72" — Primed; Non-Combustible Cove Gray 72"; Non-Combustible Midnight Mist 72"; Non-Combustible Tavern Brown 72"; Non-Combustible Washed Cedar 72"; Non-Combustible Weathered Barnwood 72"; Non-Combustible White 72"; Ozark 72" — Primed; Ozark 72" — Distressed Knotty Alder; Ozark 72" — Unfinished. Optional accessory; exact model size, compatibility, quantity and separate charges are confirmed in the quote.

Optional Mantels: Corbels. Optional accessory; exact model size, compatibility, quantity and separate charges are confirmed in the quote.

Decorative appliance, not a heating appliance; thermostat operation is disabled.

SafeSurface double-pane glass reduces outer-glass temperature but surfaces can still become hot. Follow the manual’s burn precautions.

The powered combustion and heat-management system needs household electricity.

Finishing heat-sensitive materials to the opening is conditional on the prescribed system, materials and clearances.

For indoor installation by a qualified hearth installer. Match the fuel, rating plate and model revision. Input is not delivered room heat; altitude, venting and fuel affect performance.

Planning framing dimensions are not a complete clearance schedule. The current installation manual governs the vent route, terminations, mantels, facing, enclosure and combustibles.

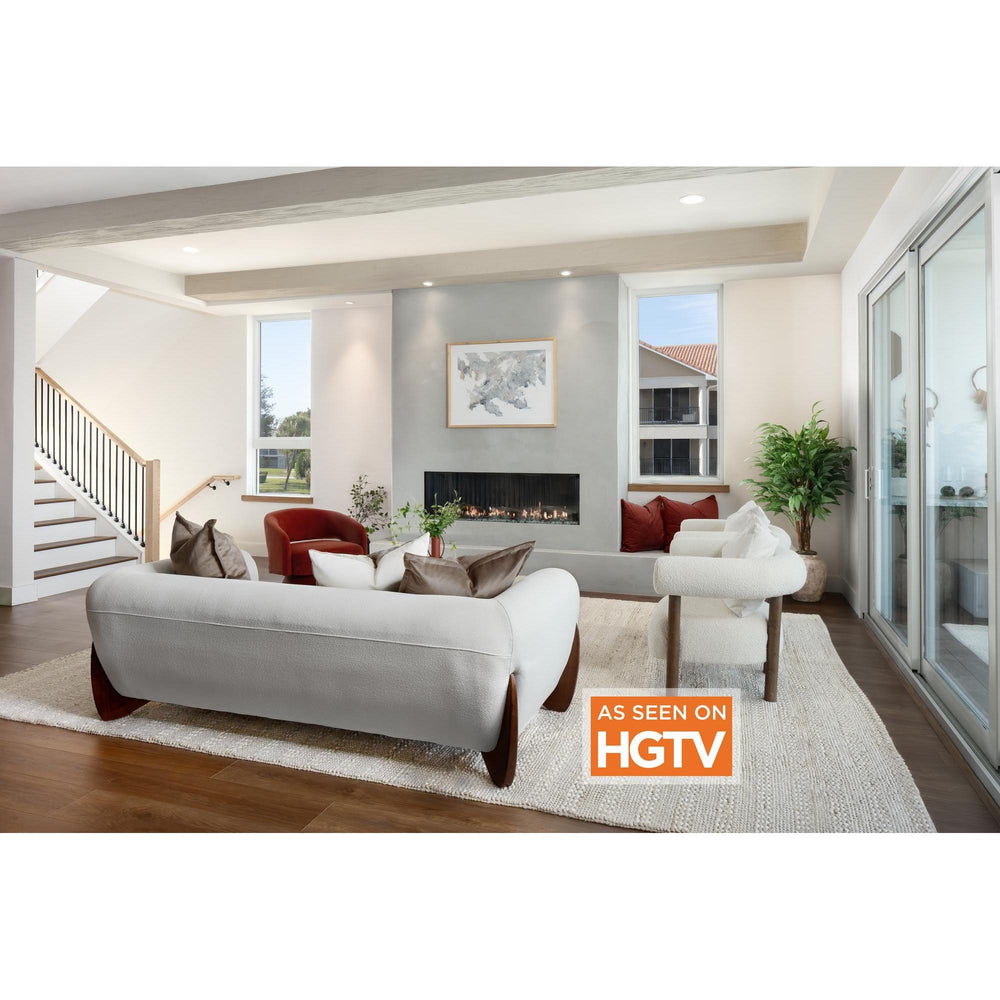

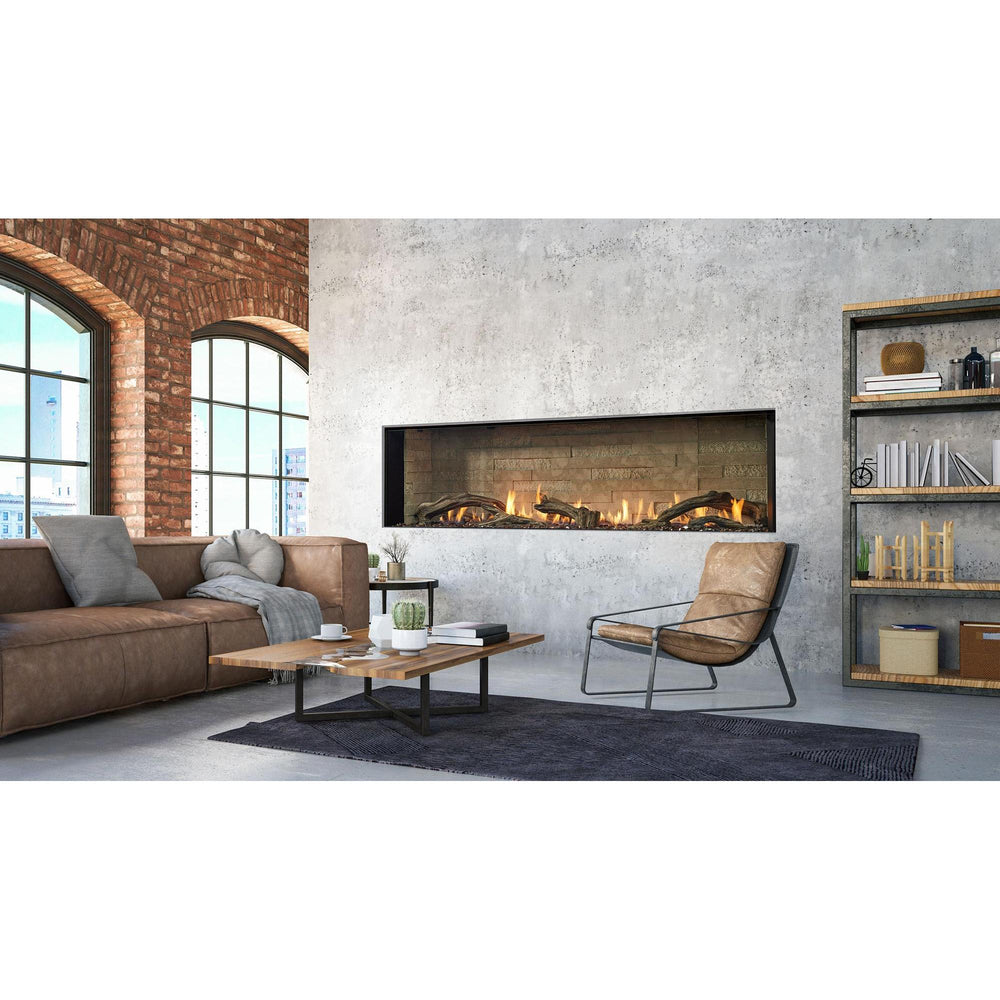

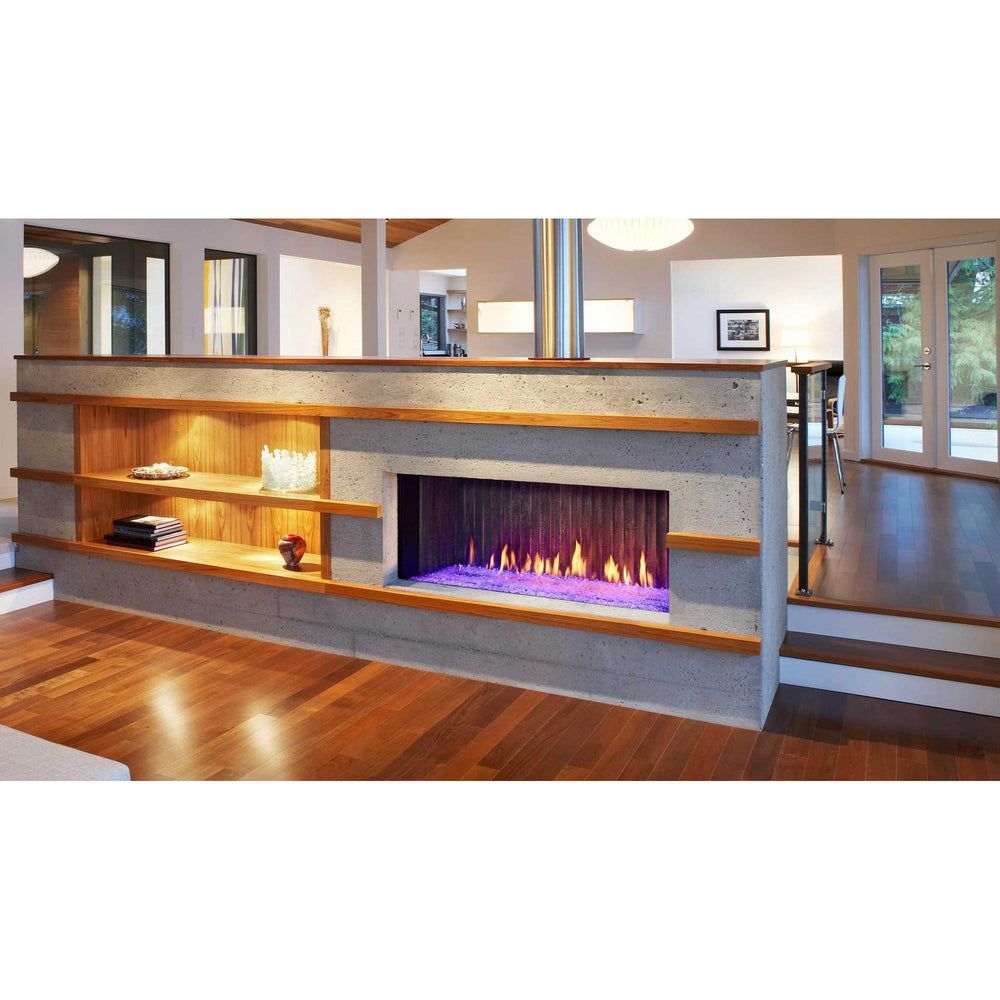

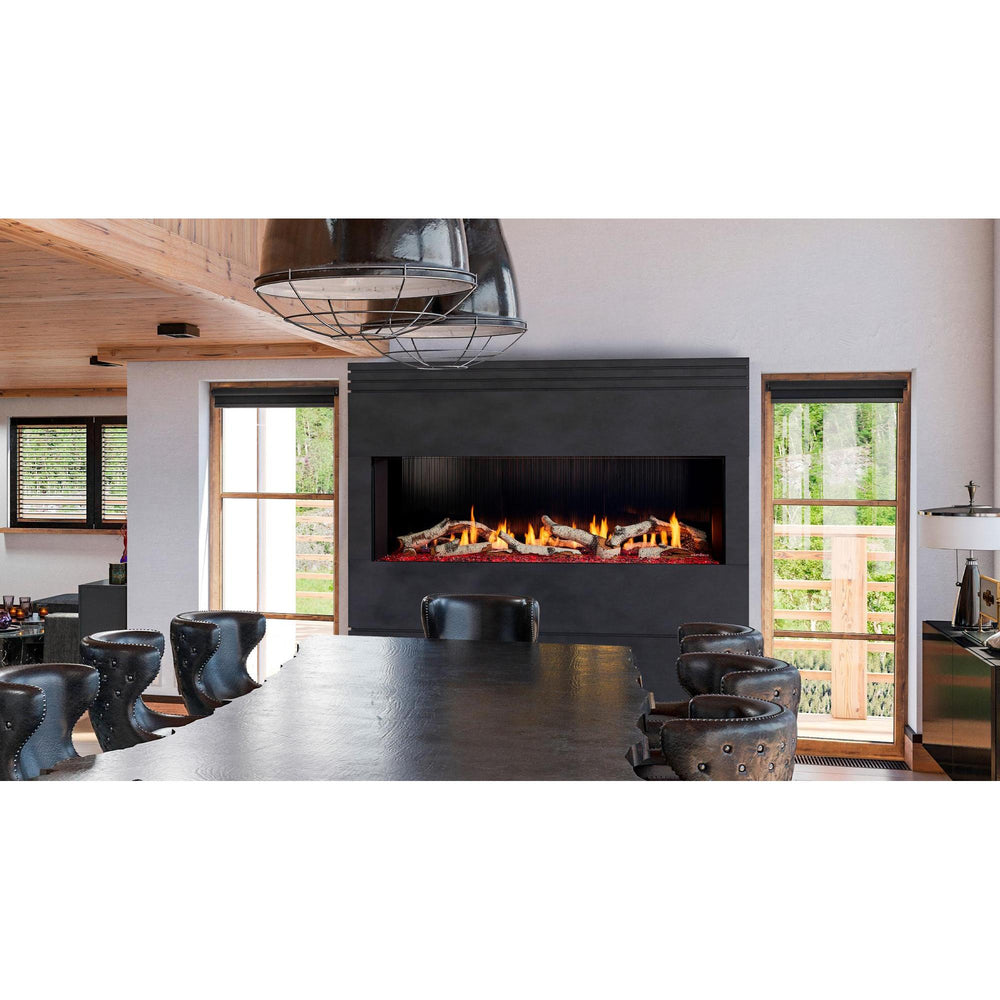

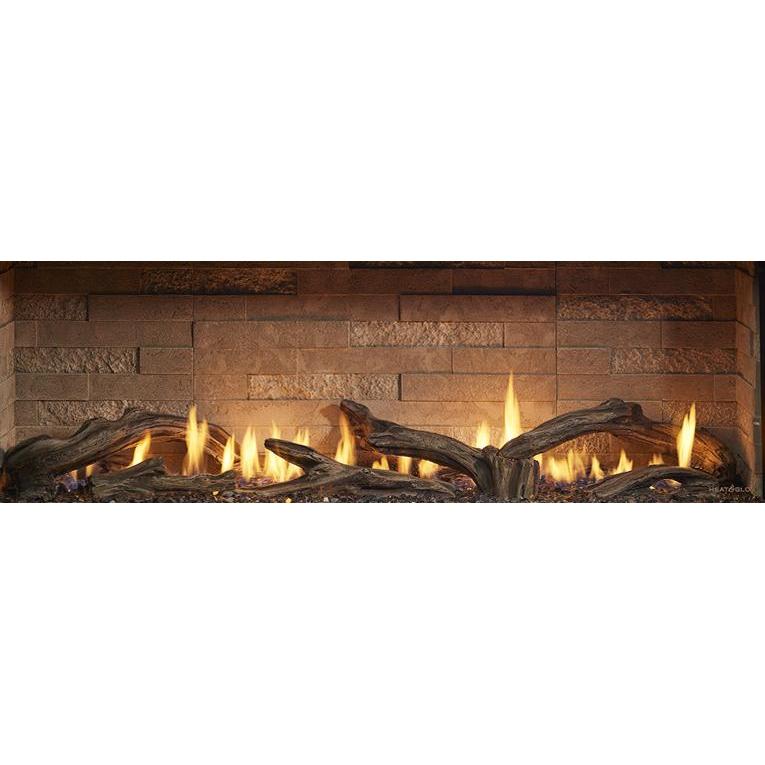

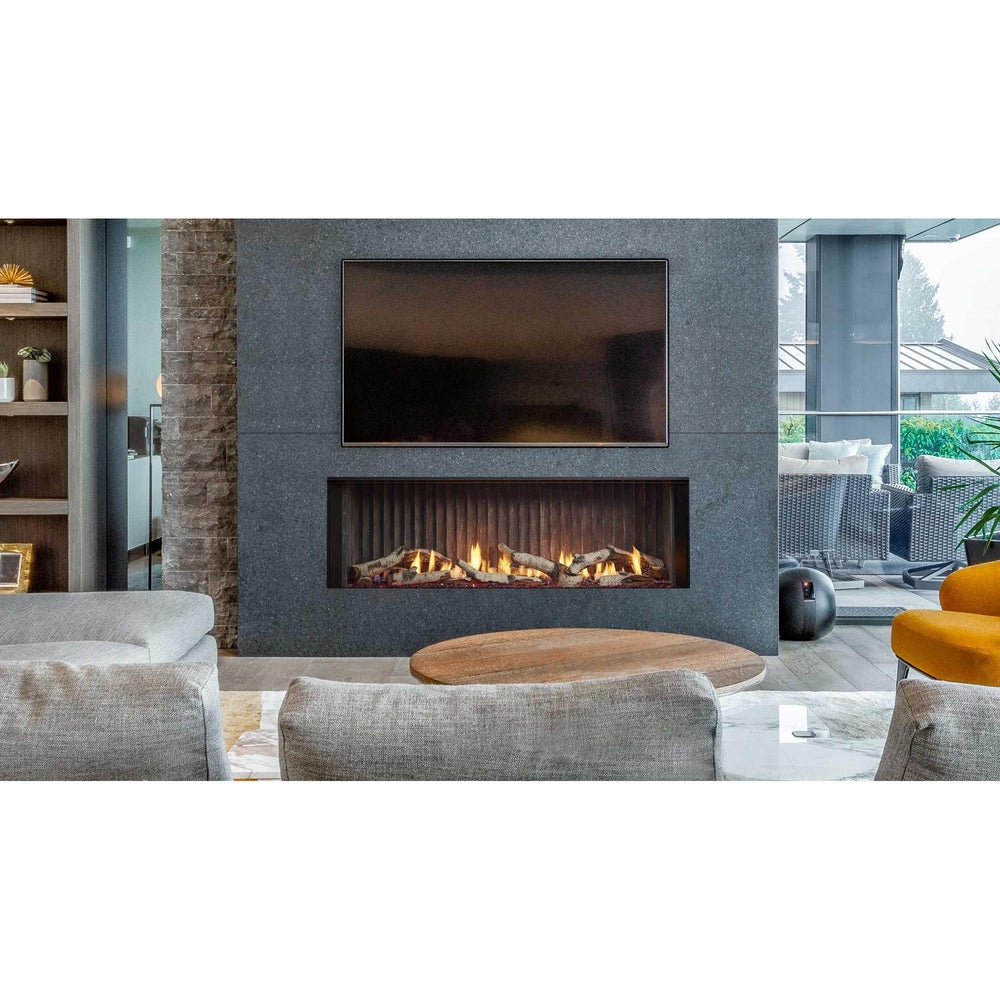

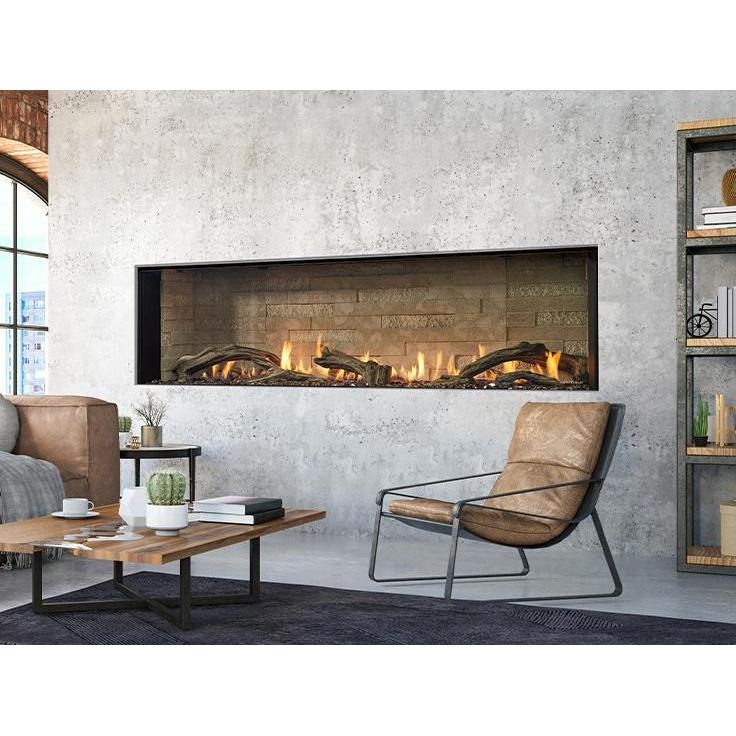

Manufacturer gallery and accessory photos may show a different size in this series and optional fronts, panels, media, mantels or heat-management components. They are not all included.
