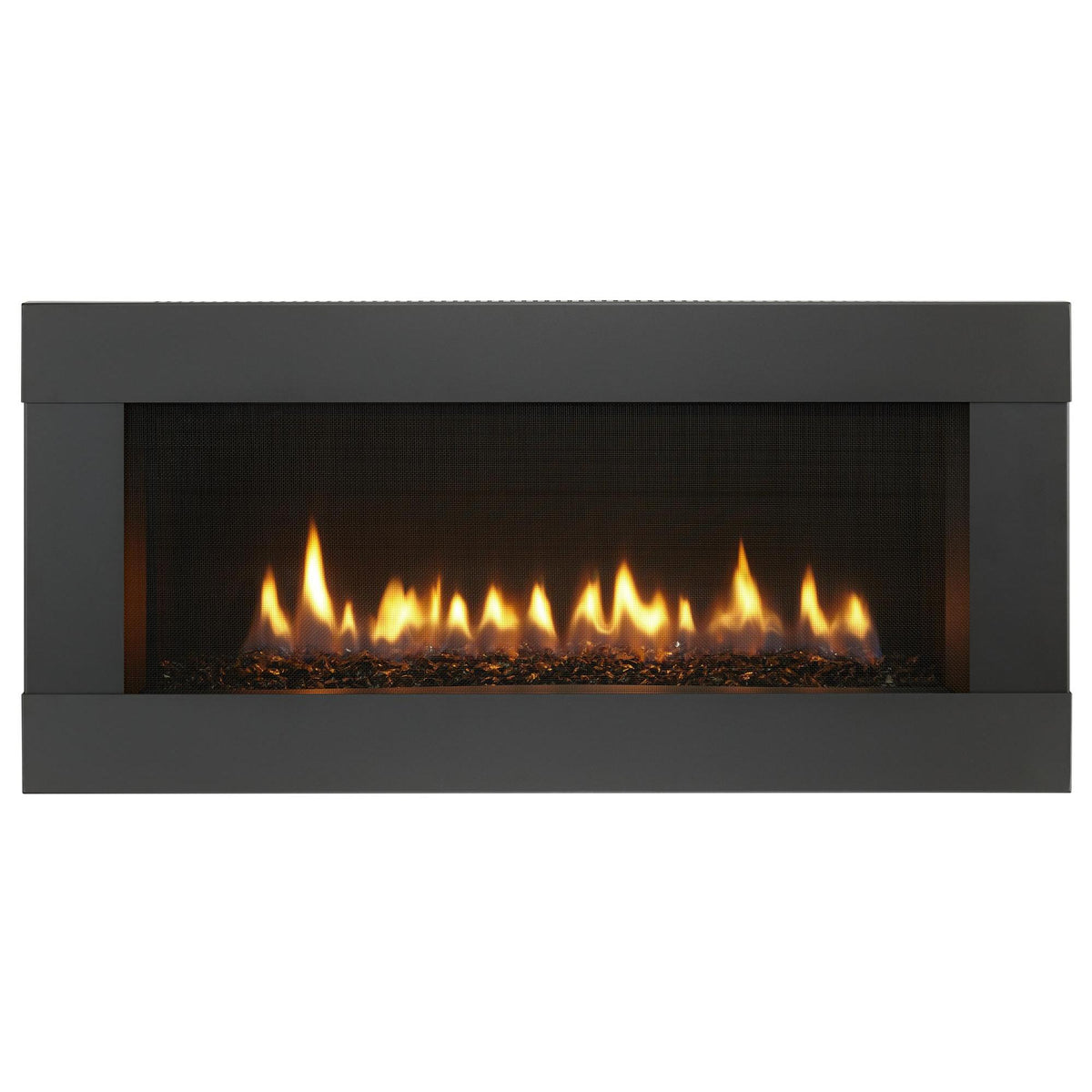

Crave 36_so — official Crave Series Gas Fireplace series image; may show a different size and separately selected options

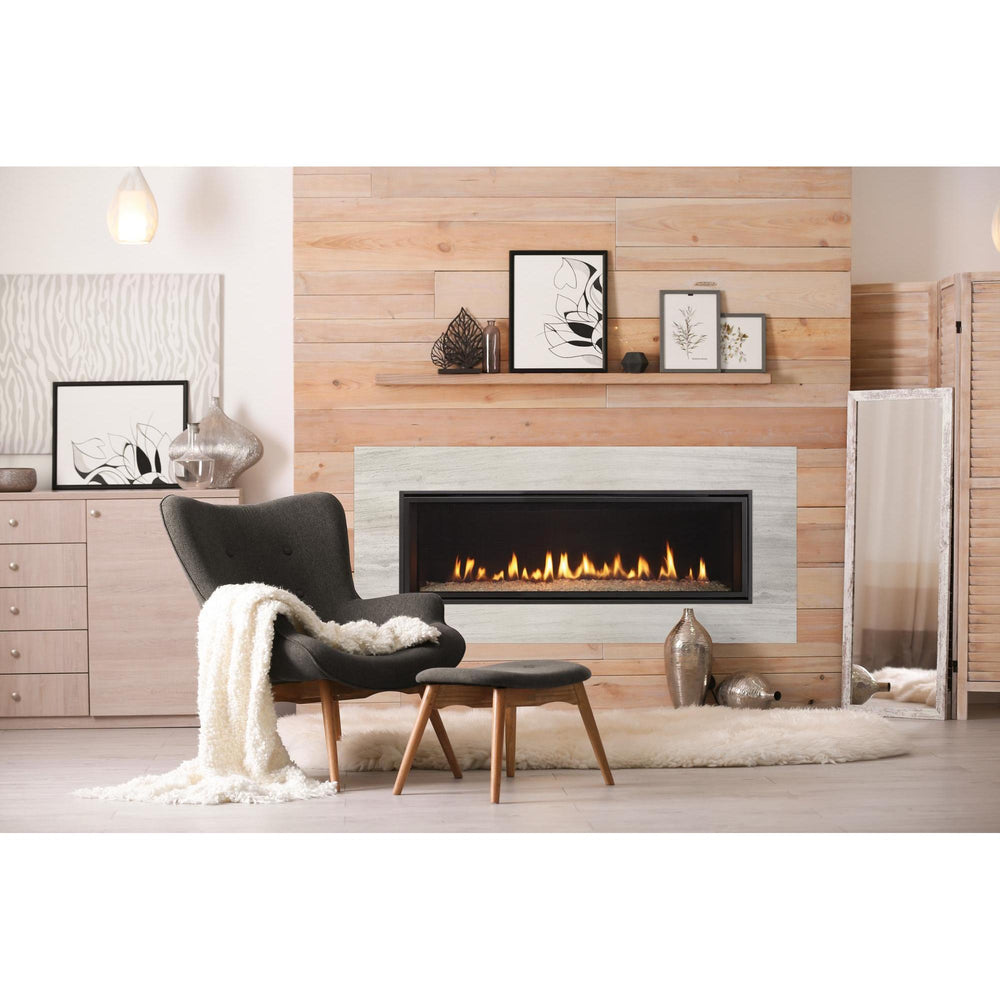

Crave48 with Driftwood stone facing — official Crave Series Gas Fireplace series image; may show a different size and separately selected options

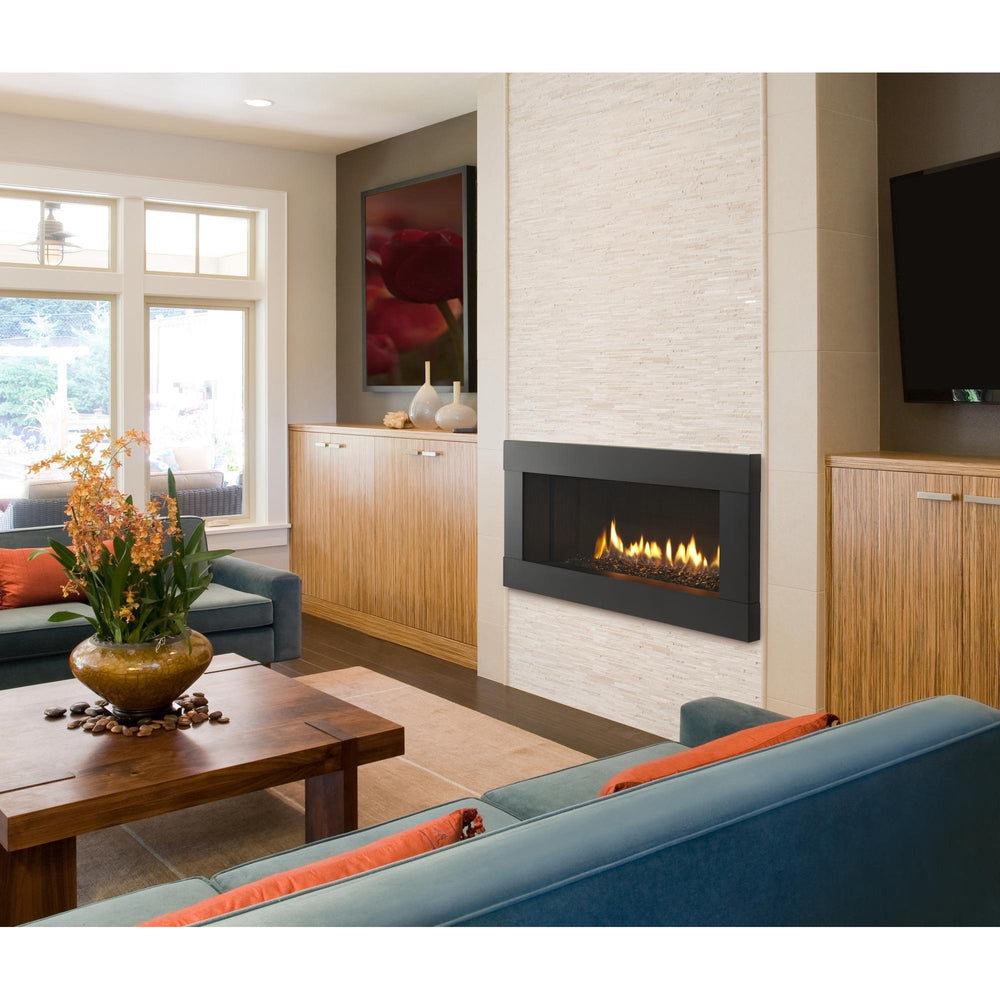

Crave36_room_BlackGlass-ModernFront — official Crave Series Gas Fireplace series image; may show a different size and separately selected options

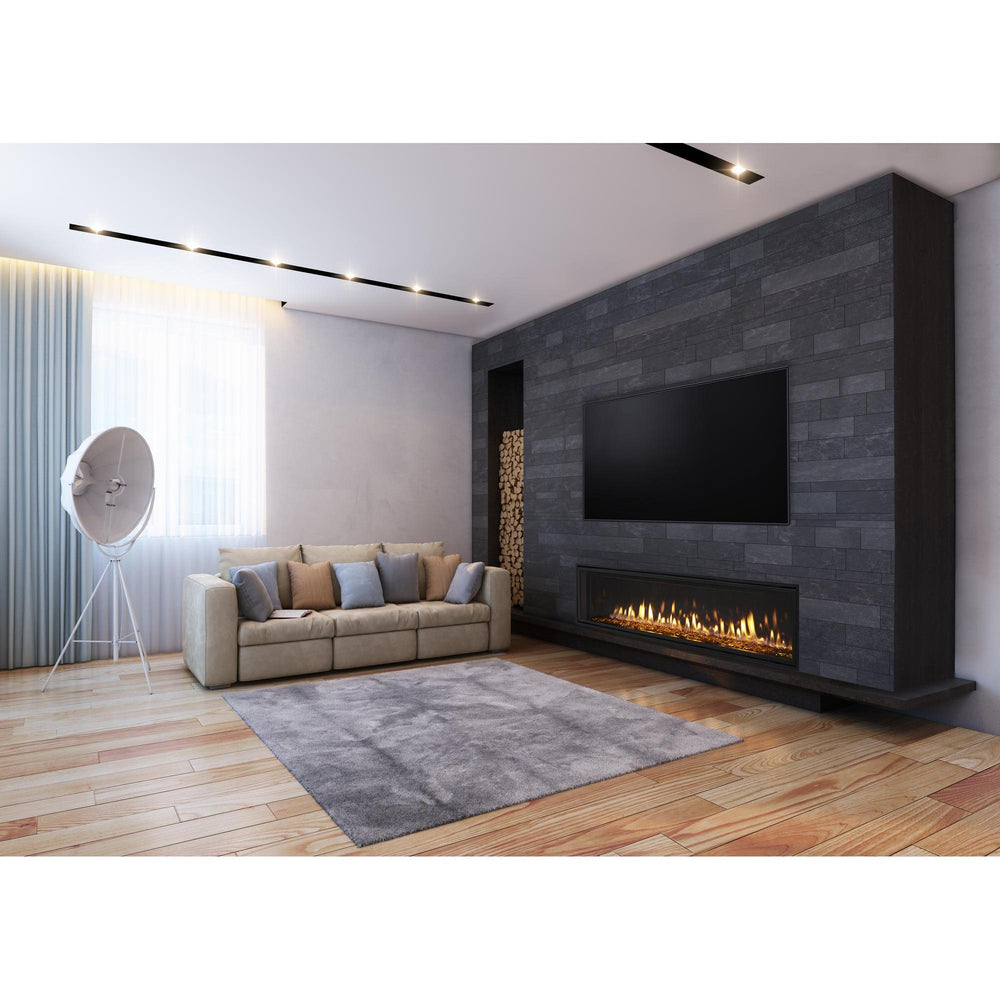

Crave Passive Heat Open Wall — official Crave Series Gas Fireplace series image; may show a different size and separately selected options

Manufacturer photography may show optional finishes and accessories.

Heatilator

Heatilator Crave 72 Rev C Gas Fireplace

Model: CRAVE8472-C

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Heatilator

About this model

Crave combines a broad, low-profile ribbon flame with a flush finishing treatment. This is the single-sided version; see-through models are separate appliances.

This listing is for Crave72 Rev C (CRAVE8472-C). Choose fuel and required finishing components in your quote. Other sizes and see-through configurations are separate models.

Installation, venting, materials, finishing, delivery, optional accessories and tax are separate. Manufacturer images may show optional features.

Specifications

Manufacturer model: CRAVE8472-C
Fuel: Natural gas or propane, using the listed configuration / certified conversion kit
Natural gas input at 0–2,000 ft: 30,000–58,000 BTU/h
Propane input at 0–2,000 ft: 24,000–46,000 BTU/h
Planning framing W × H × D: 84-1/4 × 48 × 18-1/4 in; stud-to-stud planning dimensions only. Use current installation manual and selected vent/heat-management layout.
Viewing Area: 71-1/2 x 12-1/2"

Manuals and documents

Standard features

Sealed direct-vent system routes combustion exhaust outdoors through approved venting.

IntelliFire Touch ignition, factory-paired touchscreen remote and battery-backup capability.

Crystal glass firebed is the brochure's standard presentation; alternate colors and natural logs are optional. Final supplied media kit and quantities are confirmed with the appliance order.

Required components

A compatible decorative barrier front must be separately selected and ordered; the fireplace must not operate without the specified glass and protective barrier.

Listed vent pipe, termination and required support/firestop/flashing components are selected for the actual route. Gas supply, electrical connection, framing and compliant finishing are installation work quoted separately.

Optional features and accessories

Controls, Remotes and Switches: Wall Switch; Wall Switch Kit with battery backup; Wi-Fi Module for IntelliFire App. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Decorative Interior panels: Reflective Black Glass. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Fire bed material: Amber; Cobalt Blue; Ebony; Scarlet. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Hand-Painted Logs: Natural (requires media). Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Heat Management: Ducted Passive Heat kit for front discharge; Ducted vent trim for front discharge using ducted Passive Heat; Heat Out; Heat Zone; Passive Heat Side Trim. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Lighting: Ambient Light Kit. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Mantel Shelves: Non-Combustible Cove Gray 60"; Non-Combustible Cove Gray 72"; Non-Combustible Midnight Mist 60"; Non-Combustible Midnight Mist 72"; Non-Combustible Tavern Brown 60"; Non-Combustible Tavern Brown 72"; Non-Combustible Washed Cedar 60"; Non-Combustible Washed Cedar 72"; Non-Combustible Weathered Barnwood 60"; Non-Combustible Weathered Barnwood 72"; Non-Combustible White 60"; Non-Combustible White 72". Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Required fuel configuration

(required)

Other selections

Natural gas
Propane — listed appliance or certified conversion

Select the fuel matching the rating plate; any required conversion kit is separately quoted.

Included Controls, Remotes and Switches

Remote Touchscreen — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Remote Touchscreen** Included
Included component; no additional kit is required for the standard configuration.

Included component; no additional kit is required for the standard configuration.

Optional Controls, Remotes and Switches

Wall Switch — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Wall Switch** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Wall Switch Kit with battery backup — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Wall Switch Kit with battery backup** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Wi-Fi Module for IntelliFire App — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Wi-Fi Module for IntelliFire App** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Decorative Interior panels

Reflective Black Glass — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Reflective Black Glass** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Fire bed material

Amber — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Amber** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Cobalt Blue — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Cobalt Blue** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Ebony — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Ebony** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Scarlet — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Scarlet** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Included Fire bed material

Crystal — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Crystal** Included
Included component; no additional kit is required for the standard configuration. Use only listed HHT media and the manual's placement and quantity instructions.

Included component; no additional kit is required for the standard configuration. Use only listed HHT media and the manual's placement and quantity instructions.

Required Fronts and Doors

(required)

Clean Face Trim — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Clean Face Trim — Black** Required separately
Order a compatible, model-sized decorative barrier front separately.

Black finish swatch for Clean Face Trim — **Black finish** Required separately
Illustrative finish sample; actual material color may vary.

New Bronze finish swatch for Clean Face Trim — **New Bronze finish** Required separately
Illustrative finish sample; actual material color may vary.

Stainless Steel finish swatch for Clean Face Trim — **Stainless Steel finish** Required separately
Illustrative finish sample; actual material color may vary.

Order a compatible, model-sized decorative barrier front separately.

Optional Hand-Painted Logs

Natural (requires media) — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Natural (requires media)** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Heat Management

Ducted Passive Heat kit for front discharge — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Ducted Passive Heat kit for front discharge** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Ducted vent trim for front discharge using ducted Passive Heat — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Ducted vent trim for front discharge using ducted Passive Heat** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Heat Out Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Heat Zone Optional

Passive Heat Side Trim Optional

Optional Lighting

Ambient Light Kit — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Ambient Light Kit** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Mantel Shelves

Non-Combustible Cove Gray 60" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Cove Gray 60"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Cove Gray 72" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Cove Gray 72"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Midnight Mist 60" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Midnight Mist 60"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Midnight Mist 72" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Midnight Mist 72"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Tavern Brown 60" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Tavern Brown 60"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Tavern Brown 72" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Tavern Brown 72"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Washed Cedar 60" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Washed Cedar 60"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Washed Cedar 72" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Washed Cedar 72"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Weathered Barnwood 60" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Weathered Barnwood 60"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Weathered Barnwood 72" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible Weathered Barnwood 72"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible White 60" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible White 60"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible White 72" — manufacturer accessory illustration for Crave72 Rev C; appearance may show a different size or finish — **Non-Combustible White 72"** Optional
Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Technical notes

For indoor installation by a qualified hearth installer. Match fuel, model revision and rating plate. Gas input is not heat delivered to the room; altitude, fuel and configuration affect performance.

Framing dimensions are planning information, not a complete clearance schedule. Follow the linked installation manual for vent lengths, elbows, termination clearances, combustible mantels, facing and enclosure requirements.

Battery backup supports eligible ignition operation; fans, lights, Wi-Fi, heat-management fans and power vents may require household power and may be unavailable during an outage.

Manufacturer gallery and accessory illustrations may show another size in the same series and optional fronts, media, liners, mantels, heat kits or lighting. These are not all included.

Use as supplemental room heat or a decorative appliance as listed; do not size the home's primary heating system around this fireplace.

Any advertised 12 in TV placement depends on the separately installed Passive Heat system, its exact outlet layout, the installation manual and the television manufacturer's temperature limits; it is not a standard clearance.

View the manufacturer’s product page
