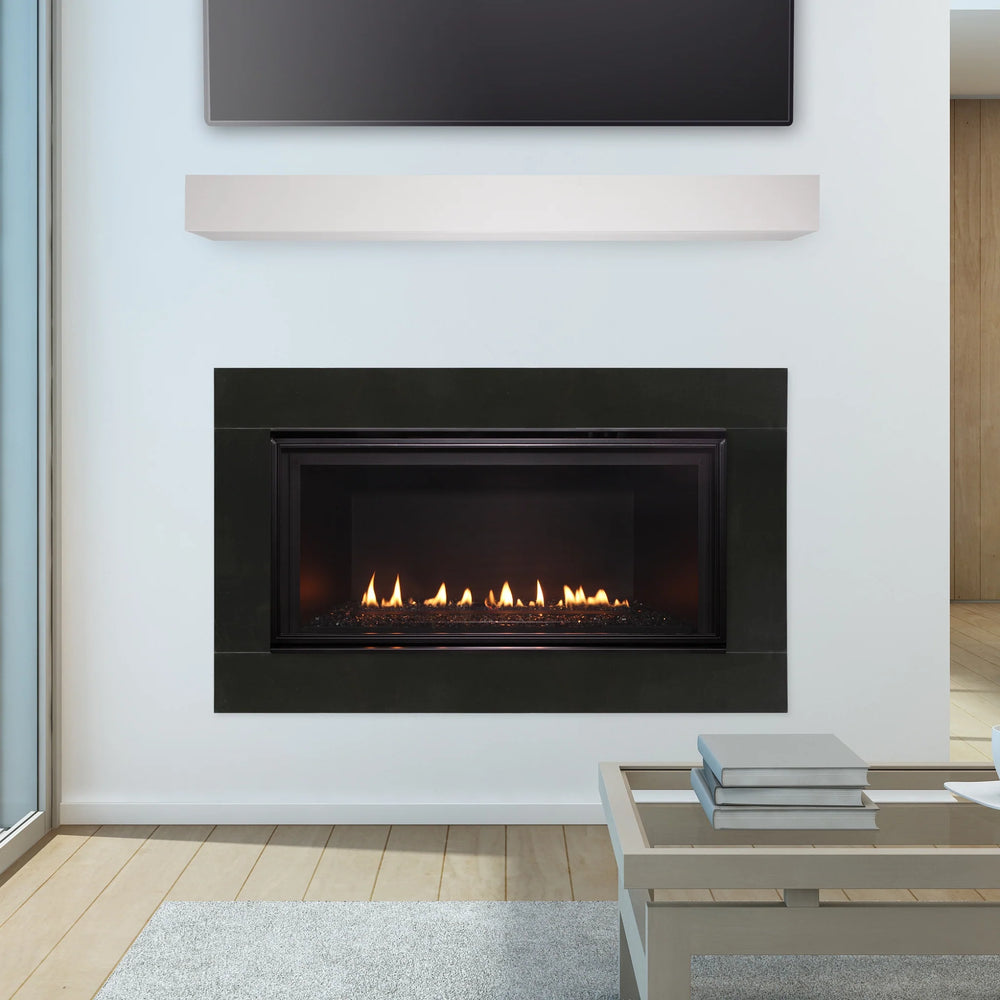

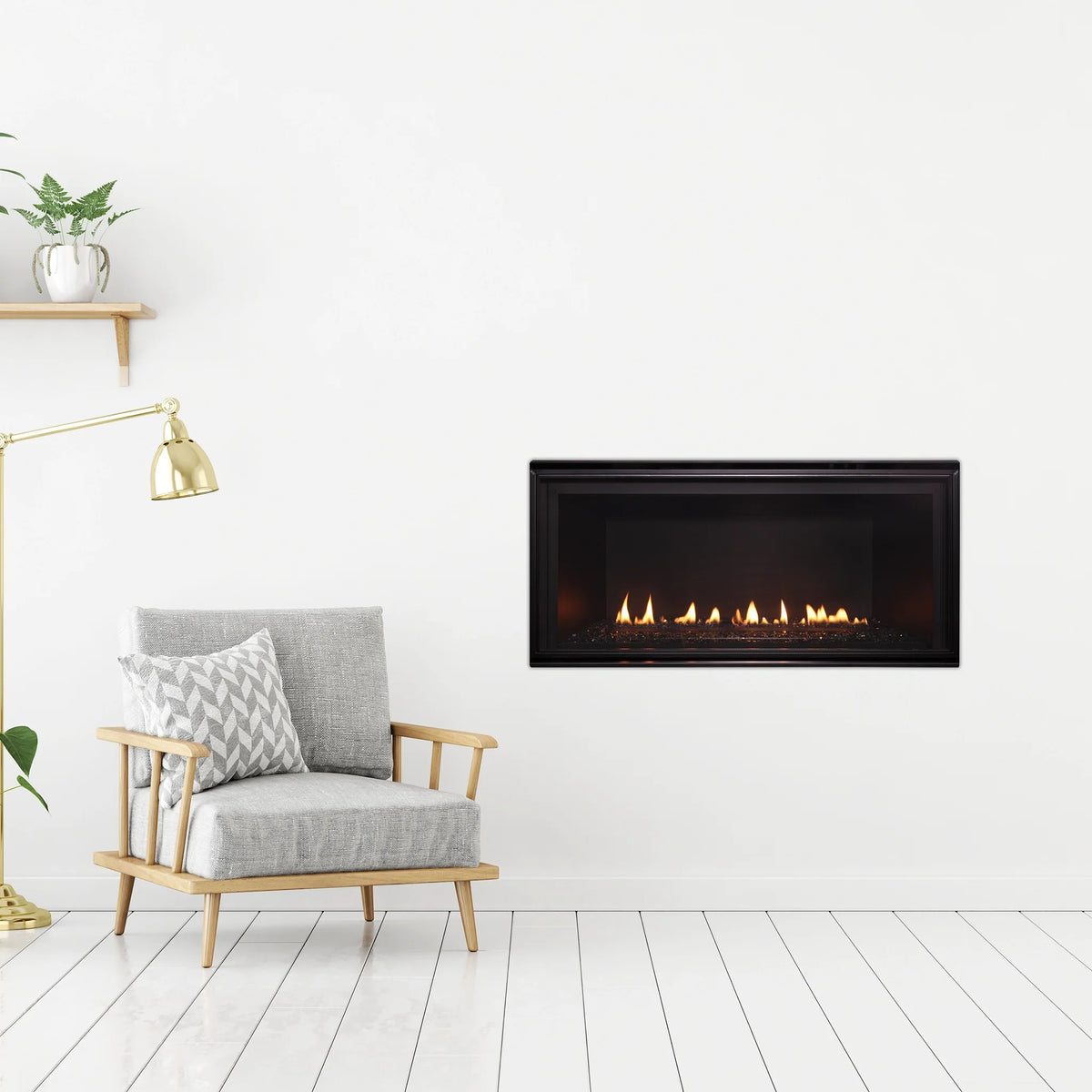

HHT DVLINEAR36 manufacturer room setting; mantel, surround and optional finishing are not included HHT DVLINEAR36 with black granite finishing; granite and project finishing are separate

Manufacturer photography may show optional finishes and accessories.

Hearth & Home Technologies

HHT DVLINEAR36 Linear Gas Fireplace

Model: DVLINEAR36

Starting at

$2,429.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Hearth & Home Technologies

About this model

A clean horizontal fire for a contemporary room. The HHT DVLINEAR36 combines black glass media with IntelliFire ignition and a 16,500 BTU/h input rating, making it a choice to explore when ambiance and a linear look lead your project.

The nominal 36-inch model has a 32¼ × 15¼-inch viewing area. Start with its 42-inch framing width and 17¾-inch planning depth, then have Washburn’s review the full installation requirements.

Onyx glass media and the black front are standard. A compatible remote and an approved Passive Heat system are optional. Natural gas is the base configuration; propane requires the specified conversion kit.

Specifications
Manufacturer model
DVLINEAR36
Brand
Hearth & Home Technologies (HHT)
Installation
Indoor built-in direct-vent gas fireplace
Style
Contemporary linear / glass media
Fuel
Natural gas; propane with the approved conversion kit
Natural gas / propane input at 0–2,000 ft
16,500 BTU/h
Viewing Area
32 1/4 x 15 1/4"
Nominal model size
36" — not the viewing width
Unit Width
41"
Unit Height
33 11/16"
Unit Depth
17 3/4"
Framing Width — planning only
42"
Framing Height — planning only
32 3/4"
Framing Depth — planning only
17 3/4"
Venting
Top vent; 4" x 6 5/8" SLP vent system
Ignition
IntelliFire intermittent pilot
Manuals and documents
Standard features

Onyx black glass media and black clean-face decorative barrier front.

IntelliFire ignition, tempered viewing glass and battery-backup capability.

Junction box and gas flex connector.

Required components

Listed vent components, termination and supports matched to the route; gas supply, electrical work where needed, framing and compliant finishing.

The required decorative barrier front must remain installed. Installation and fuel setup must follow the supplied appliance manual.

Optional features and accessories

Compatible remote control or wall switch, ordered separately.

Approved Passive Heat components and outlets may offer additional design flexibility. TV and finishing clearances depend on the complete installed system.

Listed propane conversion kit for a propane project; conversion and labor are quoted separately.

Features & options

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Fuel configuration

(required)

Other selections

  • Natural gas
  • Propane with listed conversion kit

Confirm the supplied unit and certified conversion kit in your quote.

Optional controls

Other selections

  • Compatible remote
  • Compatible wall switch

Exact accessory and functions depend on the appliance revision.

Optional heat management

Other selections

  • Ask about Passive Heat

We will review the approved kit, outlets, trim and installation requirements.

Technical notes

Framing dimensions are for initial planning. The installation manual for the supplied model and revision governs the full clearance, venting, enclosure and finishing requirements.

BTU/h figures describe fuel input at 0–2,000 ft, not heat delivered to the room. These fireplaces provide supplemental heat or ambiance; no whole-home heating or square-footage capacity is claimed.

Manufacturer photography may show optional trim, mantels and stone finishing. Those items are not included with the fireplace.

Battery-backup ignition does not provide household electrical power for an optional fan or powered venting.

HHT offers a limited warranty with coverage and exclusions stated in the owner's manual. Confirm the exact fuel and appliance rating plate before ordering.

The brochure's nominal 36-inch description is separate from the measured 32¼-inch viewing width. Passive Heat changes framing and finishing requirements.
