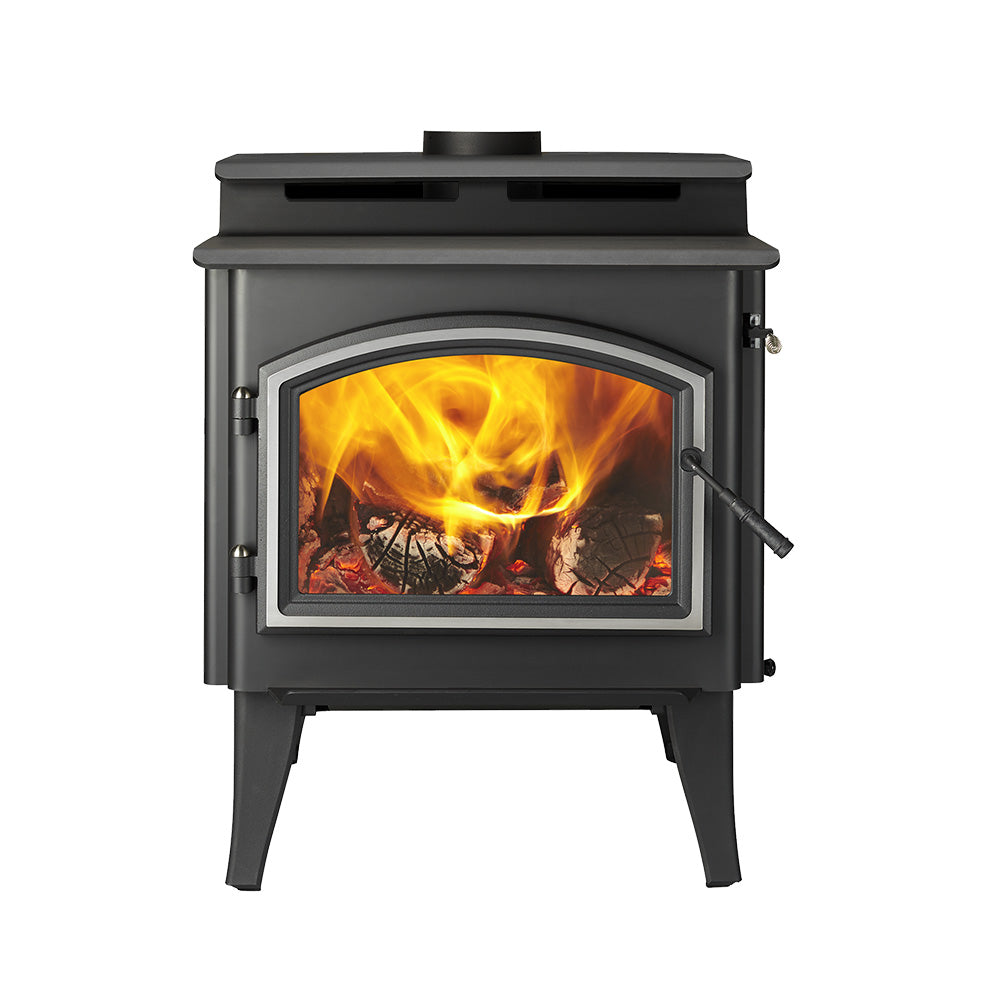

Quadra-Fire 5700 Step Top manufacturer product view; optional features may be shown

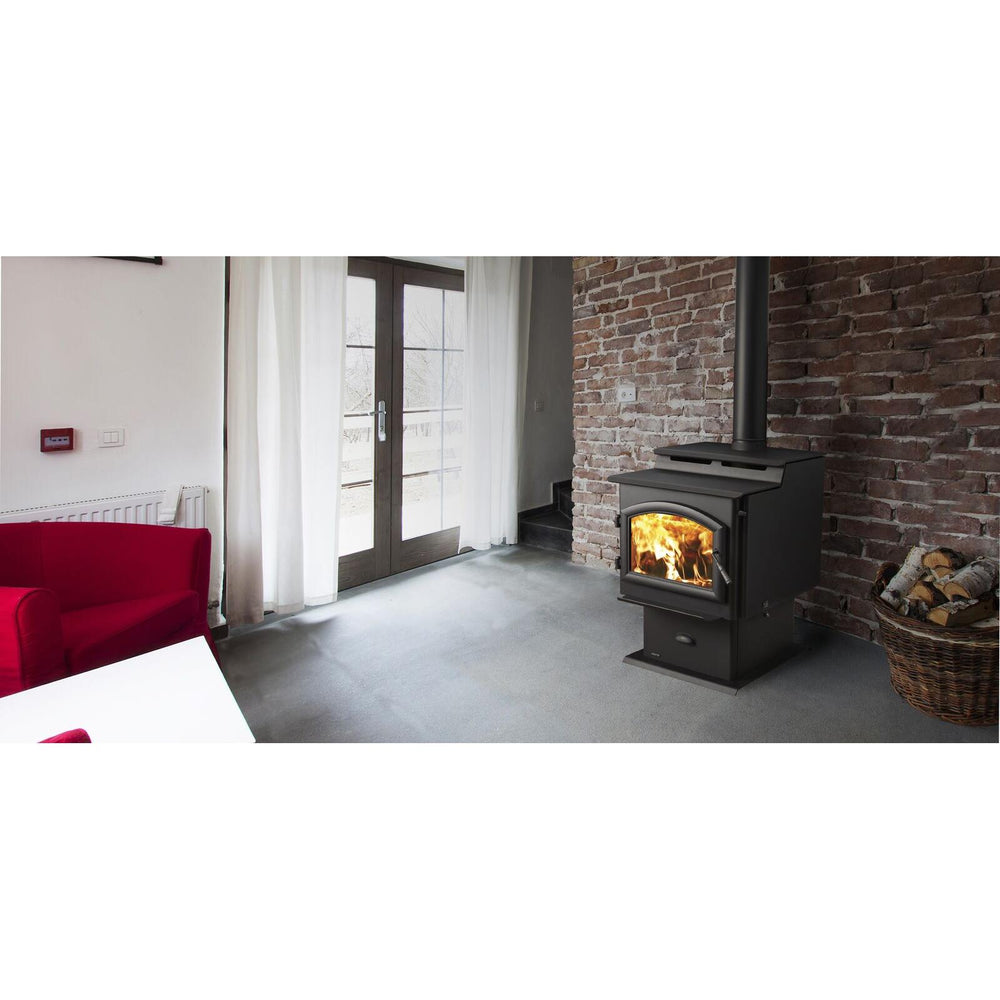

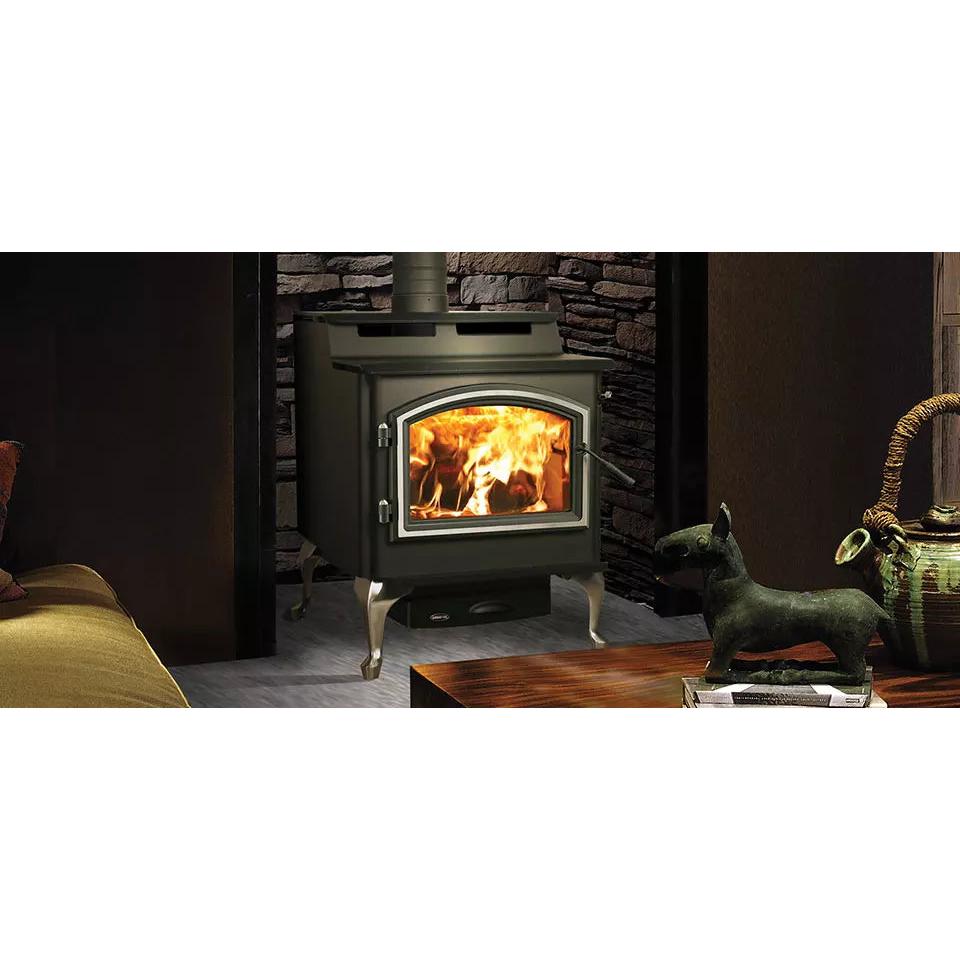

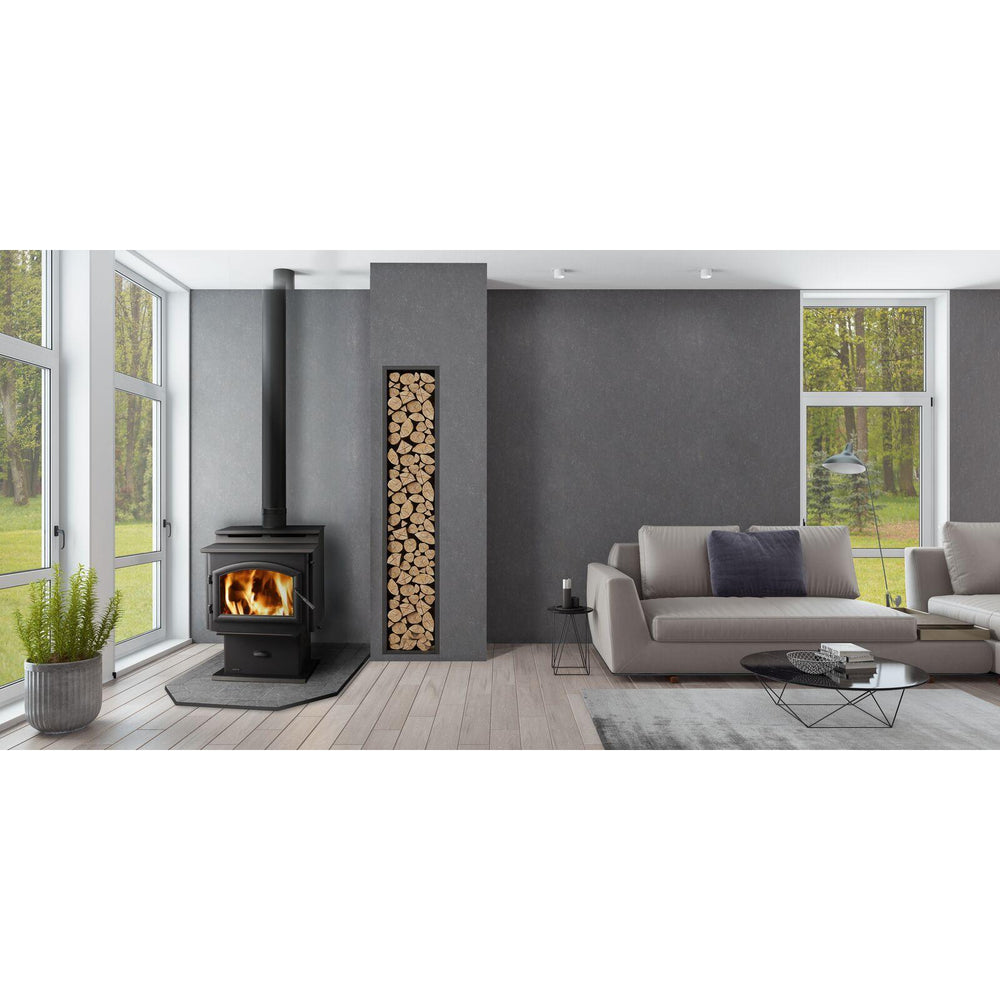

Quadra-Fire 5700 Step Top manufacturer room-setting view; optional features may be shown

Manufacturer photography may show optional finishes and accessories.

Quadra-Fire

Quadra-Fire 5700 Step Top Wood Stove

Model: 5700 Step Top / 57ST-ACC-C

Starting at

$3,767.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Quadra-Fire

About this model

The Quadra-Fire 5700 Step Top brings wood heat to spaces of approximately 1,400–3,700 square feet, depending on your home and climate. Its Automatic Combustion Control provides a timed air boost for startup and tending the fire, while the Four-Point Burn System supports efficient combustion.

A 3.0 cubic-foot firebox accepts recommended 22-inch logs. Choose your base and arched-door configuration, then add optional hardware and a fan kit. Washburn’s can help select the venting and installation components for your room.

Manufacturer imagery may show optional features. Starting price is for the product only; installation, venting, finishing, delivery, accessories and tax are separate.

Specifications

Manufacturer model: 57ST-ACC-C
Fuel: Seasoned cord wood
Appliance dimensions W × H × D: 27 × 37-11/16 × 32-3/8 in (manufacturer product page; configuration and brochure dimensions differ)
Heating area: 1,400–3,700 sq ft; guideline dependent on climate, home efficiency and air movement
Peak heat output: 72,100 BTU/hr; calculated maximum first-hour output, not continuous output
Maximum burn time: Up to 15 hours; varies with wood, load, draft and operation
Efficiency LHV / HHV: 80 / 74%; rounded weighted EPA-test averages
Emissions: 1.8 g/hr
Firebox volume: 3.0 cu ft; rounded brochure value
Recommended log length: 22 in
Viewing area: 187 sq in
Weight: 434 lb; brochure value

Manuals and documents

Standard features

Classic Black 5700 Step Top wood stove with Automatic Combustion Control and Quadra-Fire Four-Point Burn System.

The timed ACC air boost helps light a fire or refresh combustion, then closes automatically after about 20 minutes.

EPA-certified wood-burning appliance with a 3.0 cu ft firebox and 187 sq in viewing area.

Required components

A correctly sized chimney system, connector and hearth protection must be selected for the installation; these are not included in the product-only starting price.

Select the required base and door configuration. Pedestal and Queen Anne leg configurations include an ash pan; traditional cast legs do not.

Outside combustion air is required for mobile-home installations. Follow the exact installation manual for location, grounding, venting and structural requirements.

Optional features and accessories

Base choices: satin nickel Queen Anne legs, black Queen Anne legs, pedestal base or traditional cast legs. Door choices: black arched, black with satin nickel hinge pins and air control, or black with satin nickel trim.

Optional satin nickel door upgrade kit changes hinge pins and air-control handle.

An optional fan kit circulates heat into the room. Accessories are separately selected and quoted; no option charges are included here.

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Included features

5700 Step Top: Automatic Combustion Control — official manufacturer illustration — **Automatic Combustion Control** Included
Timed combustion-air boost assists startup and closes automatically in about 20 minutes.

5700 Step Top: Four-Point Burn System — official manufacturer illustration — **Four-Point Burn System** Included
Quadra-Fire combustion technology.

EPA certified Included

Manufacturer lists 1.8 g/hr emissions.

5700 Step Top: Classic Black finish — official manufacturer illustration — **Classic Black finish** Included
Classic Black stove finish.

Base

(required)

5700 Step Top: Satin Nickel Queen Anne Legs — official manufacturer illustration — **Satin Nickel Queen Anne Legs**
Select one base configuration.

5700 Step Top: Black Queen Anne Legs — official manufacturer illustration — **Black Queen Anne Legs**
Select one base configuration.

5700 Step Top: Pedestal Base — official manufacturer illustration — **Pedestal Base**
Select one base configuration.

5700 Step Top: Cast Legs — official manufacturer illustration — **Cast Legs**
Select one base configuration.

Required configuration selection; confirm the complete package and price in your quote. Pedestal and Queen Anne legs include an ash pan; traditional cast legs do not.

Door

(required)

5700 Step Top: Black Arched Door with Satin Nickel Hinge Pins & Air Control — official manufacturer illustration — **Black Arched Door with Satin Nickel Hinge Pins & Air Control**
Door configuration shown; confirm included hardware in quote.

5700 Step Top: Black Arched Door with Satin Nickel Trim — official manufacturer illustration — **Black Arched Door with Satin Nickel Trim**
Door configuration shown; confirm included hardware in quote.

Select the door configuration; upgraded trim and hardware affect the quote.

Door hardware upgrade

5700 Step Top: Satin Nickel Door Upgrade Kit — official manufacturer illustration — **Satin Nickel Door Upgrade Kit** Optional
Optional satin nickel hinge pins and air-control handle.

Other selections

No upgrade

Fan kit

Other selections

No fan kit

Technical notes

Heating area and burn time are guidelines, not guarantees. Performance depends on wood moisture, fuel load, chimney draft, climate, building efficiency and operation. Efficiency values are rounded weighted EPA-test averages; peak BTU/hr is a first-hour calculation.

Use the current manual supplied with the appliance to determine combustible clearances, hearth dimensions, chimney requirements and permitted installation. Do not size an installation from product photographs.

Published dimensions differ: the page lists 27 × 37-11/16 × 32-3/8 in; the brochure lists a pedestal height of 37-1/4 in, leg height 33-7/8 in and depth 32-5/8 in. Confirm selected-base dimensions from the current installation manual before planning.

Manufacturer photos may include optional trim, hardware, bases or other accessories. Room finishes and installation materials are not included.

View the manufacturer’s product page

Quadra-Fire

Make it yours.

Choose the options you want us to include in your inquiry. We will review your model, selected options, and installation requirements before preparing a quote.

Quadra-Fire 5700 Step Top Wood Stove

Base (required)

Required configuration selection; confirm the complete package and price in your quote. Pedestal and Queen Anne legs include an ash pan; traditional cast legs do not.

Door (required)

Select the door configuration; upgraded trim and hardware affect the quote.

Door hardware upgrade (optional)

Fan kit (optional)

Installation project (required)

Installation and materials are quoted separately.
