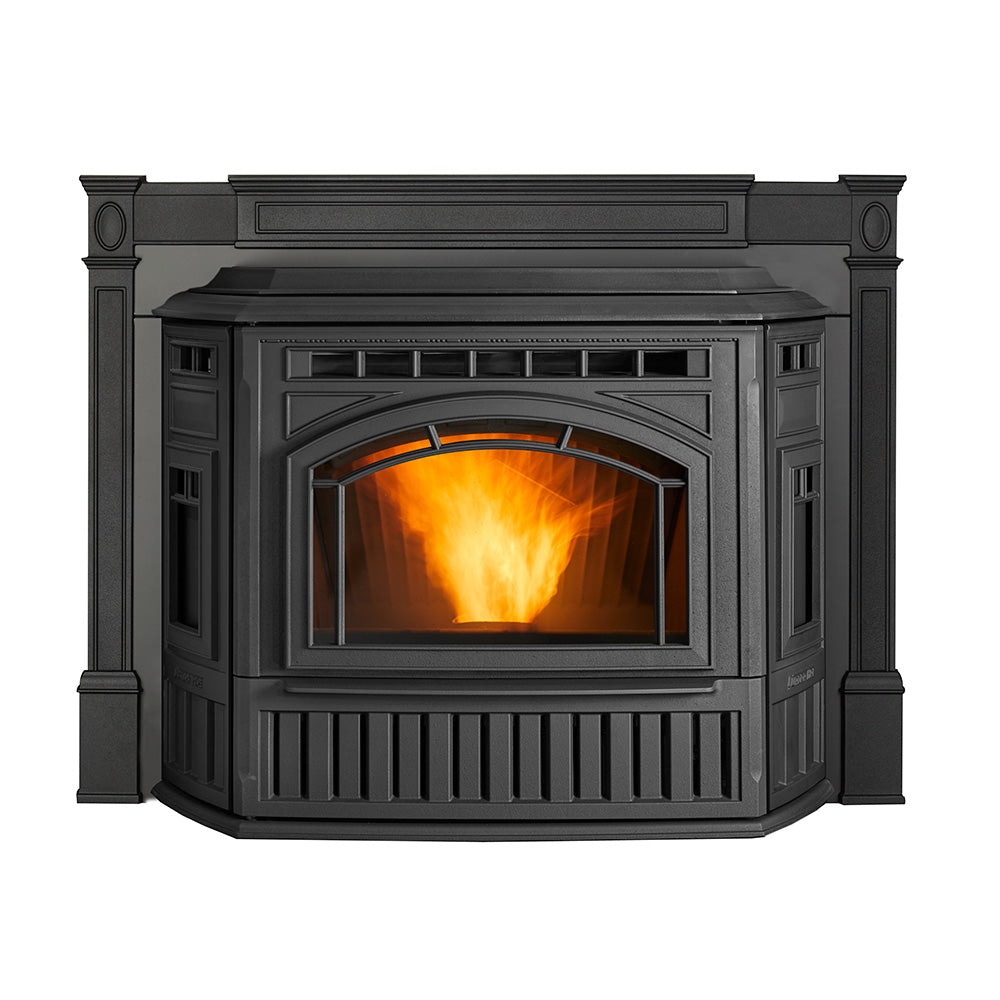

Quadra-Fire Trekker Pellet Insert product view; optional finish and accessories may be shown

Manufacturer photography may show optional finishes and accessories.

Quadra-Fire

Quadra-Fire Trekker Pellet Insert

Model: Trekker Pellet Insert / TREKKERI-MBK

Starting at

$5,558.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Quadra-Fire

About this model

The Quadra-Fire Trekker Pellet Insert combines cast-iron construction with Efficient Energy (E2) technology for pellet heat in spaces up to approximately 2,900 square feet, depending on climate and home efficiency. A 52-pound hopper, easy-clean firepot and standard programmable thermostat simplify daily operation.

Choose Classic Black, Porcelain Mahogany or Porcelain Twilight, then select a surround to fit your fireplace. An optional remote and decorative logs let you personalize the installation. Washburn’s can help select the venting, finish and installation components.

Starting price is for the product only. Installation, venting, finishing, delivery, accessories and tax are separate; photos may show optional features.

Specifications

Manufacturer model: TREKKERI-MBK (Classic Black; other finishes separately selected)
Fuel: Premium wood pellets only
Hopper capacity: 52 lb; pellet density and shape affect capacity
Heating capacity: 1,300–2,900 sq ft; guideline based on climate and home efficiency
BTU/hr input: 16,400–51,000 (rounded manufacturer page range); fuel input is not heat output
Efficiency: 83% LHV / 78% HHV, rounded weighted EPA-test averages; manufacturer overview states 83.2% LHV
Emissions: 0.74 g/hr
Viewing area: 217 sq in on model page; brochure lists 284 sq in — confirm if critical
Electrical supply: 115 VAC, 60 Hz; 2.9 A startup / 2.45 A running
Weight: 425 lb (brochure)
Minimum fireplace opening: 24-3/8 in H × 32-1/4 in front W × 24-1/8 in rear W; minimum depth 16-5/8 in with steel panels or 16-1/4 in with cast panels; consult current manual
Appliance face dimensions: 32 in W × 29-3/4 in H; surround dimensions vary

Manuals and documents

Standard features

Efficient Energy (E2) combustion technology, a cast-iron heat exchanger, easy-clean cast-iron firepot and cast-iron exterior.

52 lb hopper, color dial control and standard 7-day wired programmable wall thermostat, as listed on the current product page.

EPA-certified pellet combustion at 0.74 g/hr. Five manual heat settings and automatic room-temperature control support everyday operation.

Required components

A compliant pellet vent system, electrical supply, hearth protection and installation components must be separately selected.

An appropriately sized surround is required to cover the gap between the insert and the fireplace opening. Fireplace suitability and liner requirements must be checked against the installation manual.

OAK-3 outside-air kit is required for mobile-home installation. Follow the manual’s grounding, structural and placement requirements; mobile-home installation in a sleeping room is not permitted.

Optional features and accessories

Finish choices are Classic Black, Porcelain Mahogany and Porcelain Twilight. Upgraded finishes are separately quoted.

Optional Smart Stat remote and decorative log set.

Required surround choices include basic metal and cast trim in Matte Black, Twilight or Porcelain Mahogany. Optional mantel shelves include Baxter, Crosby, Fillmore, Ozark and six Supercast concrete finishes shown below.

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Included controls and certification

Trekker Pellet Insert — Color dial control, manufacturer illustration — **Color dial control** Included
Standard color dial. Manufacturer uses this shared control illustration.

Trekker Pellet Insert — 7-day wired programmable thermostat, manufacturer illustration — **7-day wired programmable thermostat** Included
Current model page identifies a wired thermostat as standard.

EPA certification Included

EPA-certified pellet-burning appliance.

Finish

(required)

Trekker Pellet Insert — Classic Black, manufacturer illustration — **Classic Black**
Listed stove finish.

Trekker Pellet Insert — Porcelain Mahogany, manufacturer illustration — **Porcelain Mahogany**
Optional upgraded finish; quote required.

Trekker Pellet Insert — Porcelain Twilight, manufacturer illustration — **Porcelain Twilight**
Optional upgraded finish; quote required.

Select one finish; the model starting price does not establish the price of every finish.

Optional remote

Trekker Pellet Insert — Smart Stat remote, manufacturer illustration — **Smart Stat remote** Optional
Wireless remote control; optional in addition to standard controls.

Other selections

Standard controls only

Decorative logs

Trekker Pellet Insert — Log Set, manufacturer illustration — **Log Set** Optional
Decorative pellet-appliance log set; wood logs are not fuel for this appliance.

Other selections

No log set

Surround

(required)

Trekker Pellet Insert — Cast Trim Surround — Matte Black, manufacturer illustration — **Cast Trim Surround — Matte Black**
Required separately selected surround configuration; final fit and price confirmed in quote.

Trekker Pellet Insert — Cast Trim Surround — Twilight, manufacturer illustration — **Cast Trim Surround — Twilight**
Required separately selected surround configuration; final fit and price confirmed in quote.

Trekker Pellet Insert — Cast Trim Surround — Porcelain Mahogany, manufacturer illustration — **Cast Trim Surround — Porcelain Mahogany**
Required separately selected surround configuration; final fit and price confirmed in quote.

A surround is required to cover the gap at the existing fireplace; choose size and trim to suit the opening.

Optional mantel shelf

Trekker Pellet Insert — Baxter Mantel Shelf, manufacturer illustration — **Baxter Mantel Shelf** Optional
Optional wood shelf; observe combustible mantel clearances.

Trekker Pellet Insert — Crosby Mantel Shelf, manufacturer illustration — **Crosby Mantel Shelf** Optional
Optional wood shelf; observe combustible mantel clearances.

Trekker Pellet Insert — Fillmore Mantel Shelf, manufacturer illustration — **Fillmore Mantel Shelf** Optional
Optional wood shelf; observe combustible mantel clearances.

Trekker Pellet Insert — Ozark Mantel Shelf, manufacturer illustration — **Ozark Mantel Shelf** Optional
Optional wood shelf; observe combustible mantel clearances.

Trekker Pellet Insert — Cove Gray Mantel Shelf, manufacturer illustration — **Cove Gray Mantel Shelf** Optional
Optional noncombustible Supercast concrete shelf; observe installation requirements.

Trekker Pellet Insert — Midnight Mist Mantel Shelf, manufacturer illustration — **Midnight Mist Mantel Shelf** Optional
Optional noncombustible Supercast concrete shelf; observe installation requirements.

Trekker Pellet Insert — White Mantel Shelf, manufacturer illustration — **White Mantel Shelf** Optional
Optional noncombustible Supercast concrete shelf; observe installation requirements.

Trekker Pellet Insert — Tavern Brown Mantel Shelf, manufacturer illustration — **Tavern Brown Mantel Shelf** Optional
Optional noncombustible Supercast concrete shelf; observe installation requirements.

Trekker Pellet Insert — Washed Cedar Mantel Shelf, manufacturer illustration — **Washed Cedar Mantel Shelf** Optional
Optional noncombustible Supercast concrete shelf; observe installation requirements.

Trekker Pellet Insert — Weathered Barnwood Mantel Shelf, manufacturer illustration — **Weathered Barnwood Mantel Shelf** Optional
Optional noncombustible Supercast concrete shelf; observe installation requirements.

Other selections

No shelf

Wood shelf family lengths: 48, 59 or 72 in; Supercast concrete: 60 or 72 in. Available lengths vary by design. Confirm mantel clearance and compatibility for the chosen installation.

Technical notes

Use premium wood pellets only. Heating capacity is a guide and varies with climate, building efficiency, appliance location and air movement. Hopper capacity depends on fuel shape and density.

The current model page lists wired controls as standard. Some brochure text describes an earlier wireless arrangement; the current model page and applicable serial-number manual govern.

The model page labels 13-1/8 in as appliance depth, but the installation drawing uses that measurement for the forward portion. Do not use it as total depth or minimum opening depth. Minimum fireplace opening dimensions are provided separately. The brochure and model page also differ on viewing area.

Manufacturer photos may show optional finishes, logs, surrounds or room materials. These are not all included in the model’s starting price.

Mantel, wall, hearth and vent clearances depend on the installation. The manual supplied with the appliance governs final layout and component selection.
