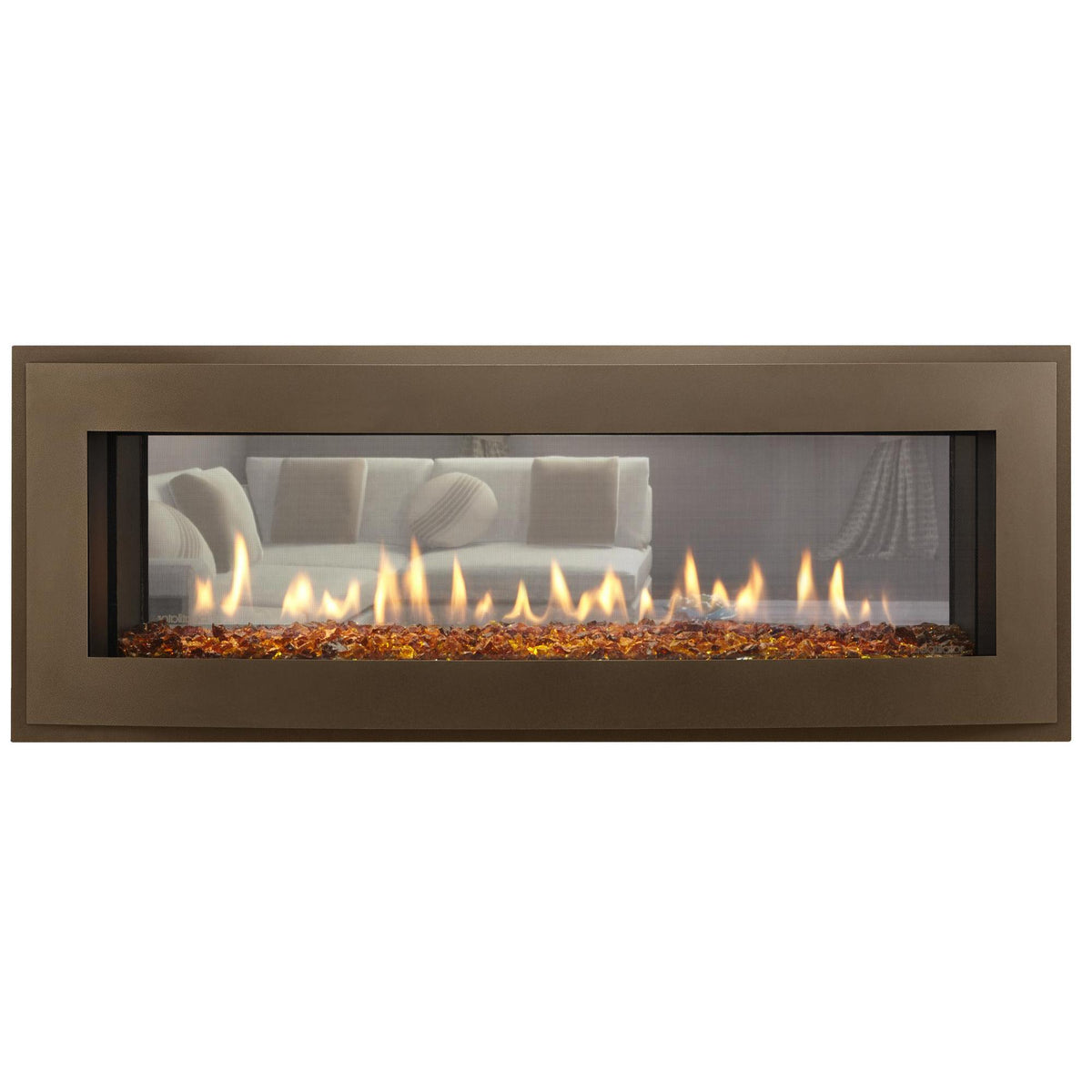

Crave48-SeeThrough_SO_AmberMedia_unit-only — official Crave See-Through Series Gas Fireplace series image; may show a different size and separately selected options Crave See-through series Gas Fireplace — official Crave See-Through Series Gas Fireplace series image; may show a different size and separately selected options gas fireplace — official Crave See-Through Series Gas Fireplace series image; may show a different size and separately selected options Crave gas fireplace — official Crave See-Through Series Gas Fireplace series image; may show a different size and separately selected options

Manufacturer photography may show optional finishes and accessories.

Heatilator

Heatilator Crave 36 See-Through Rev C Gas Fireplace

Model: CRAVE4836ST-C

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Heatilator

About this model

The Crave See-Through presents its linear flame to two adjoining indoor spaces. Its two-sided firebox is a distinct configuration from the single-sided Crave, with finishing selections on both viewing sides.

This listing is for Crave 36 See-Through Rev C (CRAVE4836ST-C). Choose fuel and required finishing components in your quote. Other sizes and see-through configurations are separate models.

Installation, venting, materials, finishing, delivery, optional accessories and tax are separate. Manufacturer images may show optional features.

Specifications
Manufacturer model
CRAVE4836ST-C
Fuel
Natural gas or propane, using the listed configuration / certified conversion kit
Natural gas input at 0–2,000 ft
17,500–30,000 BTU/h
Propane input at 0–2,000 ft
15,500–29,000 BTU/h
Planning framing W × H × D
48-1/4 × 42 × 17 in; stud-to-stud planning dimensions only. Use current installation manual and selected vent/heat-management layout.
Viewing Area
35-1/2 x 12-1/2"
Appliance classification
Decorative gas appliance; no thermostat operation
Manuals and documents
Standard features

Sealed direct-vent system routes combustion exhaust outdoors through approved venting.

Two-sided indoor viewing, IntelliFire Touch ignition, factory-paired touchscreen remote and battery-backup capability.

Crystal glass firebed is the brochure's standard presentation; alternate colors and natural logs are optional. Final supplied media kit and quantities are confirmed with the appliance order.

Required components

A compatible decorative barrier front must be separately selected and ordered; the fireplace must not operate without the specified glass and protective barrier.

Listed vent pipe, termination and required support/firestop/flashing components are selected for the actual route. Gas supply, electrical connection, framing and compliant finishing are installation work quoted separately.

Optional features and accessories

Controls, Remotes and Switches: Wall Switch; Wall Switch Kit with battery backup; Wi-Fi Module for IntelliFire App. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Decorative Interior panels: Reflective Black Glass. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Fire bed material: Amber; Cobalt Blue; Ebony; Scarlet. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Hand-Painted Logs: Natural Log Set (requires media). Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Heat Management: Ducted Passive Heat kit for front discharge; Ducted vent trim for front discharge using ducted Passive Heat; Heat Out; Heat Zone; Passive Heat Front Trim Kit; Passive Heat Side Trim. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Lighting: Ambient Light Kit. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Mantel Shelves: Non-Combustible Cove Gray 60"; Non-Combustible Midnight Mist 60"; Non-Combustible Tavern Brown 60"; Non-Combustible Washed Cedar 60"; Non-Combustible Weathered Barnwood 60"; Non-Combustible White 60". Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Natural Stone Facings: Driftwood - leg set; Driftwood - riser & header. Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Features & options

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Required fuel configuration

(required)

Other selections

  • Natural gas
  • Propane — listed appliance or certified conversion

Select the fuel matching the rating plate; any required conversion kit is separately quoted.

Included Controls, Remotes and Switches

Remote Touchscreen — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Remote Touchscreen Included

Included component; no additional kit is required for the standard configuration.

Included component; no additional kit is required for the standard configuration.

Optional Controls, Remotes and Switches

Wall Switch — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Wall Switch Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Wall Switch Kit with battery backup — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Wall Switch Kit with battery backup Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Wi-Fi Module for IntelliFire App — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Wi-Fi Module for IntelliFire App Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Decorative Interior panels

Reflective Black Glass — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Reflective Black Glass Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Fire bed material

Amber — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Amber Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Cobalt Blue — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Cobalt Blue Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Ebony — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Ebony Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Scarlet — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Scarlet Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Included Fire bed material

Crystal — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Crystal Included

Included component; no additional kit is required for the standard configuration. Use only listed HHT media and the manual's placement and quantity instructions.

Included component; no additional kit is required for the standard configuration. Use only listed HHT media and the manual's placement and quantity instructions.

Required Fronts and Doors

(required)

Clean Face Trim — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Clean Face Trim — Black Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

Black finish swatch for Clean Face Trim
Black finish Required separately

Illustrative finish sample; actual material color may vary.

Clean Face Trim — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Clean Face Trim — Gun Metal Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

Gun Metal finish swatch for Clean Face Trim
Gun Metal finish Required separately

Illustrative finish sample; actual material color may vary.

Clean Face Trim — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Clean Face Trim — New Bronze Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

New Bronze finish swatch for Clean Face Trim
New Bronze finish Required separately

Illustrative finish sample; actual material color may vary.

Clean Face Trim — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Clean Face Trim — Stainless Steel Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

Stainless Steel finish swatch for Clean Face Trim
Stainless Steel finish Required separately

Illustrative finish sample; actual material color may vary.

Four Square 36 — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Four Square 36 — Black Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

Black finish swatch for Four Square 36
Black finish Required separately

Illustrative finish sample; actual material color may vary.

Four Square 36 — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Four Square 36 — New Bronze Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

New Bronze finish swatch for Four Square 36
New Bronze finish Required separately

Illustrative finish sample; actual material color may vary.

Illusion 36 — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Illusion 36 — Black Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

Black finish swatch for Illusion 36
Black finish Required separately

Illustrative finish sample; actual material color may vary.

Illusion 36 — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Illusion 36 — New Bronze Required separately

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

New Bronze finish swatch for Illusion 36
New Bronze finish Required separately

Illustrative finish sample; actual material color may vary.

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

Optional Hand-Painted Logs

Natural Log Set (requires media) — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Natural Log Set (requires media) Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Heat Management

Ducted Passive Heat kit for front discharge — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Ducted Passive Heat kit for front discharge Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Ducted vent trim for front discharge using ducted Passive Heat — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Ducted vent trim for front discharge using ducted Passive Heat Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Heat Out — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Heat Out Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Heat Zone — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Heat Zone Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Passive Heat Front Trim Kit — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Passive Heat Front Trim Kit Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Passive Heat Side Trim — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Passive Heat Side Trim Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Optional Lighting

Ambient Light Kit — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Ambient Light Kit Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Mantel Shelves

Non-Combustible Cove Gray 60" — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Non-Combustible Cove Gray 60" Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Midnight Mist 60" — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Non-Combustible Midnight Mist 60" Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Tavern Brown 60" — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Non-Combustible Tavern Brown 60" Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Washed Cedar 60" — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Non-Combustible Washed Cedar 60" Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible Weathered Barnwood 60" — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Non-Combustible Weathered Barnwood 60" Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Non-Combustible White 60" — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Non-Combustible White 60" Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional Natural Stone Facings

Driftwood - leg set — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Driftwood - leg set Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Driftwood - riser & header — manufacturer accessory illustration for Crave 36 See-Through Rev C; appearance may show a different size or finish
Driftwood - riser & header Optional

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Technical notes

For indoor installation by a qualified hearth installer. Match fuel, model revision and rating plate. Gas input is not heat delivered to the room; altitude, fuel and configuration affect performance.

Framing dimensions are planning information, not a complete clearance schedule. Follow the linked installation manual for vent lengths, elbows, termination clearances, combustible mantels, facing and enclosure requirements.

Battery backup supports eligible ignition operation; fans, lights, Wi-Fi, heat-management fans and power vents may require household power and may be unavailable during an outage.

Manufacturer gallery and accessory illustrations may show another size in the same series and optional fronts, media, liners, mantels, heat kits or lighting. These are not all included.

CRAVE4836-C and CRAVE4836ST-C are decorative gas appliances, not a heat source, and are NOT for use with a thermostat. Generic remote-control thermostat claims do not apply.

Any advertised 12 in TV placement depends on the separately installed Passive Heat system, its exact outlet layout, the installation manual and the television manufacturer's temperature limits; it is not a standard clearance.

View the manufacturer’s product page

Heatilator

Make it yours.

Choose the options you want us to include in your inquiry. We will review your model, selected options, and installation requirements before preparing a quote.

Heatilator Crave 36 See-Through Rev C Gas Fireplace

Select the fuel matching the rating plate; any required conversion kit is separately quoted.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Use only listed HHT media and the manual's placement and quantity instructions.

Order a compatible, model-sized decorative barrier front separately. Both viewing sides must have the required front/barrier.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote. Heat kits, ducts and trim are not interchangeable; the installation must follow the selected kit's drawings. A trim alone is not a complete kit.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Optional accessory; exact size, compatibility, quantities and separate charges are confirmed with the quote.

Installation and materials are quoted separately.

We will use these details to respond to your inquiry.
