KitchenAid® Third Level Utensil Rack Dishwasher with 30+ Total Wash Jets in PrintShield™ Finish 47 dBA
Cards · In-house · Synchrony · BrandSource
Acima lease-to-own · View options
Local help, long after delivery.
KitchenAid · Stainless Steel
Complete your kitchen
In-stock companions in the same brand and finish. Same-series matches appear first.

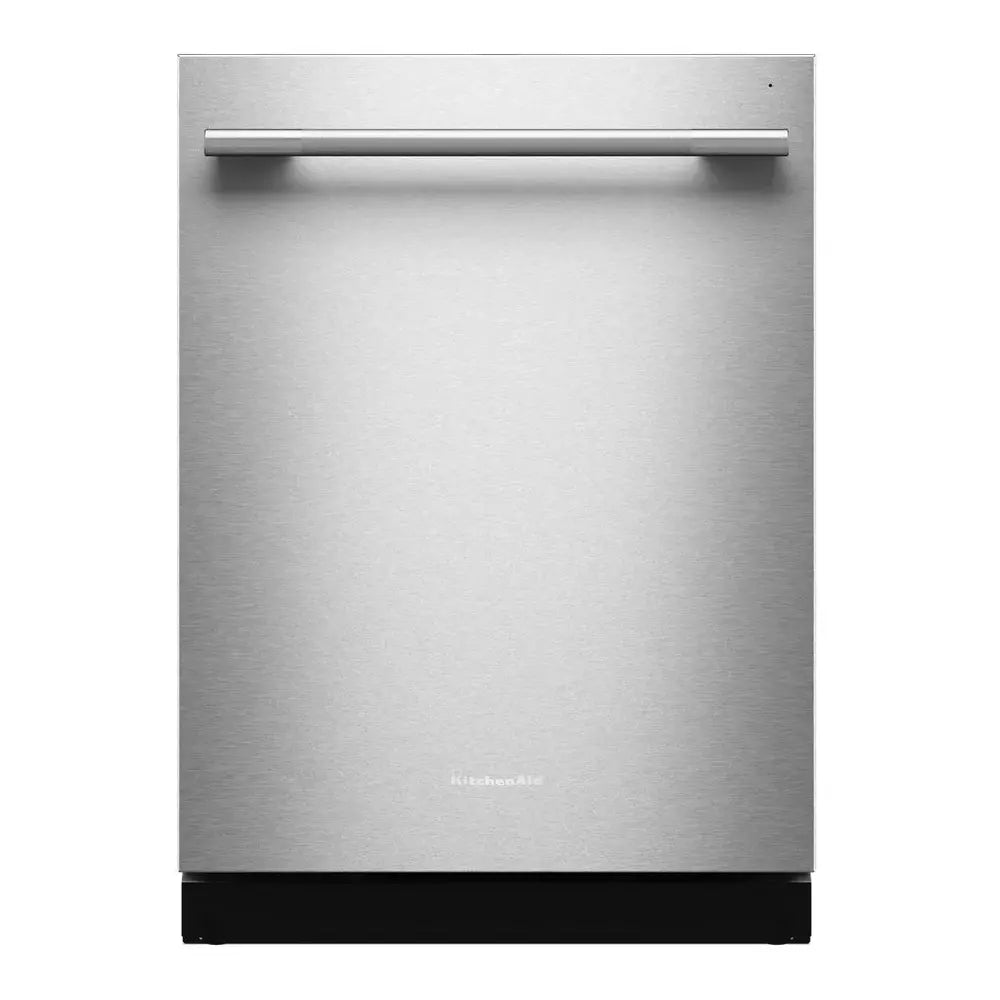

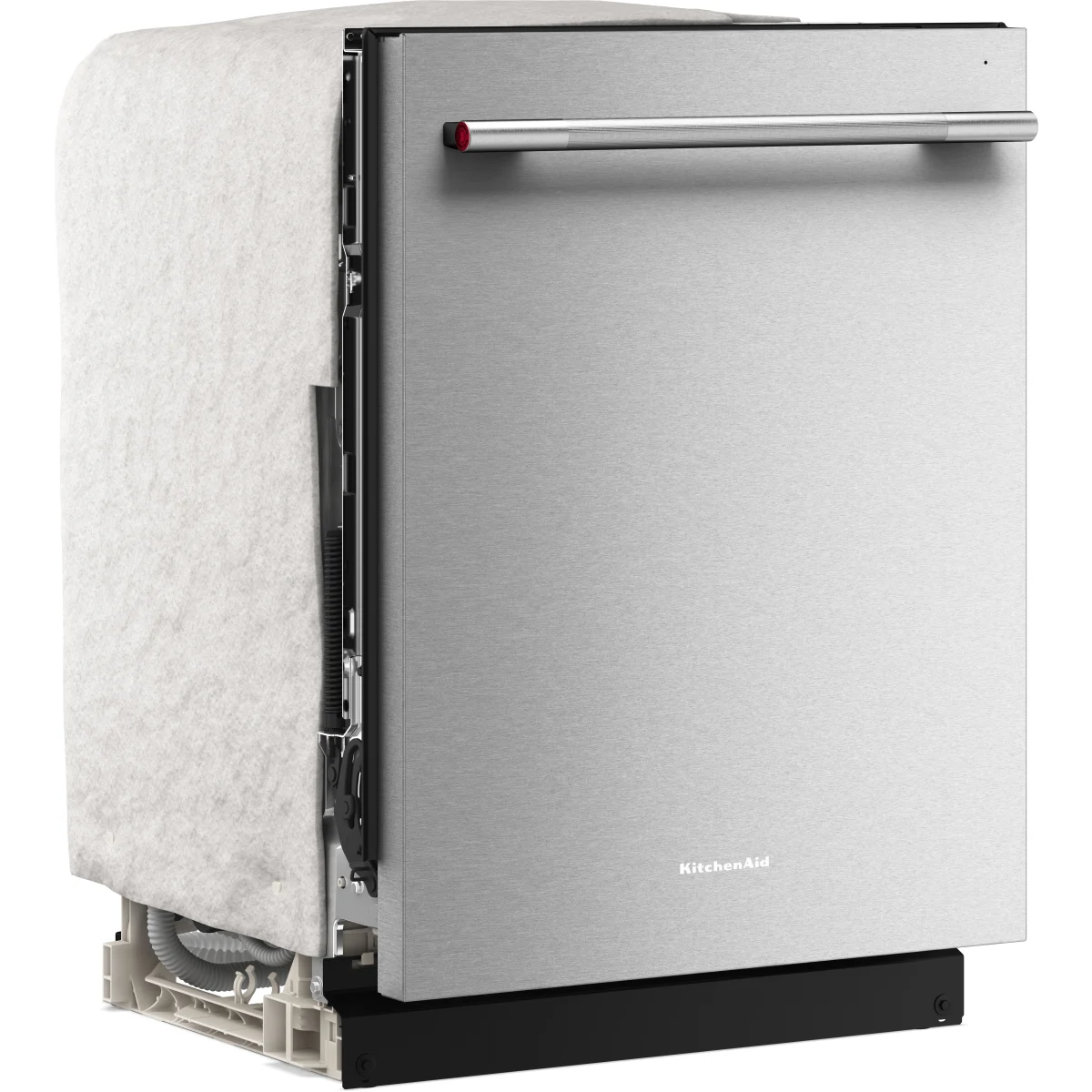

The KitchenAid KDTS224SPS is a 24-inch-class built-in dishwasher with a PrintShield™ stainless finish, a towel-bar handle and hidden top controls. Its 47 dBA sound rating and third utensil rack suit everyday kitchen cleanup.
Cleaning and loading
- 30+ total wash jets: Direct water throughout the dishwasher.

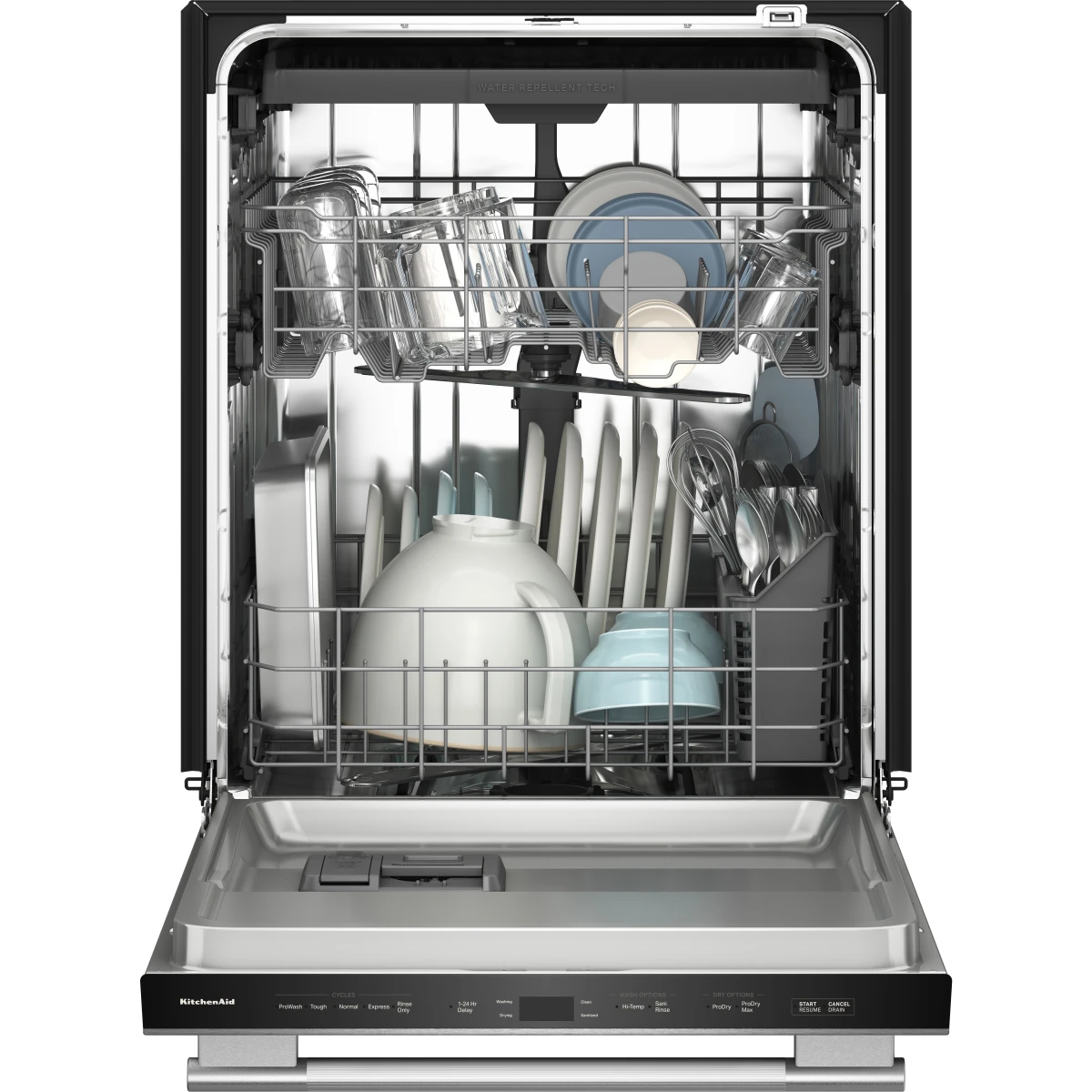

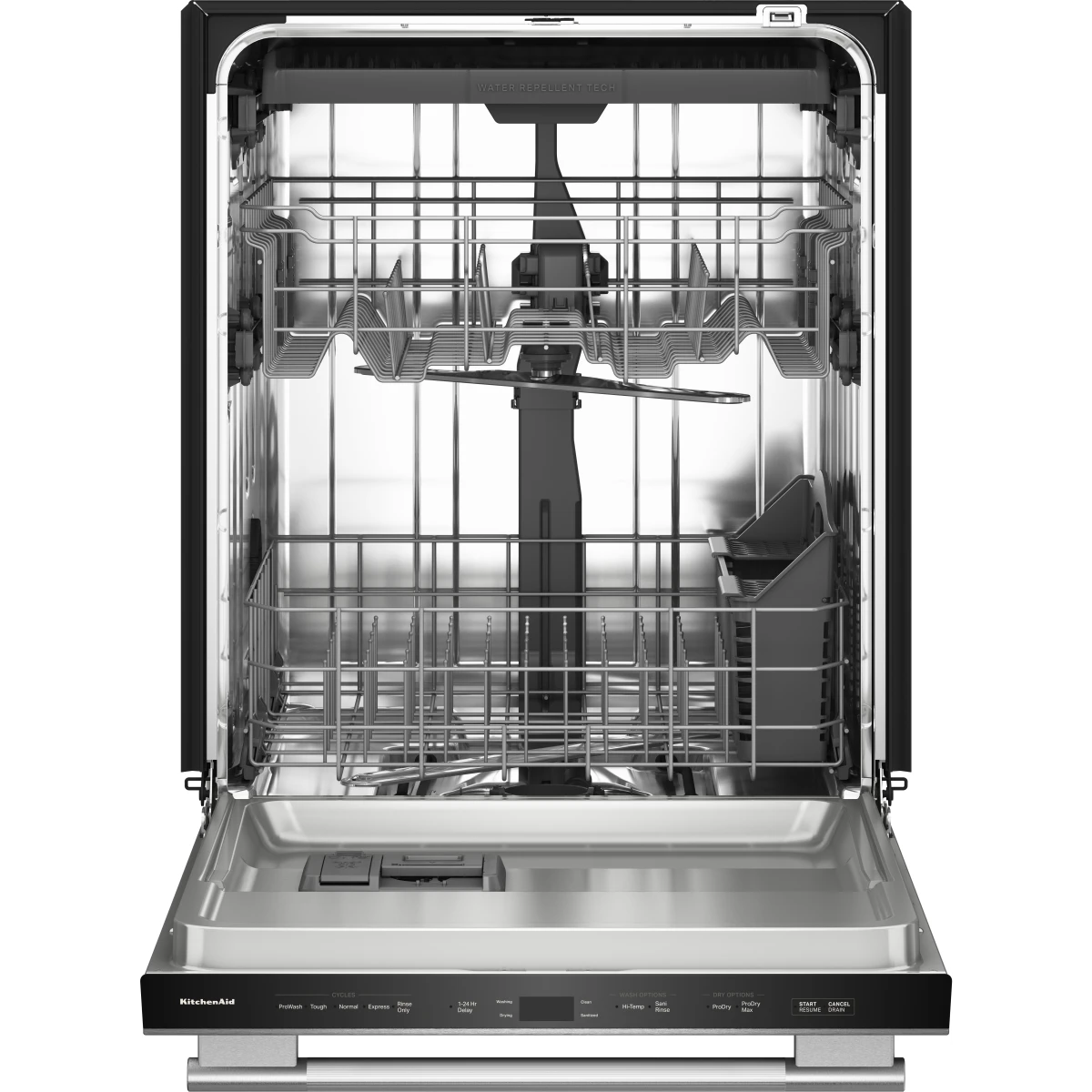

- Third Level Utensil Rack: A shallow Third Level Utensil Rack creates a separate space for flatware, spatulas and serving tools. Water Repellent Tech on the third rack and silverware basket helps water roll off. The middle rack has a fixed height.

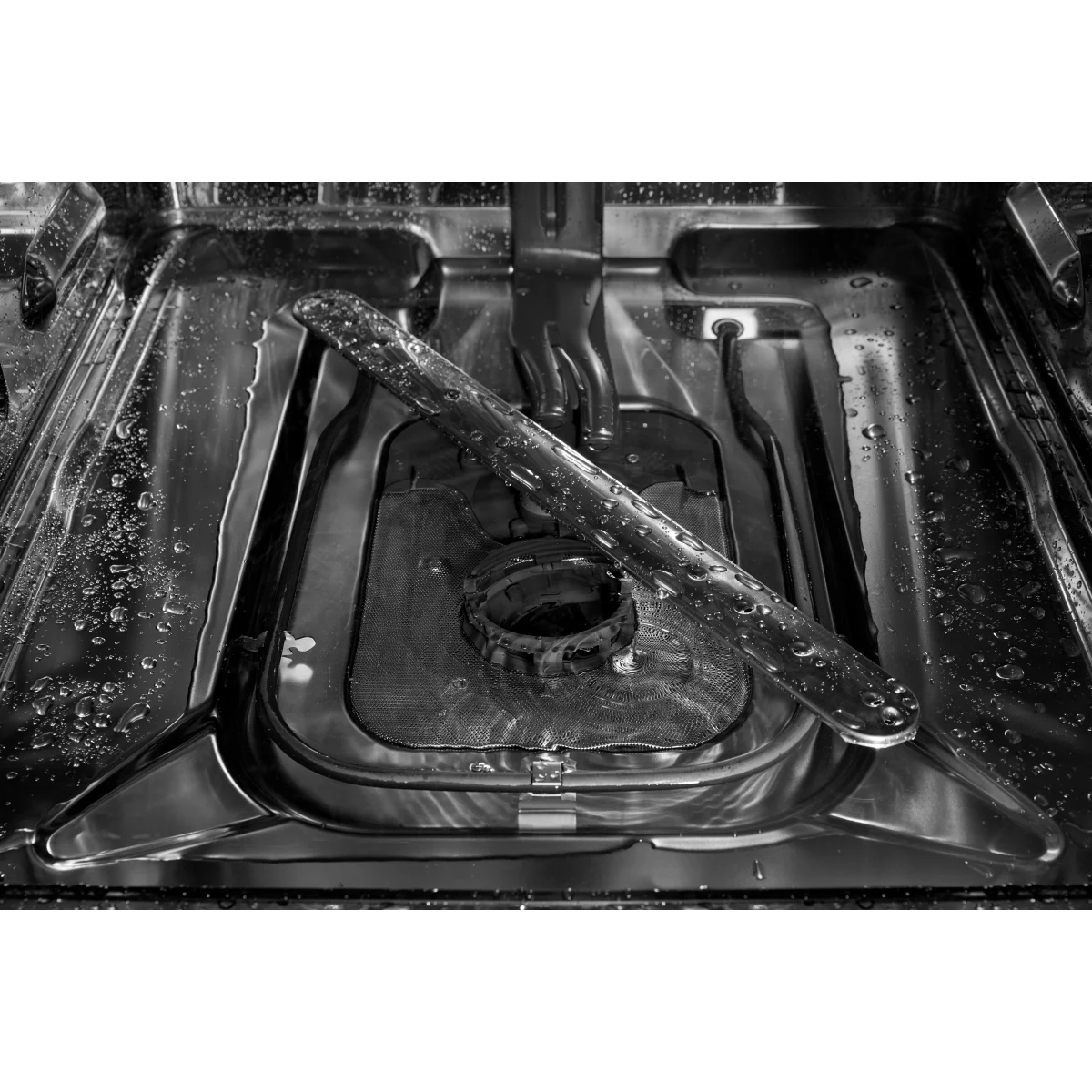

- Filtration: Triple Filtration captures food particles during washing and rinsing.
- ProWash™ cycle: Soil sensing adjusts washing time and water temperature for the load.
- Stainless steel interior: A durable tub designed to retain heat during drying.
Wash cycles and drying
Choose ProWash, Tough, Normal, Express Wash or Rinse Only. Rinse Only is for items waiting for a later wash and does not use detergent. High Temp helps with baked-on food. Sani Rinse provides NSF/ANSI 184 sanitizing with compatible Tough, ProWash and Normal cycles.
ProDry™ adds heat for drying, and ProDry™ Max provides additional drying time. The Automatic Door Open Dry System opens the door approximately 4 inches after drying to release moisture. This setting can be enabled or disabled as described in the owner’s manual. Cycle length varies with soil, incoming water temperature and selected options; Express is not a fixed wash-and-dry completion guarantee.
Controls and finish

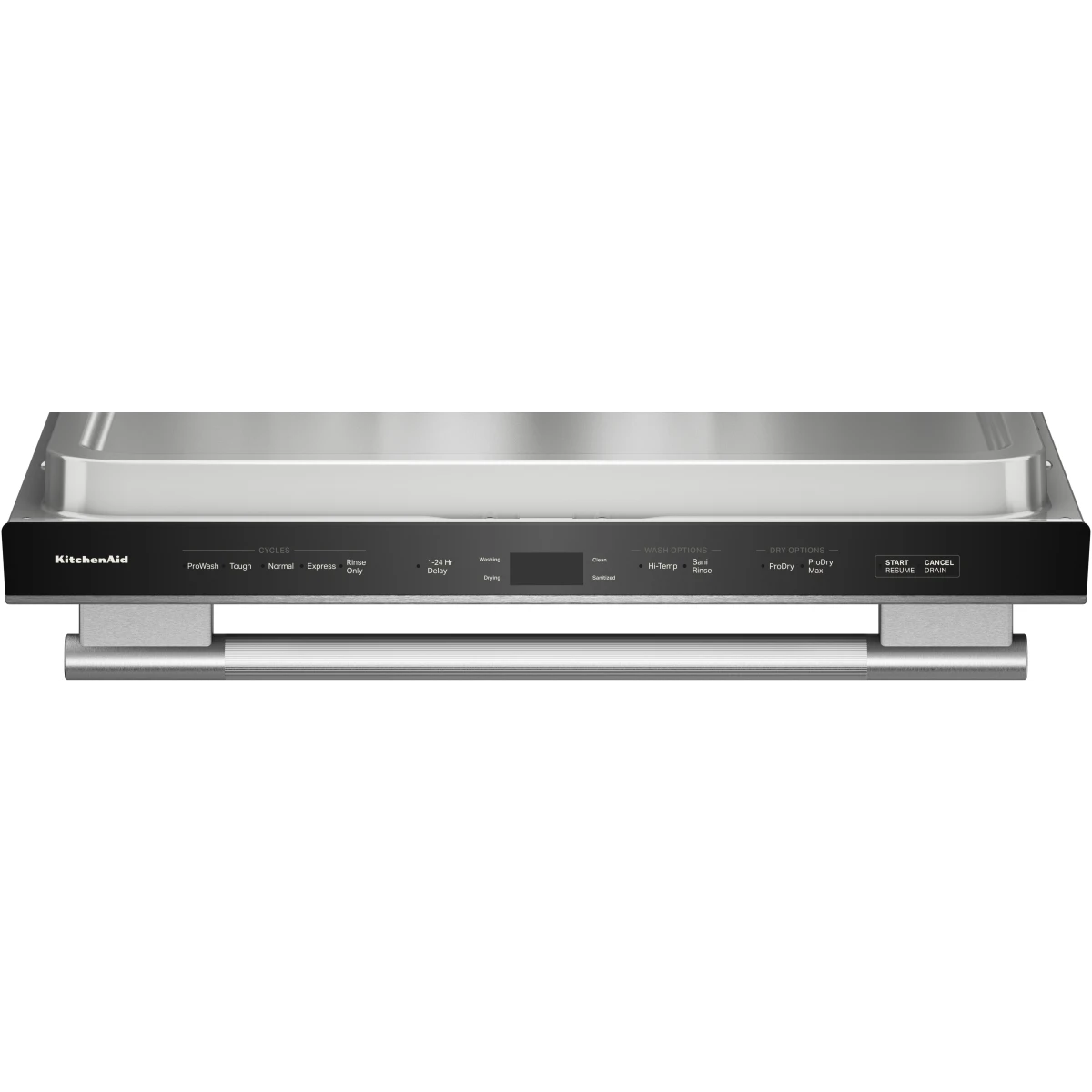

Top tap-touch controls include a display, delay start and a multicolor status indicator. PrintShield™ stainless resists fingerprints and smudges and can be cleaned with water and a soft cloth. This model does not offer Wi-Fi connectivity.
The Leak Identification System uses a drip tray and can stop filling, drain the tub and alert you when certain leaks are detected. It does not detect leaks at inlet or drain connections and hoses, or leaks caused by cracked tubs or doors.
Key specifications
| Model | KDTS224SPS |
|---|---|
| Finish | PrintShield Stainless |
| Type / controls | 24-inch-class built-in / top controls |
| Sound rating | 47 dBA |
| Racks / wash cycles | 3 racks / 5 cycles |

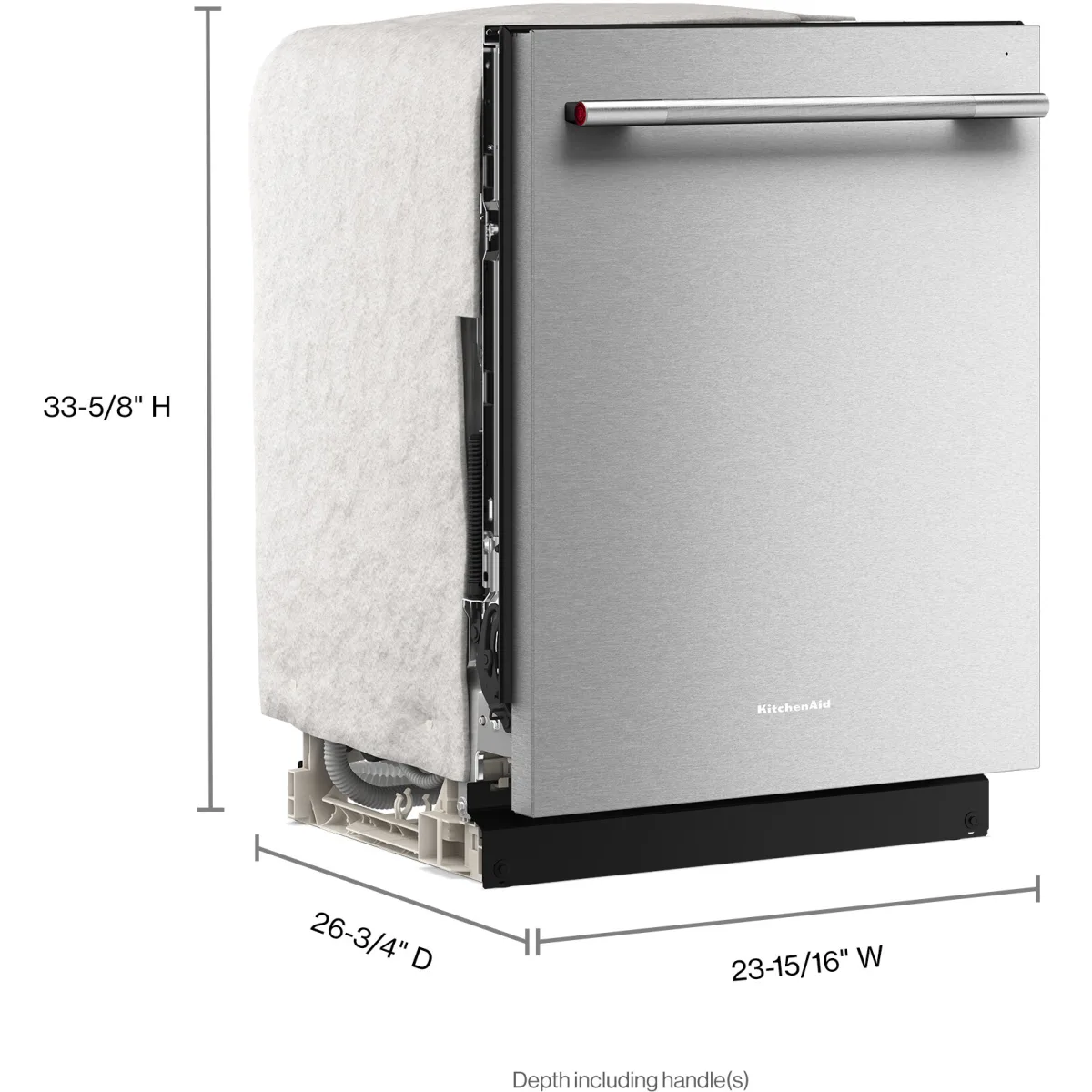

| Appliance width | 23 15/16 inches |
| Minimum appliance height | 33 5/8 inches |
| Depth excluding handle | 24 1/2 inches |
| Energy certification | ENERGY STAR® certified |
| Estimated yearly electricity use | 240 kWh; actual use varies |
| Power cord | Not included |
Installation planning
Plan for a cabinet opening 24 inches wide and 24 inches deep. KitchenAid’s exact-model specifications list a 34 1/2-inch cutout height; the installation drawing allows a 33 5/8-inch minimum only with its specified foot and insulation changes. Corner installations need at least 2 inches between the door side and adjacent wall or cabinet. Have the installer verify the opening, handle clearance, open-door space and utility routing using the complete drawings before installation.
The installation instructions call for a 120 V, 60 Hz AC supply with a 15 A or 20 A fuse or circuit breaker, plus 120°F hot water at 20–120 psi. A drain hose is included. Follow the manufacturer’s drain routing and air-gap requirements; electrical connection parts and the water supply connection must suit the installation.
