KitchenAid Counter-Depth French Door Refrigerator with Internal Water Dispenser in Juniper

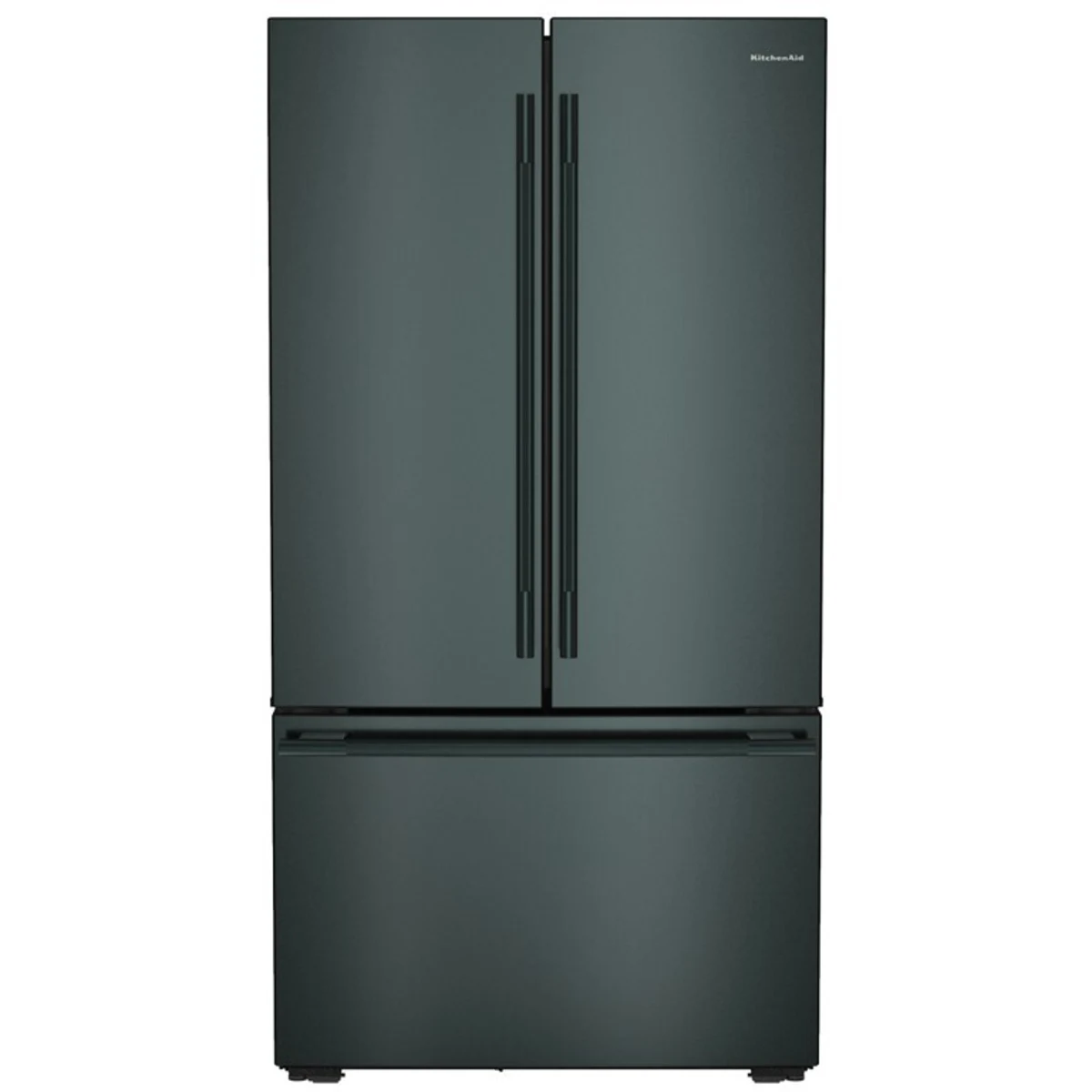

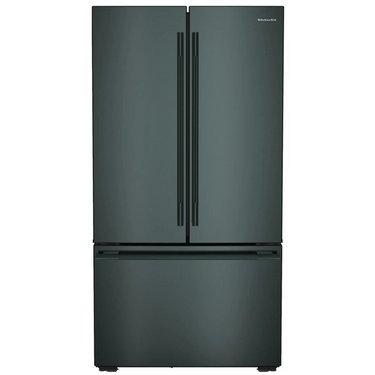

KitchenAid Counter-Depth French Door Refrigerator in Juniper

Model KRFC236SJP combines a Juniper exterior, interior water dispensing and a bottom-freezer layout. Its counter-depth cabinet, platinum-colored interior, wood-look accents and specialized storage drawers create an organized home for fresh ingredients.

Cooling, storage and convenience

• Preserva® cooling: A single evaporator and temperature sensors regulate airflow between the refrigerator and freezer.
• FreshChill™ pantry: The full-width drawer offers wine, deli, drink and meat temperature presets.
• FreshSeal™ crispers: Gasketed bins help retain humidity around produce.

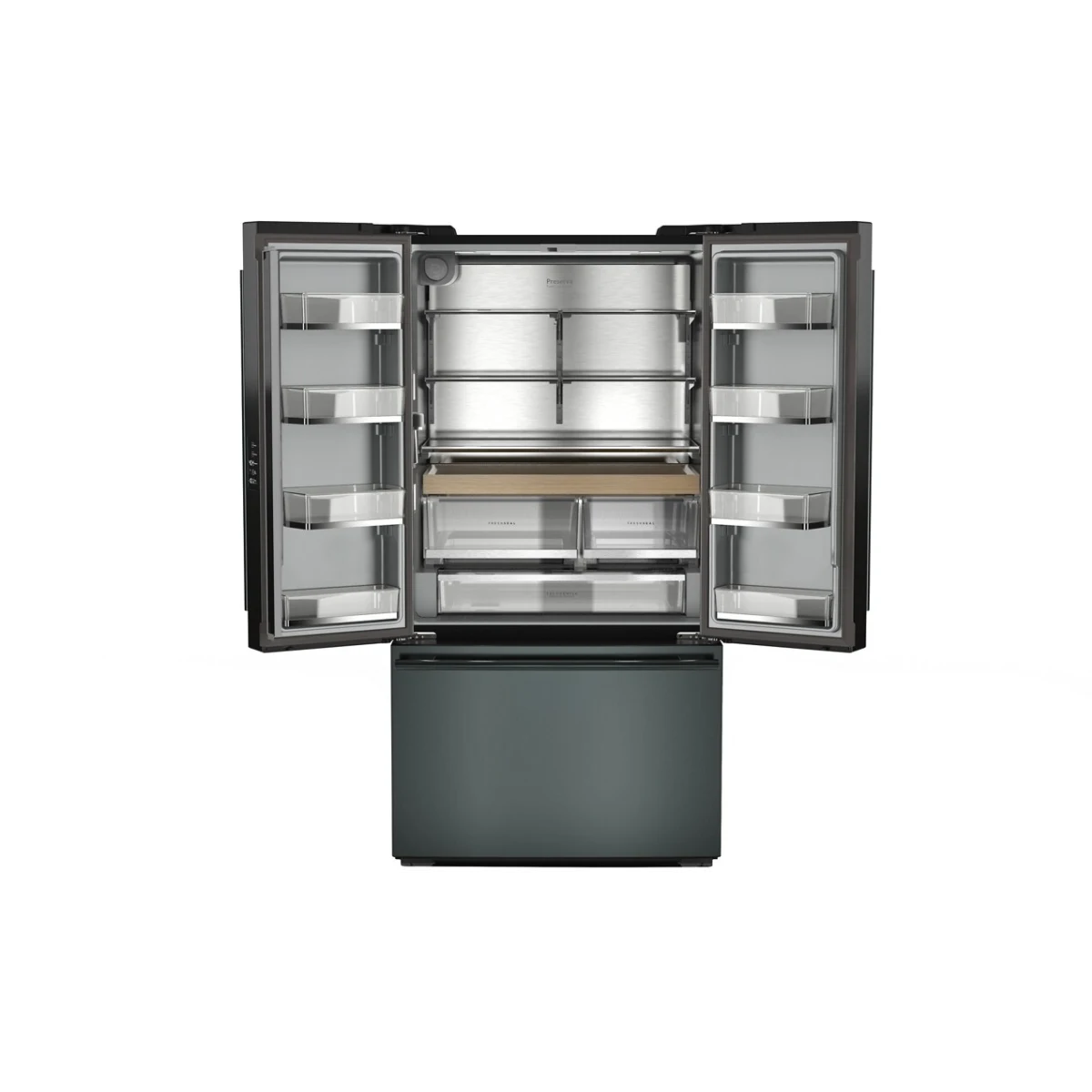

• Flexible shelving: Adjustable glass shelves and a sliding wood-look tray accommodate everyday containers and serving dishes.
• Interior water dispenser: Filtered water is available inside, leaving the exterior free of a dispenser opening.
• Freezer organization: Two tiers, an adjustable divider, a pizza pocket and a flat-item shelf help separate frozen foods.
• Factory-installed ice maker: Located in the freezer, with cubed-ice storage.
• Everyday controls: LED lighting, Max Cool, Max Freeze, control lock and a door-open alarm support daily use.
• Personalization: Compatible optional handle kits are sold separately.

Model specifications

• Model: KRFC236SJP
• Configuration: freestanding, counter-depth French door with bottom freezer
• Finish: Juniper; this model is not rated fingerprint resistant
• Total capacity: 24.3 cu. ft., as specified in the current manufacturer technical specifications and model-associated EnergyGuide
• Water filtration: everydrop® filter EDRARXD1
• ENERGY STAR® qualified; Sabbath mode and Star-K certification
• Manufacturer-listed ADA compliance: Yes; installation must meet applicable accessibility requirements

Fit and installation

Confirm the exact unit's fit before ordering. KitchenAid's current dimension illustration, specifications and installation documents contain differing height, depth and cutout measurements. Review the linked documents with your installer and verify the actual unit against the opening, delivery route and required door swing. Counter-depth refers to the cabinet; the doors and handles still project.

The full refrigerator owner's manual begins installation instructions on page 9 and includes location, electrical, water-connection and door-removal guidance. It requires a grounded 115V, 60Hz supply on a 15A or 20A circuit. Provide a potable cold-water connection, ventilation space and room for doors and drawers to move freely. Have a qualified installer confirm the water-supply requirements because the linked manual and dimension guide publish different pressure ranges.

Manufacturer warranty

The limited warranty provides one-year parts-and-labor coverage and specified sealed-system parts-and-labor coverage in years two through five, subject to eligibility, conditions and exclusions. Review the full warranty for service requirements and proof-of-purchase details.

Manufacturer documents

• Manufacturer dimension guide
• Complete refrigerator owner's manual and installation instructions
• Quick start and control guide
• Correct model-associated EnergyGuide
• Complete limited warranty
