Monessen Natural Blaze 27 See-Through Gas Log Set

Model: NBST27NV-C / NBST27PV-C with NBST27-F

Starting at

$1,788.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Monessen

About this model

Natural Blaze 27 creates a fire that can be viewed from either side of a see-through fireplace. Its hand-painted log arrangement presents a finished wood-stack appearance from both rooms, with a millivolt gas burner and adjustable flames.

The quote specifies the burner and required separately packaged NBST27-F logs.

Specifications
Model identity
NBST27NV-C / NBST27PV-C with NBST27-F
Nominal log size
27 in
Fuel / control
Factory natural gas or propane; millivolt standing pilot
Natural gas input
26,000–39,000 BTU/h
Propane input
30,000–39,000 BTU/h
Burner weight
36 lb; separately packaged logs excluded
Minimum fireplace opening W × D × H
32 × 19 × 21.5 in before restrictive-barrier adjustment
Gas supply pressure
Natural gas 5–10 in w.c.; propane 11–13 in w.c.
Manifold pressure
Natural gas 3.5 in w.c.; propane 10 in w.c.
Manuals and documents
Standard features

The manufacturer markets this 27-inch log-and-burner system with the Natural Blaze burner as standard. The burner and mandatory NBST27-F decorative logs are separately packaged; the quote must identify both components.

Two-sided log design; standing-pilot millivolt control with pilot ignition and flame adjustment. Burner package includes grates, on/off switch and harness, anchoring hardware, flexible-line fittings and the specified lava-rock and rock-wool materials.

Required components

Specify factory natural-gas NBST27NV-C or propane NBST27PV-C and the required NBST27-F log package. No IPI model is listed for this current see-through burner.

A compatible see-through fireplace or listed vent-free enclosure, correct gas supply, adequate room air, all required clearances and qualified installation are separate project requirements.

For an approved vented installation, provide the manual's permanent damper opening and damper clamp; thermostatic operation is not permitted.

Optional features and accessories

Optional millivolt controls: RCB battery remote, TSST touchscreen thermostat, TS temperature sensor and RRCM insulated receiver cover. Thermostatic use is limited to approved vent-free installations.

Optional variable-flame kits: HILOKTN for natural gas or HILOKTP for propane. VR1000A volcanic rock and the 28–48 inch adjustable flat-black CABL hood are listed accessories. A hood may become required by the selected mantel-clearance arrangement.

Features & options

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Required fuel configuration

(required)

Other selections

  • Natural gas — NBST27NV-C with NBST27-F logs
  • Propane — NBST27PV-C with NBST27-F logs

Select the factory gas type; a compatible enclosure and qualified installation are separate.

Control preference

Hand-held On/Off with battery receiver and wall cover plates manufacturer accessory illustration
Hand-held On/Off with battery receiver and wall cover plates Optional

Optional control accessory; final item and installation must match the current millivolt burner.

Remote LCD Touch screen manufacturer accessory illustration
Remote LCD Touch screen Optional

Optional control accessory; final item and installation must match the current millivolt burner.

Remote receiver cover, insulated metal manufacturer accessory illustration
Remote receiver cover, insulated metal Optional

Optional control accessory; final item and installation must match the current millivolt burner.

Other selections

  • Standard millivolt control
  • Wall switch
  • HILOKTN variable flame — natural gas
  • HILOKTP variable flame — propane
  • TS thermostat sensor

Additional control accessories are separately selected. Confirm compatibility and placement for the installation.

Installation accessory review

Other selections

  • No additional accessory
  • CABL adjustable hood
  • VR1000A volcanic rock
  • Required damper clamp for vented installation

Some accessories become required by the approved installation or mantel clearance.

Required two-sided log design

(required)

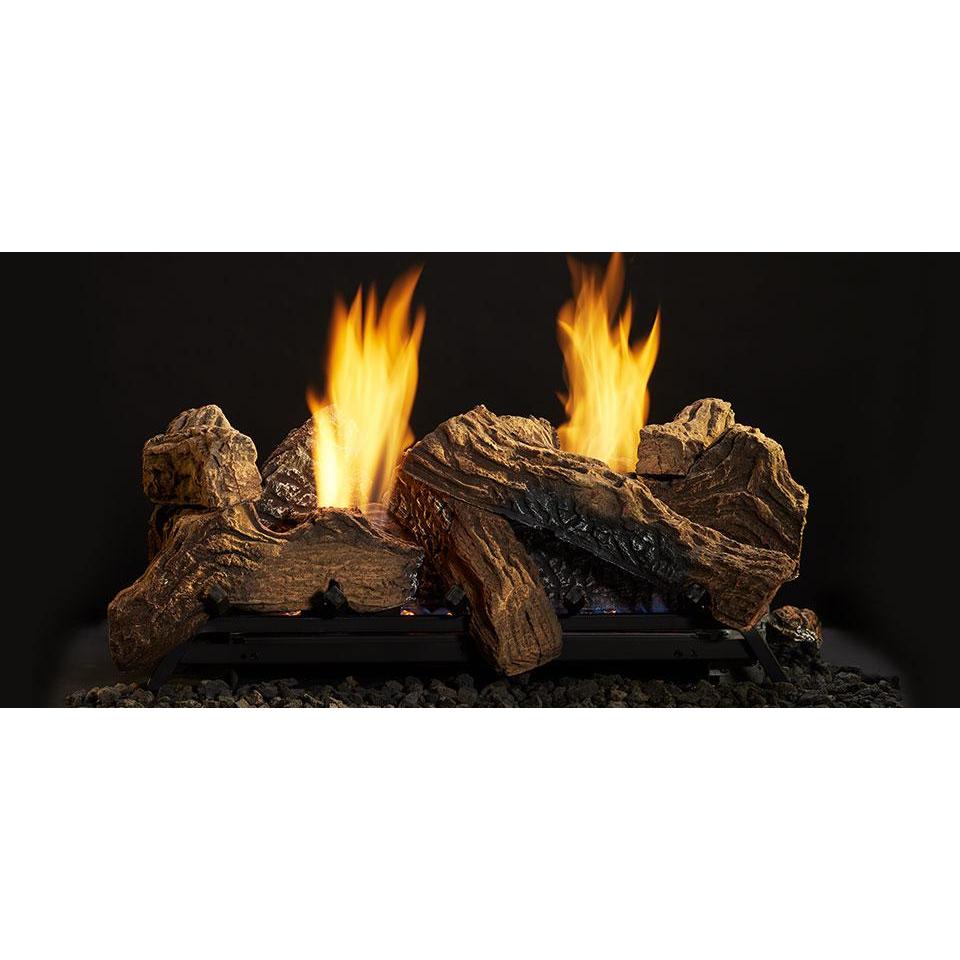

Natural Blaze 27 two-sided log arrangement
Natural Blaze see-through logs

Required separately packaged log set; quote includes the compatible burner and logs.

Technical notes

This is supplemental room heat, not a primary heating system. Vent-free operation consumes room air; installation requires a room-air assessment and compliance with the rules for the project location.

Do not install in a bedroom or bathroom. Operate any fireplace glass doors fully open. Maintain required separation from curtains, furniture and other combustibles; the full installation manual controls over abbreviated website dimensions.

Factory gas type must match the rating plate. The installer must verify supply/manifold pressures, pilot performance and the prescribed media or log positions.

Minimum opening is 32 W × 19 D × 21.5 H inches. A front barrier up to 3 inches raises required depth to 24 inches; barriers above 3 inches are not recommended.

Manufacturer imagery may show a different size, separate fireplace enclosure, liner, trim or optional controls. These surroundings are not included with the burner or log package.

Installation, gas piping, materials, venting where applicable, finishing, delivery, optional accessories and tax are separate.
