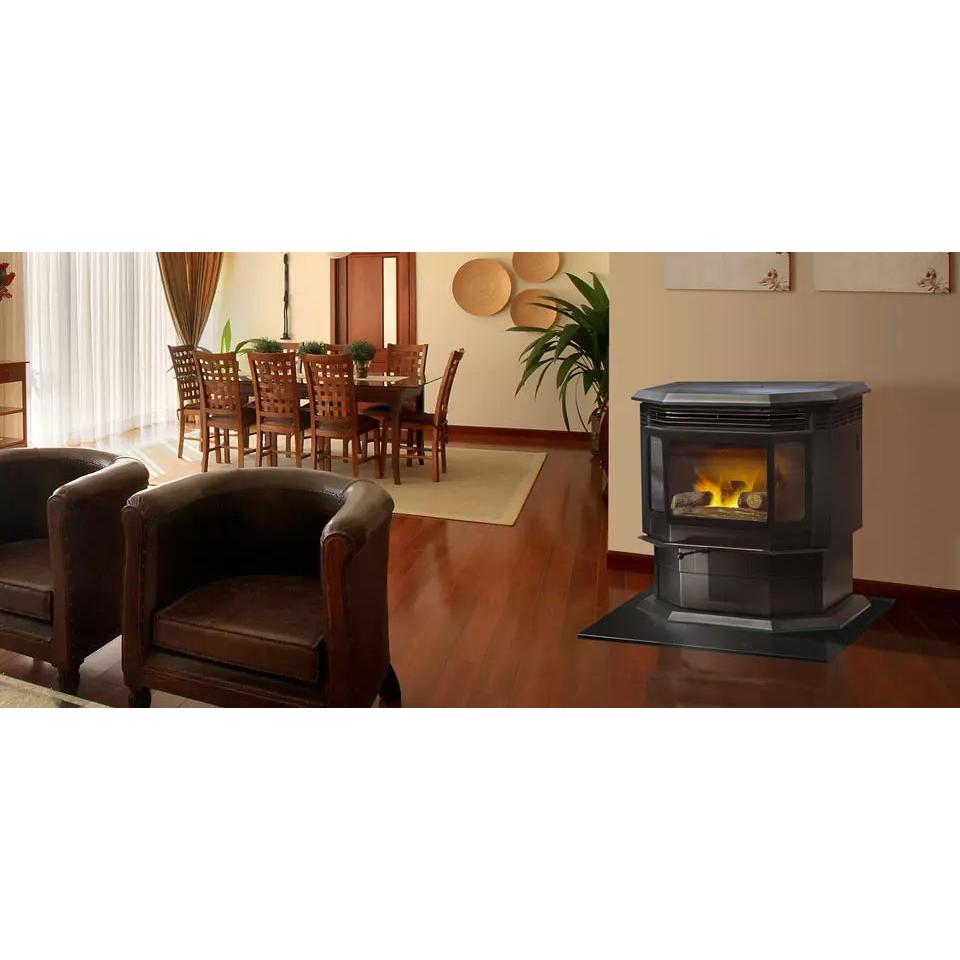

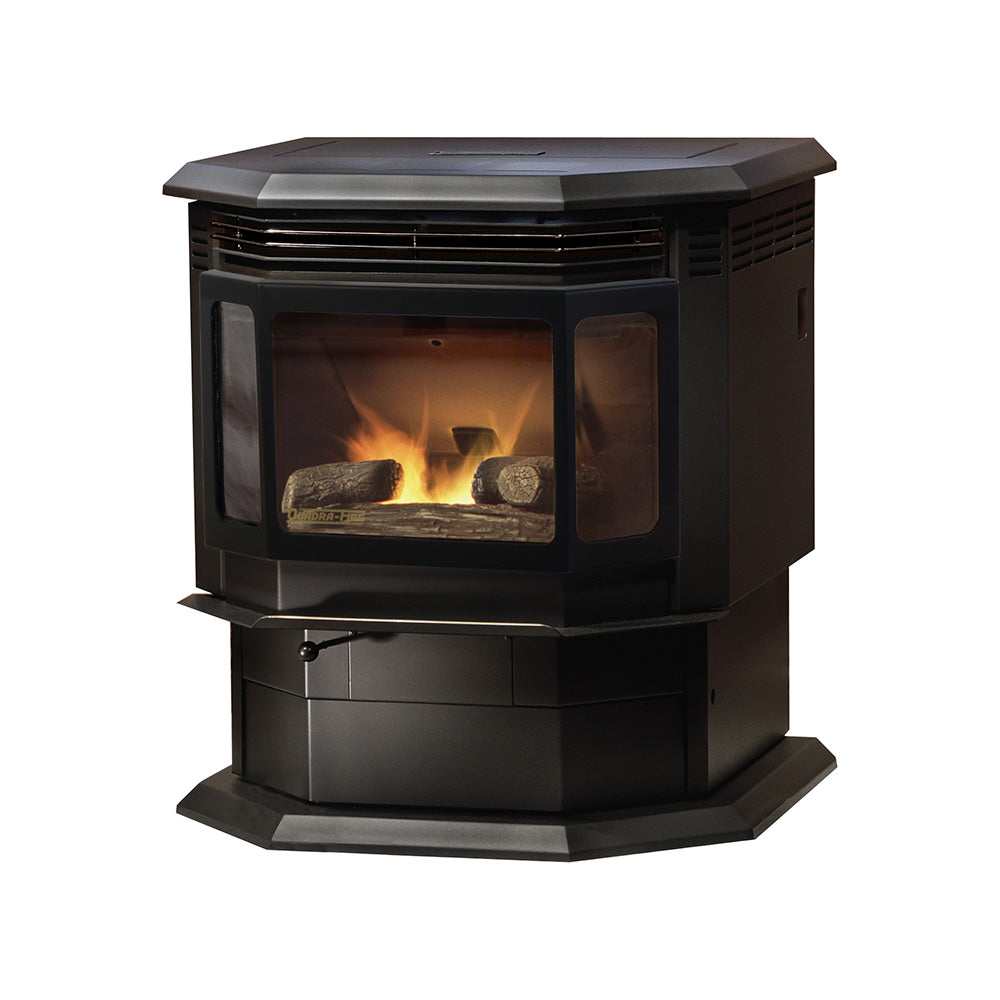

Quadra-Fire Classic Bay 1200 pellet stove; pictured venting, accessories and room finishes may be separate Quadra-Fire Classic Bay 1200 pellet stove; pictured venting, accessories and room finishes may be separate

Manufacturer photography may show optional finishes and accessories.

Quadra-Fire

Quadra-Fire Classic Bay 1200 Pellet Stove

Model: Classic Bay 1200 / CB1200-C

Starting at

$4,089.00 USD

Manufacturer product-only starting estimate; configuration and accessories may change the quote.

Product only. Installation and materials are additional. Venting, finishing, optional accessories, delivery, and taxes are not included. Your complete project will be quoted separately.

Request a Quote

Selections are preferences for your quote. Compatibility, availability, and additional charges will be confirmed.

Quadra-Fire

About this model

The Classic Bay 1200 combines a bay-window design with an 80-pound hopper, automatic ignition, patented pellet feed system and an easy-clean firepot. Its standard programmable wall thermostat manages temperature.

Review included controls, compatible optional accessories, technical specifications and current manufacturer manuals below. Request a quote for the stove and your installation.

Specifications
Manufacturer model
CB1200-C
Fuel
Wood pellets
Width
28-1/2 in
Height
31-5/8 in
Depth
27-5/8 in
Hopper capacity
80 lb
Input
15,900–41,100 BTU/hr
Heating area
1,000–2,700 sq ft
Viewing area
153 sq in
Efficiency
78% LHV / 73% HHV
Emissions
1.1 g/hr in specification table; overview rounds to 1 g/hr
Manuals and documents
Standard features

The Classic Bay 1200 combines a bay-window design with an 80-pound hopper, automatic ignition, patented pellet feed system and an easy-clean firepot. Its standard programmable wall thermostat manages temperature.

Classic Black finish and the standard controls described above are included.

Required components

A compatible pellet vent system and termination, grounded electrical supply, floor protection and the specified clearances are required. Installation, delivery, venting, materials and tax are separate.

Outside combustion air and mobile-home requirements must follow the exact model manual and site conditions. The installer must select and verify the full vent arrangement.

Optional features and accessories

Optional Smart Stat wireless thermostat. TPVNT-1 or TPVNT-6 vent adapters are available when appropriate for the installation.

A decorative log set is optional. It provides the appearance of logs; the stove still burns approved pellet fuel.

Battery-backup compatibility requires confirmation against the current manufacturer guidance before selecting third-party equipment.

Features & options

Features & options

Review available selections. Included equipment and any additional charges are confirmed on your quote.

Included features

Classic Bay 1200 — Programmable wall thermostat
Programmable wall thermostat Included

Manufacturer identifies this as the standard control.

Classic Bay 1200 — Classic Black finish
Classic Black finish Included

Manufacturer finish swatch.

Classic Bay 1200 — EPA certification
EPA certification Included

Emissions certification, not tax-credit eligibility.

Optional remote control

Classic Bay 1200 — Smart Stat wireless thermostat
Smart Stat wireless thermostat Optional

Optional wireless control; existing wired control is standard.

Venting adapter

Classic Bay 1200 — TPVNT-6
TPVNT-6 Optional

Manufacturer generic illustration of vertical adapter with cleanout.

Classic Bay 1200 — TPVNT-1
TPVNT-1 Optional

Vertically centering adapter with heat shield and cleanout.

Installer selects the compatible vent arrangement; adapters and venting are separately charged.

Installation assessment

(required)

Other selections

  • New installation
  • Replace existing pellet stove

Venting, electrical supply, floor protection and required outside air must be assessed.

Optional decorative logs

Classic Bay 1200 — Log set
Log set Optional

Decorative pellet-stove log set; not wood fuel.

Technical notes

Input ratings are based on feed rate and pellet energy content. Heating area is a guideline affected by climate, insulation, layout and airflow. LHV and HHV efficiencies are weighted averages under emissions testing; neither establishes a configured project price.

Follow the current manual's installation and clearance drawings. Adapter choice can change the installation envelope. Images may show optional accessories and separately constructed surroundings.

The manufacturer's overview rounds emissions to 1 g/hr; its specifications state 1.1 g/hr, retained here.
