Samsung 24-Built-in Tall Tub Smart 46 dBA Dishwasher in Stainless Steel w/StormWash & AutoRelease Door

Samsung DW80CG5450SRAA: Smart 46 dBA Dishwasher in Fingerprint Resistant Stainless Steel

This 24-inch-class built-in Samsung dishwasher combines a Fingerprint Resistant Stainless Steel exterior, recessed handle and 46 dBA sound rating with a stainless steel interior, 15-place-setting capacity and three racks. StormWash cleaning and AutoRelease Door Dry support everyday cleanup.

Features

• StormWash™ cleaning: A dedicated lower-rack spray zone helps clean heavily soiled cookware. Place suitable items in the indicated spray area and follow loading instructions.
• AutoRelease™ Door Dry: The door opens automatically near the end of the cycle to let steam escape and circulate air. The feature can be enabled or disabled; rinse aid, loading and the items washed affect drying results.

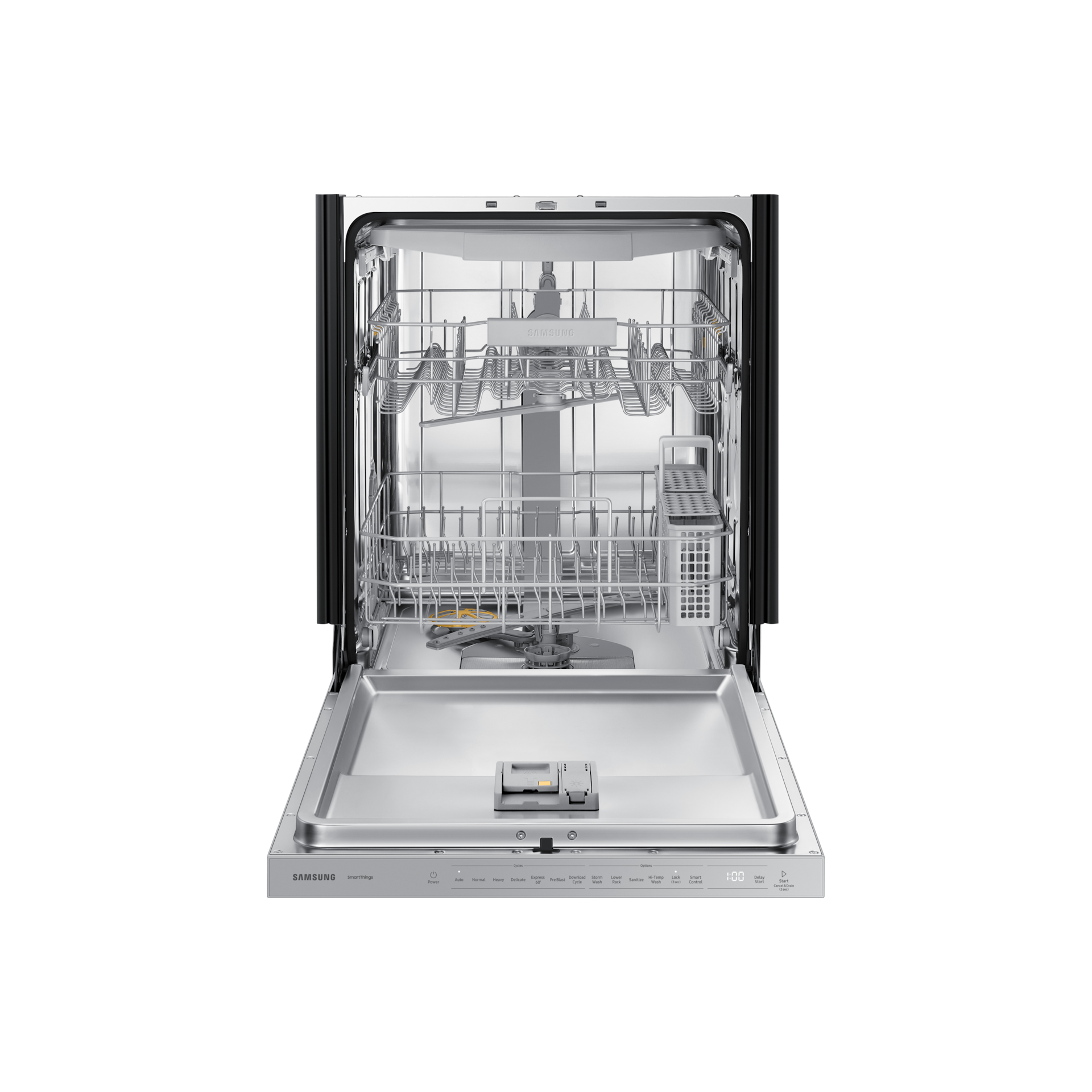

• Third rack: A separate top tray holds cutlery and smaller utensils, leaving more space in the two main racks.
• Flexible loading: The one-touch adjustable upper rack and foldable cup shelves help accommodate different dish and glass sizes.
• SmartThings connectivity: Built-in Wi-Fi lets you monitor and control supported functions through the SmartThings app. A compatible device, network connection and Samsung account are required.
• Sanitize and Hi-Temp Wash: Selectable wash options suit different loads. NSF sanitizing certification applies to the Normal cycle with Sanitize under the manufacturer’s stated conditions.
• Convenient controls: Hidden top touch controls, a recessed pocket handle, control lock and delay start keep daily operation straightforward.
• Digital leak sensor: A sensor monitors for leaks and reports a detected condition. Correct installation and regular maintenance are still required.

Specifications

Installation and Planning

The full installation manual identifies the DW80CG5450 family and calls for a cabinet opening at least 24 inches wide, 24 inches deep and 34 1/8 inches high; its opening drawing shows a 34 1/8- to 35 1/3-inch height range. A countertop at least 25 inches deep is required for the dishwasher door to align with its leading edge. Follow the complete drawing for the rear service space, electrical wiring, hot-water supply, drain routing, leveling and securing the unit. Published gallery and specification measurements vary, so confirm the actual unit and finished opening with your installer before purchase. These are planning references, not a fit guarantee.

Manufacturer Manuals and Resources

• Complete Installation Guide (PDF)
• Complete Owner / Use and Care Manual (PDF)
• Manufacturer Specification Sheet (PDF)
